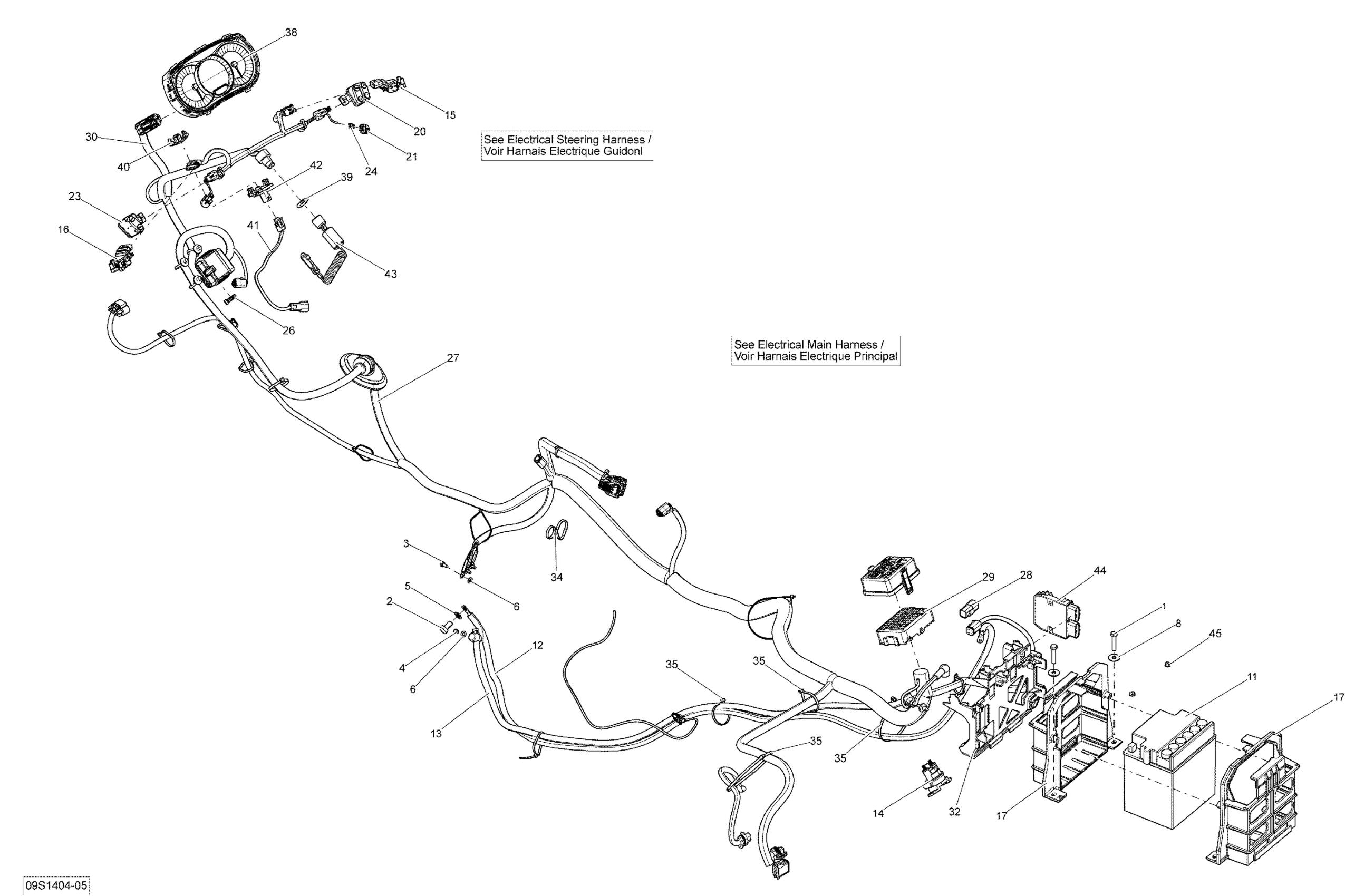

Sea-doo RXT-X aS 260 & RS. 2014 Electrical System _09S1405 Diagram

#

Description
Price

1

Hex. Screw M8 X 40

207184060

$2.22

2

Hex. Screw M10 X 20, Scotch Grip

207302060

$4.02

3

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

4

Elastic Stop Nut M6, Brass

232561200

$4.23

5

Flat Washer 10 mm, Stainless

234000600

$1.46

6

Stainless Flat Washer M6

234061600

$0.33

8

Flat Washer 8 mm, Stainless

234082600

$2.43

11

Battery, 30 Amperes

278001882

$184.01

12

Battery Ground Cable

278003269

$41.49

13

Cable-Starter

278003398

$63.99

14

Starter Relay

278003012

$42.49

15

Throttle Position Sensor

278002283

$119.99

16

LH Throttle Sensor

278002284

$119.99

17

Battery Support

278003306

$20.99

20

Switch RH Mode/Set

278002602

$126.99

21

Switch Start/Stop This part replaces 278002676.

278002676

Unavailable

23

Switch LH VTS/Sport/Eco | Package STD

278002767

$126.99

24

Not Available As Spare Parts

XXX

Unavailable

26

Clip (double dart)

278002910

$11.12

27

Main Wiring Harness | Includes 101 To 2057

278002940

$809.99

28

Diagnostic Connector

278002704

$19.49

30

Steering Harness Ass'y | Includes 1 to 2055

278002951

$459.99

32

Support

278003048

$21.99

34

Tie Rap 300mm

293750053

$2.11

35

Tie-Rap 180 mm

414115200

$0.11

35

Tie Wrap 368 mm

293750008

$1.04

35

Tie Rap, 533 mm

293750047

$2.09

38

LCD Gauge

278003382

$699.99

39

Safety Nut (DESS Switch)

278002963

$3.28

40

O.T.A.S Actuator

278003537

$42.99

41

O.T.A.S. Sensor Ass'y

278003009

$109.99

42

O.T.A.S. Sensor

278003008

$109.99

43

Safety Lanyard, Antitheft

278002483

$58.49

43

Safety Lanyard, Learning Key

278002484

$56.99

44

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

45

Not Available As Spare Parts

XXX

Unavailable
