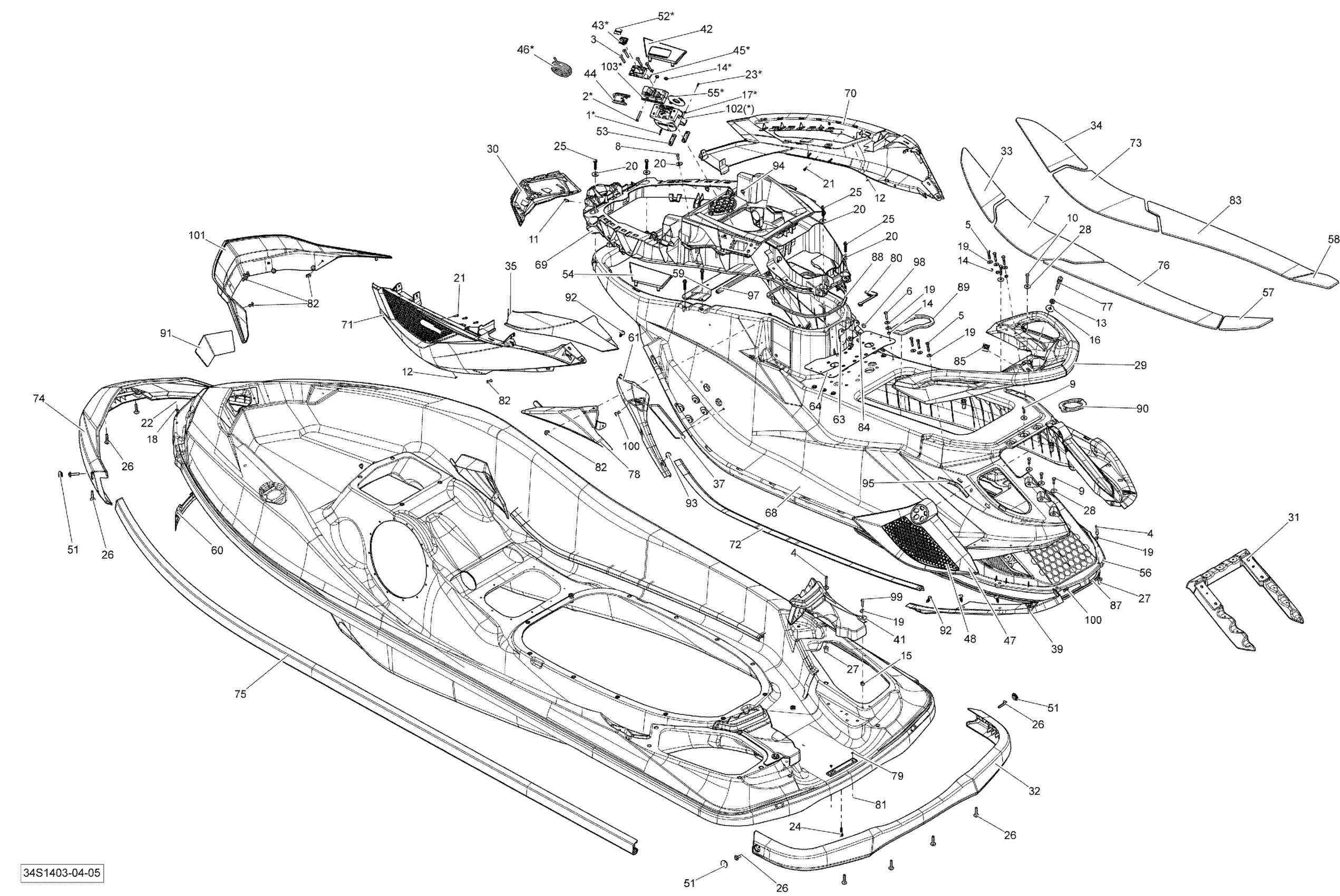

Sea-doo RXT-X aS 260 & RS. 2014 Body _34S1405 Diagram

#

Description
Price

1

Not Available As Spare Parts

XXX

Unavailable

2

Not Available As Spare Parts

XXX

Unavailable

3

Not Available As Spare Parts

XXX

Unavailable

4

Socket Head Screw M6 X 35

205463560

$2.00

5

Hex. Screw M6 X 30

207063060

$1.89

6

Hex. Screw M6 X 25

207162560

$1.47

7

LH CENTER FRONT CARPET - Call your local BRP dealership

291003463

Unavailable

8

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.15

9

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

10

Screw Hex. M6 X 35, Scotch Grip

207363560

$1.89

11

HEX. FORMING SCREW M6 X 16 - Call your local BRP dealership

211000106

Unavailable

12

Not Available As Spare Parts

XXX

Unavailable

13

Hex. Jam Nut M10

232100600

$2.22

14

Elastic Stop Nut M6, Brass

232561200

$4.23

16

Flat Washer 10 mm, Stainless

234002600

$2.22

17

Not Available As Spare Parts

XXX

Unavailable

18

Flat Washer 4 mm, Stainless

234042600

$1.15

19

Flat Washer M6, Stainless

234062600

$0.77

20

Flat Washer 8 mm, Stainless

234082600

$2.43

21

Hex. Flange Screw K40 X 16

241141660

$1.48

22

Hex. Flange Screw K40 X 25

241142560

$2.64

23

Not Available As Spare Parts

XXX

Unavailable

25

Plastite Hex. Screw M6.8 X 35

243163560

$4.44

26

Hexagonal Cap Screw M6 X35

250000399

$4.44

27

Expansion Nut M6 X 1

250100150

$2.11

28

Flat Washer M6.6 X 22

250200022

$2.72

29

Black, Rear Handle

291004621

$94.49

30

FRONT GRID - Call your local BRP dealership

269501797

$28.99

31

REAR PIVOT ASS'Y - Call your local BRP dealership

279000214

Unavailable

32

Rear Bumper

291004274

$121.49

33

ANTI SLIP MAT FL - Call your local BRP dealership

291002607

Unavailable

34

RH Front Carpet

291002608

$8.47

35

LH RED VIPER UPPER BODY CAP COVER - Call your local BRP dealership | Model Black/Red

291003944

Unavailable

35

RH VIPER RED UPPER BODY CAP COVER - Call your local BRP dealership | Model Black/Red

291003945

Unavailable

37

LH FOOTREST COVER - Call your local BRP dealership

291002694

Unavailable

37

RH FOOTREST COVER - Call your local BRP dealership

291002695

Unavailable

39

LH REAR SCRAPER JOINT - Call your local BRP dealership

291002696

Unavailable

39

RH REAR SCRAPER JOINT - Call your local BRP dealership

291002697

Unavailable

41

LH Rear Grille

291002658

$20.99

41

RH REAR GRILL - Call your local BRP dealership

291002698

$19.49

42

Not Available As Spare Parts

XXX

Unavailable

43

Not Available As Spare Parts

XXX

Unavailable

44

Not Available As Spare Parts

XXX

Unavailable

45

Not Available As Spare Parts

XXX

Unavailable

46

Not Available As Spare Parts

XXX

Unavailable

47

LH LATERAL REAR TRIM - Call your local BRP dealership

291002739

Unavailable

47

RH Lateral Rear Trim

291002741

$26.49

48

LH Rear Side Grille

291002740

$20.99

48

RH Rear Side Grille

291002742

$20.99

51

Bumber Cap | Except Cab Package

291002744

$14.49

52

Not Available As Spare Parts

XXX

Unavailable

53

Not Available As Spare Parts

XXX

Unavailable

54

Not Available As Spare Parts

XXX

Unavailable

55

Not Available As Spare Parts

XXX

Unavailable

56

DECK EXTENSION ASS'Y - Call your local BRP dealership

291002763

Unavailable

57

ANTI SLIP MAT REAR L - Call your local BRP dealership

291002775

Unavailable

58

ANTI SLIP MAT REAR R - Call your local BRP dealership

291002776

Unavailable

59

Module Stifner

291002778

$144.99

60

DECK NOSE - Call your local BRP dealership

291002818

$15.99

61

LH Front Scraper Joint

291002837

$27.99

61

RH FRONT SCRAPER JOINT - Call your local BRP dealership

291002838

Unavailable

63

SEAT PIVOT - Call your local BRP dealership

291002865

Unavailable

64

UPPER REINFORCEMENT - Call your local BRP dealership

291003305

$154.99

66

LOWER CENTRAL REINFORCEMENT - Call your local BRP dealership

291003306

Unavailable

68

Upper Body Ass'y

291003462

$2.00

69

Front Module

291004595

$279.99

70

FR RH MOULDING ASS'Y - Call your local BRP dealership

291003949

Unavailable

71

LH FRONT MOULDING ASS'Y - Call your local BRP dealership

291003948

Unavailable

72

MID JOINT - Call your local BRP dealership

291003818

Unavailable

73

RH CENTER FRONT CARPET - Call your local BRP dealership

291003464

Unavailable

74

Front Bumper

291004275

$78.49

75

Lateral Bumper

291003872

$148.49

76

LH CENTER REAR CARPET - Call your local BRP dealership

291003465

Unavailable

77

Seat Stud

291003878

$48.99

78

Not Available As Spare Parts

XXX

Unavailable

79

Black, Snap Cap

293000014

$1.09

80

CAP - Call your local BRP dealership

293000118

Unavailable

81

Rivet 1/8"

293150016

$0.40

82

Pop Rivet 3/16"

293150123

$4.29

83

RH CENTER REAR CARPET - Call your local BRP dealership

291003466

Unavailable

84

Pop Rivet 3/16

293150186

$2.09

85

Elastic Nut M10 Housing

271001732

$9.11

87

Lip Seal

293250185

$27.99

88

NEOPRENE SEAL - Call your local BRP dealership

293250200

Unavailable

89

LIP SEAL - Call your local BRP dealership

293250205

Unavailable

90

LIP SEAL - Call your local BRP dealership

293250209

Unavailable

91

GASKET - Call your local BRP dealership

293250231

Unavailable

92

Black, Dart

293730006

$0.99

93

Black Dart

293730010

$0.99

94

Rubber Bumper

293830005

$8.09

95

Gasket, Neoprene 2000Mm Long

219704476

$15.36

97

Was 271000110 Protection Trim

219704353

$15.99

98

Cap

572051500

$5.89

99

Hex Screw M6 X 30

250000681

$6.77

100

Pop Rivet 3/16

293150186

$2.09

101

Deflector

291004280

$84.99

102

Not Available As Spare Parts

XXX

Unavailable

103

Not Available As Spare Parts

XXX

Unavailable
