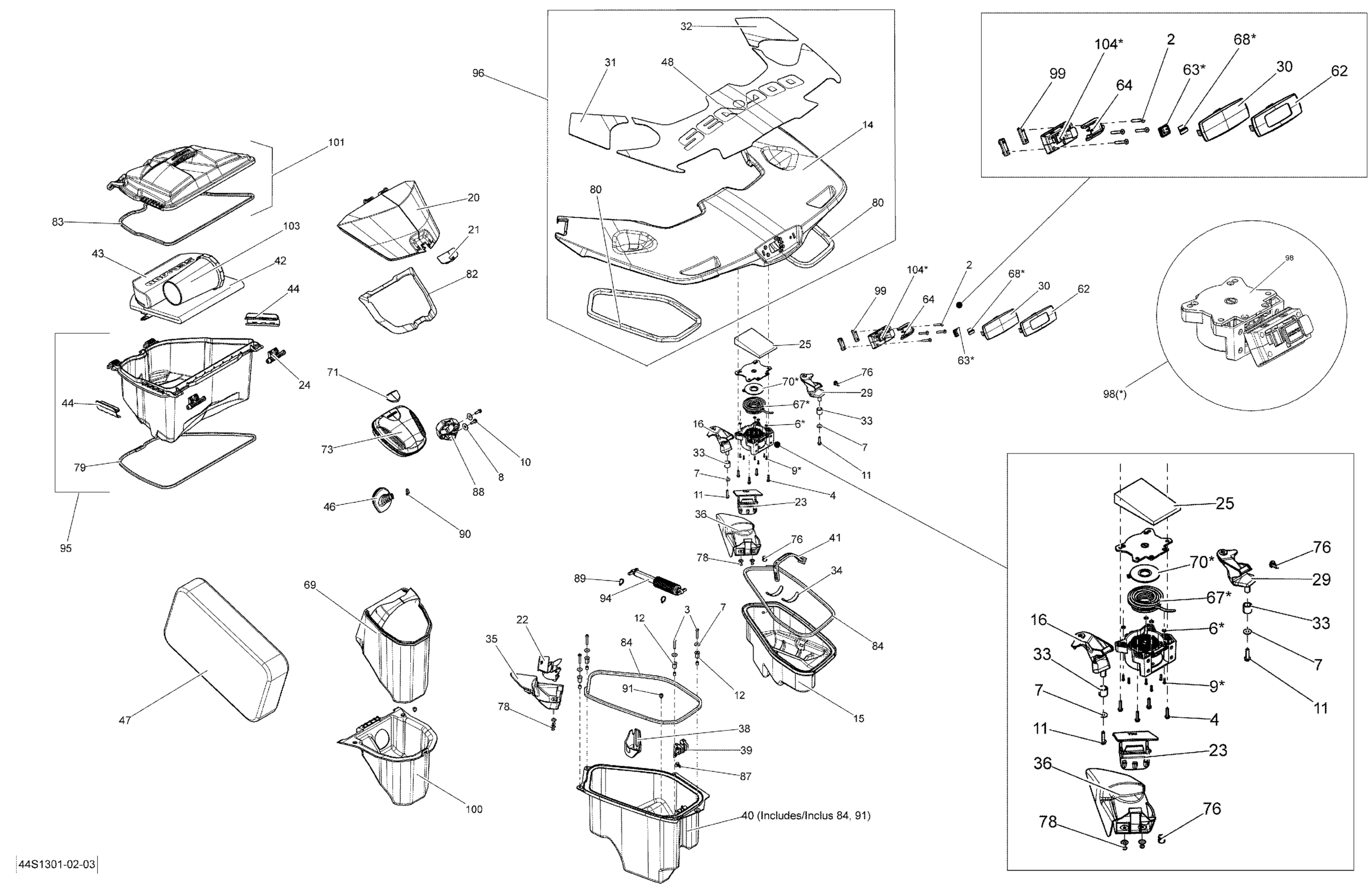

Sea-doo RXT-X aS 260 & RS. 2013 Storage Compartments Diagram

#

Description
Price

2

Not Available As Spare Parts

XXX

Unavailable

3

Socket Head Screw M6 X 35

205463560

$2.00

4

Not Available As Spare Parts

XXX

Unavailable

6

Flat Washer M3, Stainless

234032600

$0.55

7

Flat Washer M6, Stainless

234062600

$0.77

8

Flat Washer 8 mm, Stainless

234082600

$2.43

9

Oval Philipp Screw KA30 x 12

241731260

$1.05

10

Hex. Flange Screw M6.81 x 20

243162060

$3.72

11

Hex. Flange Screw M6.81 X 25, Plastite

243162560

$2.19

12

Expansion Nut M6 X 1

250100150

$2.11

14

Rear Platform Ass'y | Includes 50 to 50g

264000034

$319.99

15

RH Rear Tray

264000002

$35.99

16

LH PIVOT SUPPORT - Call your local BRP dealership

264000003

Unavailable

20

Glove Door, Tinted Black

264000076

$88.99

21

Black, Latch

264000164

$15.99

22

LH Latch

264000020

$30.99

23

RH Latch

264000021

$30.99

24

Latch

264000024

$19.99

25

Not Available As Spare Parts

XXX

Unavailable

29

RH PIVOT SUPPORT - Call your local BRP dealership

264000032

Unavailable

30

REAR REWIND CAP - Call your local BRP dealership | Model GTX 155

264000033

Unavailable

31

ANTI SLIP MAT_DECK FL - Call your local BRP dealership

264000040

$7.99

32

ANTI SLIP MAT_DECK FR - Call your local BRP dealership

264000041

$7.99

33

SPACER - Call your local BRP dealership

264000042

Unavailable

34

TRAY PAD - Call your local BRP dealership

264000043

Unavailable

35

LH LATCH BASE, BLACK - Call your local BRP dealership

264000055

Unavailable

36

RH LATCH BASE, BLACK - Call your local BRP dealership

264000056

Unavailable

38

Stiffener

264000092

$6.39

39

STIFFENER - Call your local BRP dealership

264000093

Unavailable

40

LH Tray | Includes 200 to 200c

264000097

$73.99

41

Strap

269502417

$17.69

42

Dry Bag 10 | Not shown

269502121

$40.49

43

ANCHOR SANDBAG - Call your local BRP dealership

269501318

Unavailable

44

Clip

269501609

$16.17

46

CABLE GROMMET - Call your local BRP dealership

279000196

Unavailable

47

Not Available As Spare Parts

XXX

Unavailable

48

Rear Platform Carpet

291002585

$104.99

62

Not Available As Spare Parts

XXX

Unavailable

63

BUTTON - Call your local BRP dealership

291002726

Unavailable

64

Not Available As Spare Parts

XXX

Unavailable

67

ROPE 3/16 3000MM LONG - Call your local BRP dealership

219704363

Unavailable

68

Button Cap

291002754

$6.25

69

Not Available As Spare Parts

XXX

Unavailable

70

INSIDE COVER - Call your local BRP dealership

291002762

Unavailable

71

SEA-DOO DECAL - Call your local BRP dealership | Package LTD

291002793

$13.49

73

Not Available As Spare Parts

XXX

Unavailable

76

Tuflok Plastic Rivet

293150230

$1.47

78

Pop Rivet 3/16"

293150123

$4.29

79

Gasket 1000Mm Long

219704374

$2.01

80

Was 293250186 Gasket

219704375

$17.57

82

Gasket

293250204

$30.49

83

NEOPRENE SEAL - Call your local BRP dealership

293250210

Unavailable

84

Gasket 3000Mm Long

219704378

$26.49

87

Black, Dart

293730006

$0.99

88

Bracket

293730056

$14.49

89

Tie Wrap 94 mm | 4X4

293750001

$1.03

90

Tie Wrap 142 mm

293750002

$1.25

91

Rubber Bumper

293830005

$8.09

94

Shock Ass'y

264000099

$44.99

95

Storage Bin Ass'y | Includes 10a to 10a2

264000118

$76.99

96

Rear Platform Ass'y | Includes 50 to 50g

264000034

$319.99

98

Not Available As Spare Parts

XXX

Unavailable

99

Not Available As Spare Parts

XXX

Unavailable

100

GLOVE BOX ASS'Y - Call your local BRP dealership

264000068

Unavailable

101

Storage Bin Cover Ass'y | Includes 10b to 10b2

264000120

$39.99

103

Safety Kit | Package LTD

295100330

$22.49

104

JAM CLEAT SYSTEM ASS'Y - Call your local BRP dealership | Includes 2300a to 2300a2

291003023

Unavailable
