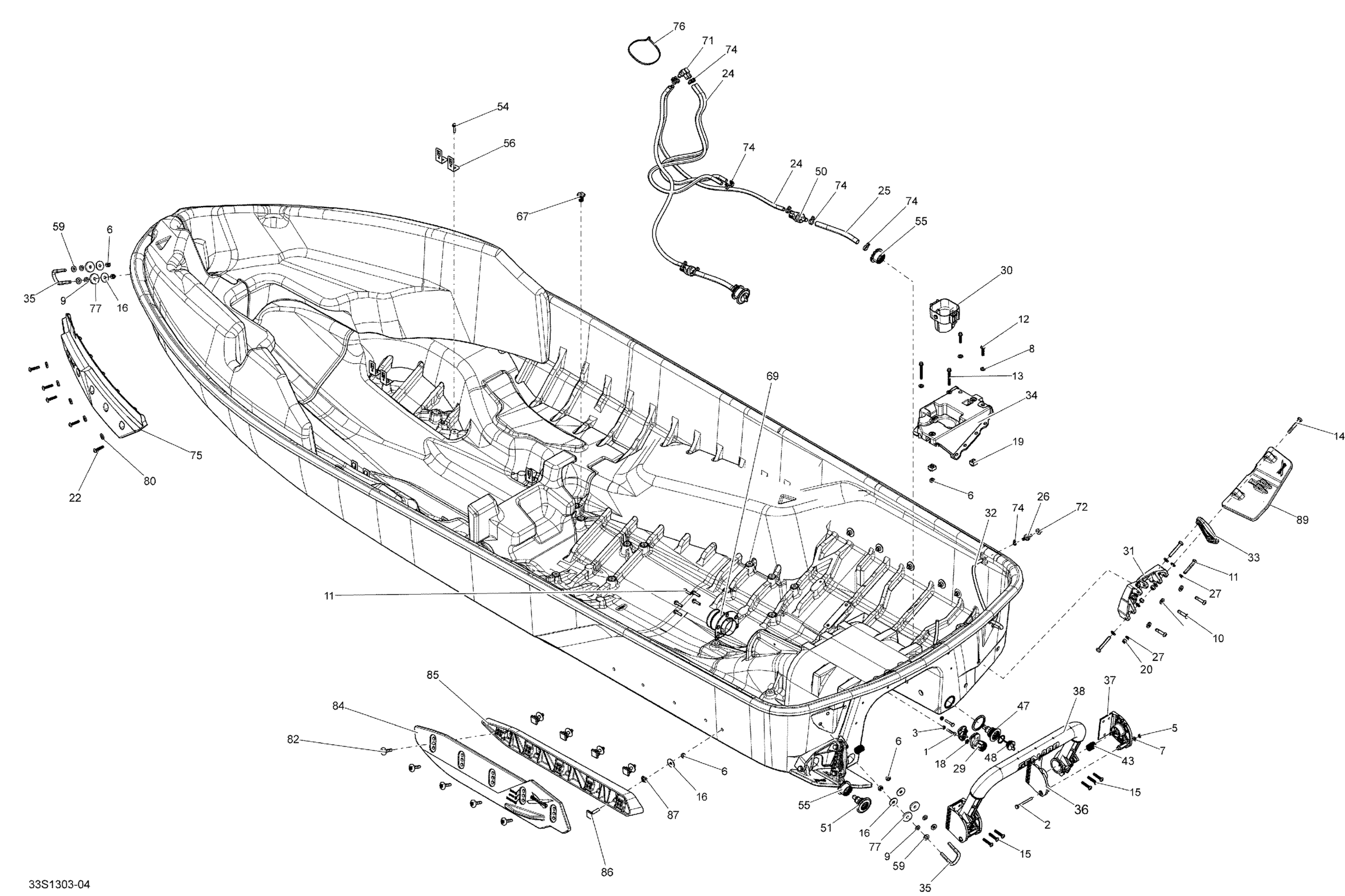

Sea-doo RXT-X aS 260 & RS. 2013 09- Hull Diagram
#
1
Hex. Screw M6 X 30
207063060
$1.89
2
Hex. Screw M6 x 65 | Produced Before February 01 2010
207066560
$2.11
3
Elastic Stop Nut M6, Brass
232561200
$4.23
5
Hex. Elastic Stop Nut M6
232561600
$1.15
6
Hex. Elastic Nut M8 Brass
232581200
$2.22
7
Stainless Flat Washer M6
234061600
$0.33
8
Flat Washer M8, Stainless
234080600
$1.48
9
Flat Washer 8 mm, Nylon
234081100
$1.39
10
SOCKET SCREW M8 X 35 - Call your local BRP dealership
205983560
Unavailable
11
Hex. Flange Screw M6.81 X 25, Plastite
243162560
$2.19
12
Hex. Flange Screw M6.81 X 30
243163060
$2.32
13
Hex. Flange Screw M6.81 X 55
243165560
$3.91
14
Torx Screw M8 X 40, Stainless
250000452
$3.91
15
Torx Screw
250000468
$4.61
16
Flat Washer 8 mm, Stainless
250200175
$3.06
18
Sealing Washer
250200114
$4.44
19
Elastic Nut Housing M8 | Included 10a6 to 10a6a
269501943
$6.67
20
Hex. Elastic Nut M8
232581600
$1.48
22
Screw Torx M6.81 X 30
250000626
$3.91
24
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
25
Was 275500008 Hose 12 mm
219704356
$20.49
26
CHECK VALVE - Call your local BRP dealership This part replaces 275500167.
275500499
Unavailable
27
Stainless, Flat Washer 8 mm
234081600
$0.55
29
Cable Adaptor Ass'y
277001881
$19.99
30
Depth Sensor
278002954
$373.99
31
LH SUPPORT PLATE - Call your local BRP dealership
292001462
Unavailable
31
RH SUPPORT PLATE - Call your local BRP dealership
292001463
Unavailable
32
HOSE 6 MM - Call your local BRP dealership
275500446
Unavailable
33
LINK ARM - Call your local BRP dealership
292001464
Unavailable
34
Battery Base Ass'y
278002343
$65.99
35
U-Clamp
292000933
$59.49
36
A Section Support
292001509
$59.99
37
B Section Support
292001510
$59.99
38
Overmolded Bar
292001204
$159.99
39
Flat Washer M8.5 x 18
293050001
$3.07
43
Spring
292001259
$27.99
47
Drain Neck Ass'y
292001315
$27.99
48
Plug Drain Ass'y | Includes 310 to 310b
292002024
$13.49
50
Bailer Ass'y
292001310
$23.99
51
Drain Neck Ass'y
292001317
$27.99
55
Bushing
292001371
$17.49
56
STRAP CLIP 90 - Call your local BRP dealership
275500743
Unavailable
59
Flat Washer M8.5 x 18
293050001
$3.07
67
INSERT CAPUCHON M8 - Call your local BRP dealership
293450290
Unavailable
69
HULL INSERT - Call your local BRP dealership
293450306
Unavailable
71
ELBOW FITTING 90 - Call your local BRP dealership
293710117
Unavailable
72
Grommet
293720029
$1.59
74
Tie Wrap 94 mm | 4X4
293750001
$1.03
75
LH FRONT DEFLECTOR - Call your local BRP dealership
292001478
Unavailable
75
RH FRONT DEFLECTOR - Call your local BRP dealership
292001479
Unavailable
76
Tie Wrap 368 mm
293750008
$1.04
77
Rubber Washer
293830037
$2.68
80
FLAT WASHER, STAINLESS - Call your local BRP dealership
211200006
Unavailable
82
Torx-Head Screw M8 X 35 This part replaces 250000572.
250000994
$3.91
84
RH Sponson This part replaces 292001426.
292001871
$83.99
84
Sponson LH This part replaces 292001427.
292001872
$83.99
85
RH Spacer Sponson This part replaces 292001428.
292001873
$41.99
85
Spacer Sponson LH This part replaces 292001429.
292001874
$54.99
86
Square Head Stud
292001471
$15.99
87
Push Nut
292001503
$1.15
89
LH TRIM TAB - Call your local BRP dealership
292001460
Unavailable
89
RH TRIM TAB - Call your local BRP dealership
292001461
Unavailable
