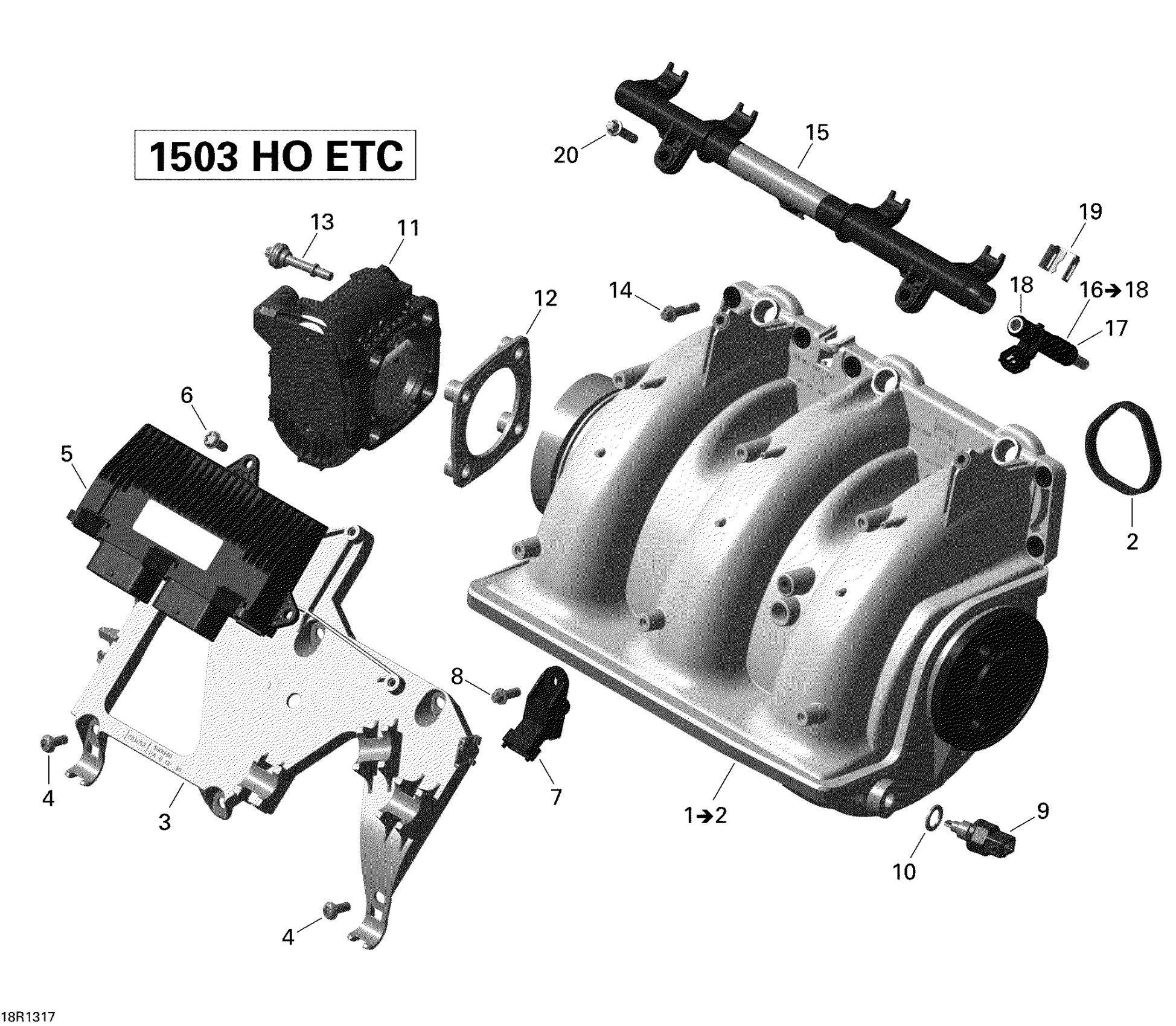

Sea-doo RXT-X aS 260 & RS. 2013 Air Intake Manifold And Throttle Body 2 Diagram

#

Description
Price

1

Induction Manifold | Includes 1 to 2

420867951

$592.51

2

Gasket | Included in gasket kit

420950740

$4.15

3

Base Plate

420460842

$19.49

4

Torx Flange Screw M6 X 16

420641588

$2.00

5

Electronic Box | North America

420666512

$1,270.87

5

ELECTRONIC BOX - Call your local BRP dealership | Except North America

420666513

Unavailable

5

Electronic Box | Model-North America

420666514

$1,270.87

5

Electronic Box | Model-International

420666515

$1,270.87

6

Torx Flange Screw M6 X 16

420641588

$2.00

7

Pressure Sensor

420274058

$125.34

8

Torx Flange Screw M6 X 16

420641048

$2.82

9

Temperature Sensor This part replaces 420222424.

420222422

$40.27

10

Thrust Washer

420227987

$14.90

11

Throttle Body Socket Ass’y

420892592

$461.16

12

Rubber Gasket

420950792

$10.21

13

Allen Screw M6 x 30,5

420440561

$4.21

14

Torx Flange Screw M6 X 25

420641238

$3.07

15

Fuel Rail

420874414

$138.03

16

Fuel Injector | Includes 16 to 18 This part replaces 420874834.

420874846

$128.33

17

O-Ring

420431890

$5.69

18

O-Ring

420631220

$13.18

19

Injector Clip

420853030

$2.82

20

Torx Flange Screw M6 X 25

420641238

$3.07
