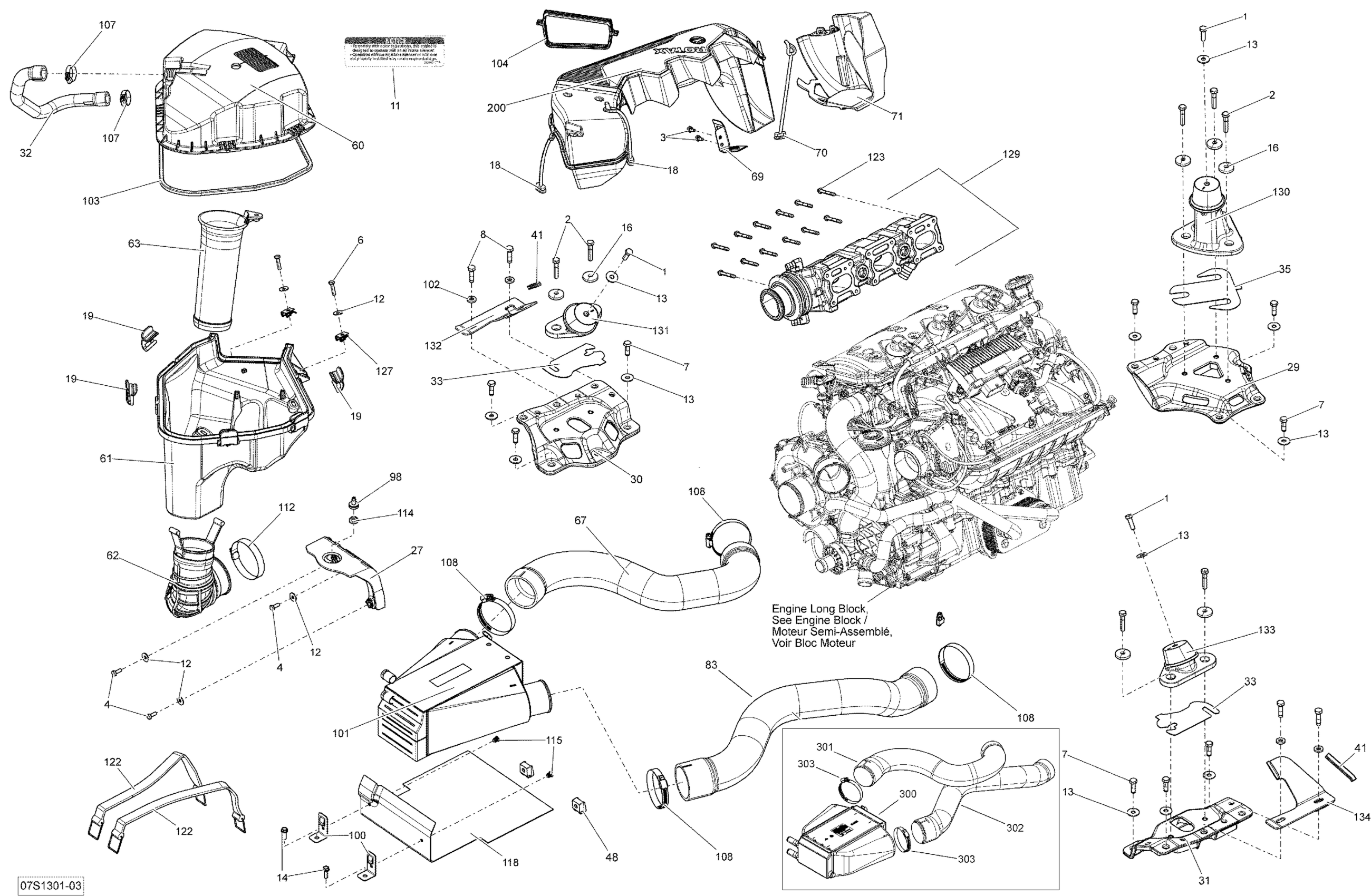

Sea-doo RXT-X aS 260 & RS. 2013 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.27

2

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.24

3

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

4

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.04

6

Hex. Screw M6 X 25, Scotch Grip | With Catalyst

207362560

$1.40

7

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

$3.73

8

Hex. Screw M8 X 30, Scotch Grip

250000526

$0.73

11

Air Silencer Notice Decal

219903177

Unavailable

12

Flat Washer M6, Stainless

234062600

$0.73

13

Flat Washer 8 mm, Stainless

234082600

$2.27

14

Hex. Flange Screw M6.81 x 20

243162060

$3.79

16

Cone Washer

250200018

$5.33

18

Strap

269501299

$17.13

19

Clip

269501718

$14.90

27

AIR BOX SUPPORT - Call your local BRP dealership

270000735

Unavailable

29

SPACER - Call your local BRP dealership

270000767

Unavailable

30

SPACER - Call your local BRP dealership

270000763

Unavailable

31

Spacer

270000766

$73.10

32

Formed Hose

270000807

$51.46

33

Shim 1.3 mm

270000762

$10.37

35

Shim 1.3 mm

270000770

$14.76

41

TRIM, BLACK - Call your local BRP dealership

204610371

Unavailable

48

Strap Anchor

270000854

$6.09

60

Air Silencer Upper

273000249

$55.19

61

AIR SILENCER LOW - Call your local BRP dealership

273000250

Unavailable

62

CONNECTOR HOSE - Call your local BRP dealership

273000251

Unavailable

63

Intake Hose

273000359

$44.00

67

Inlet Hose This part replaces 273000282.

273000404

$64.15

69

AIR BOX BRACKET - Call your local BRP dealership

273000260

Unavailable

70

Strap

273000261

$14.45

71

DEFLECTOR - Call your local BRP dealership

273000271

Unavailable

83

Outlet Hose This part replaces 273000300.

273000405

$84.30

98

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

100

STRAP CLIP 90 - Call your local BRP dealership

275500743

Unavailable

101

Intercooler This part replaces 276000332.

276000415

$435.79

102

Flat Washer M8.5 x 18

293050001

$1.48

103

NEOPRENE SEAL - Call your local BRP dealership

293200123

Unavailable

104

SEAL - Call your local BRP dealership

293250190

$13.70

107

Tridon Gear Clamp

293650051

$4.15

108

Tridon Clamp

293650179

$10.12

112

Tridon Clamp

293650179

$10.12

114

GROMMET - Call your local BRP dealership

293720064

Unavailable

115

Black, Dart

293730016

$7.97

118

RUBBER PAD - Call your local BRP dealership | Engine 1503 HO 4-TEC

293830146

Unavailable

122

Fuel Tank Strap

293850093

$19.37

123

Torx Flange Screw M6 X 45

420641198

$3.88

127

Panel Nut M6 X 1

420942108

$13.18

129

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$748.48

130

Rubber Mount

270000886

$113.40

131

Engine Support Ass'y

270001081

$96.99

132

LH STOPPER - Call your local BRP dealership

270000796

Unavailable

133

Engine Support Ass'y

270001081

$96.99

134

RH Stopper

270000799

Unavailable

200

INTAKE TUBE - Call your local BRP dealership

273000253

Unavailable

300

Intercooler | Model GTR

276000397

$437.28

301

Formed Hose | Engine 1503 HO 4-TEC

273000361

$85.04

302

Formed Hose | Engine 1503 HO 4-TEC

273000362

$84.30

303

Tridon Gear Clamp

293650244

$8.28
