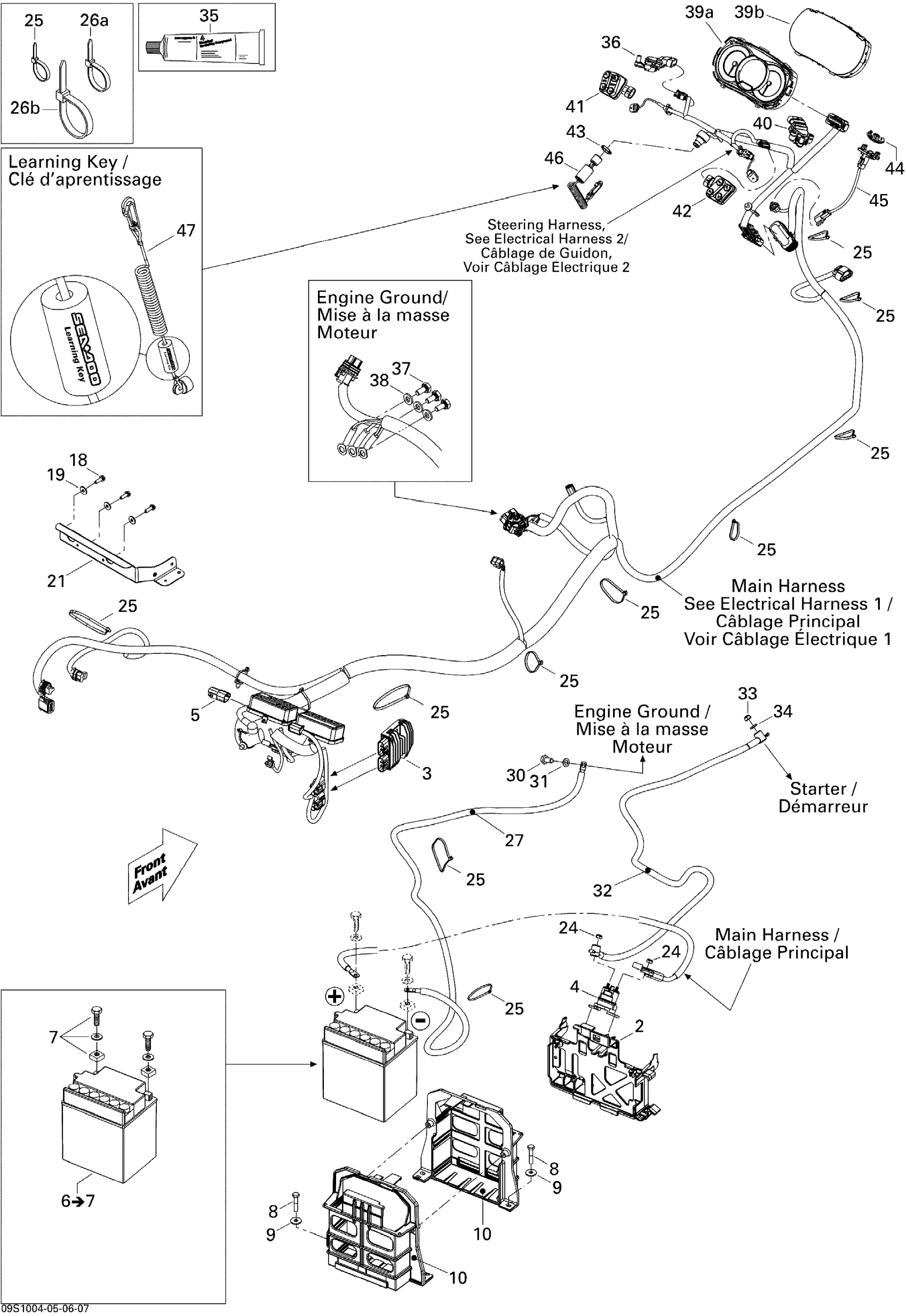

Sea-doo RXT-X and X RS 260, 2010 Electrical System Diagram

#

Description
Price

2

Support

278003048

$21.99

3

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

4

Starter Relay

278003012

$42.49

5

Diagnostic Connector

278002704

$19.49

6

Battery, 30 Amperes

278001882

$184.01

7

Battery Bolt Kit

250000282

$7.29

8

Hex. Screw M8 X 40

207184060

$2.22

9

Flat Washer 8 mm, Stainless

234082600

$2.43

10

Battery Support

278003306

$20.99

18

Hex. Flange Screw M6.81 x 20

243162060

$3.72

19

Flat Washer M6, Stainless

234062600

$0.77

21

SUPPORT - Call your local BRP dealership

278003293

Unavailable

24

Elastic Stop Nut M6, Brass

232561200

$4.23

25

Tie-Rap 180 mm

414115200

$0.11

26a

Tie Wrap 368 mm

293750008

$1.04

26b

Tie Rap, 533 mm

293750047

$2.09

27

Battery Ground Cable

278003269

$41.49

30

Hex. Screw M10 X 20, Scotch Grip

207302060

$4.02

31

Flat Washer 10 mm, Stainless

234000600

$1.46

32

Cable-Starter

278003398

$63.99

33

Elastic Stop Nut M6, Brass

232561200

$4.23

34

Stainless Flat Washer M6

234061600

$0.33

35

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

36

LH Throttle Sensor

278002284

$119.99

37

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

38

Stainless Flat Washer M6

234061600

$0.33

39a

Cadran Info *Lcd Gauge This part replaces 278002657.

278002763

$1.00

39b

Not Available As Spare Part - Friction Washer

Unavailable

40

Throttle Position Sensor

278002283

$119.99

41

Switch

278002604

$126.99

42

Switch RH Mode/Set

278002602

$126.99

43

Safety Nut (DESS Switch)

278002963

$3.28

44

O.T.A.S Actuator

278003537

$42.99

45

O.T.A.S. Sensor Ass'y

278003009

$109.99

46

Safety Lanyard, Antitheft

278002483

$58.49

47

Safety Lanyard, Learning Key

278002484

$56.99
