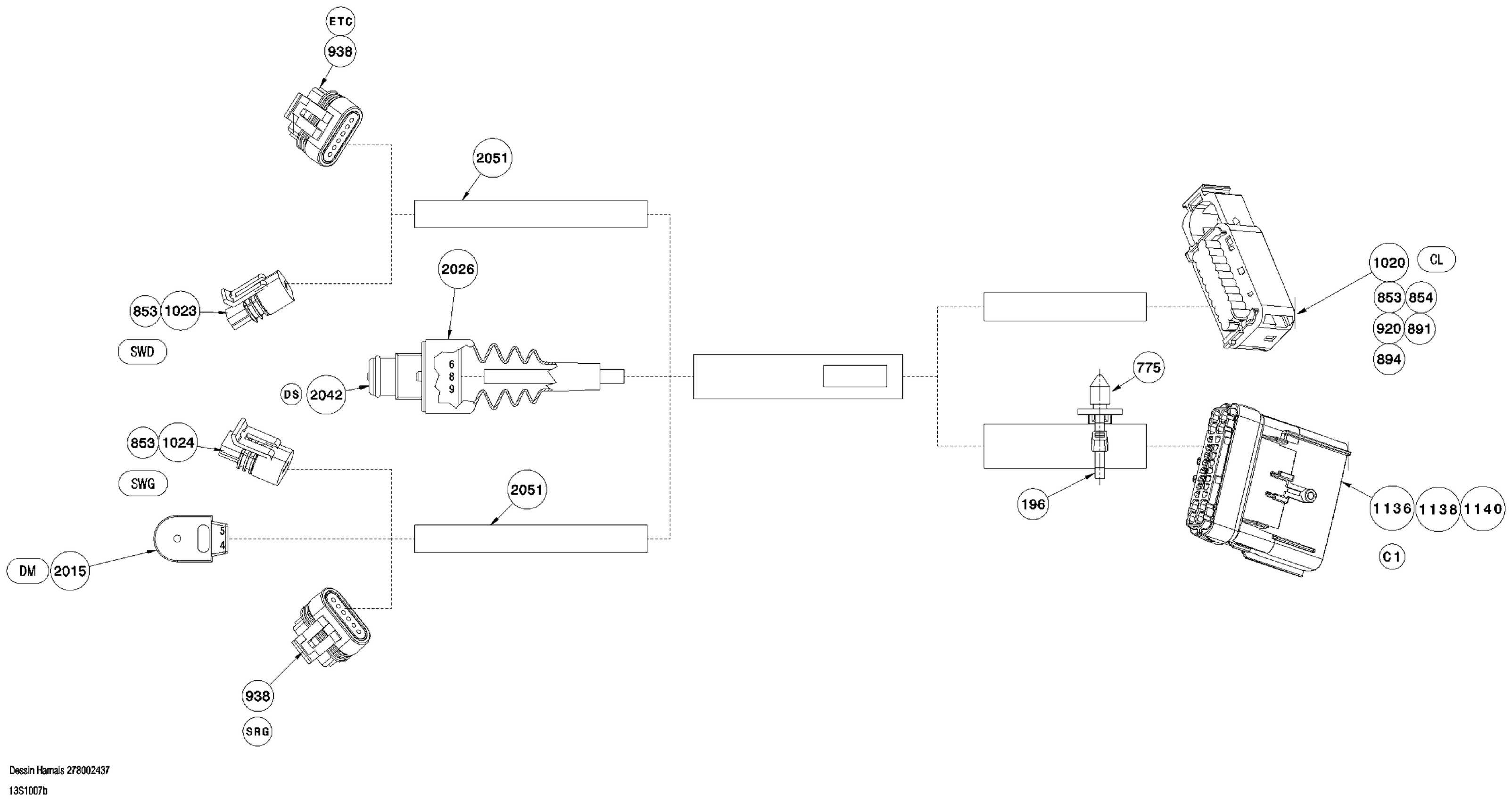

Sea-doo RXT-X and X RS 260, 2010 Electrical Harness 2 Diagram

Steering Harness | Includes 1 to 2055

278002789

$479.99

Tie Wrap 142 mm

293750002

$1.25

Mount Dart

293730040

$1.04

Female Terminal

710001119

$5.39

Wire Seal

710001163

$7.69

Female Terminal

710001164

$8.89

Terminal

710001228

$3.28

Cap

710001225

$9.19

Seal Wire

710001332

$3.28

Female Terminal Housing 6 Circuits

278002299

$9.10

Male Terminal Housing, 20 Circuits

278002385

$17.04

Female Terminal Housing, 3 Circuits

278003442

$8.79

Female Terminal Housing 3 Circuits

278002387

$8.79

HOUSING - Call your local BRP dealership

278002452

Unavailable

Male Terminal

278002454

$5.79

Male Terminal

278002456

$5.79

START/STOP SWITCH - Call your local BRP dealership

278001733

Unavailable

BOOT - Call your local BRP dealership

278002263

Unavailable

Safety Switch This part replaces 278002325.

278002773

$114.99
