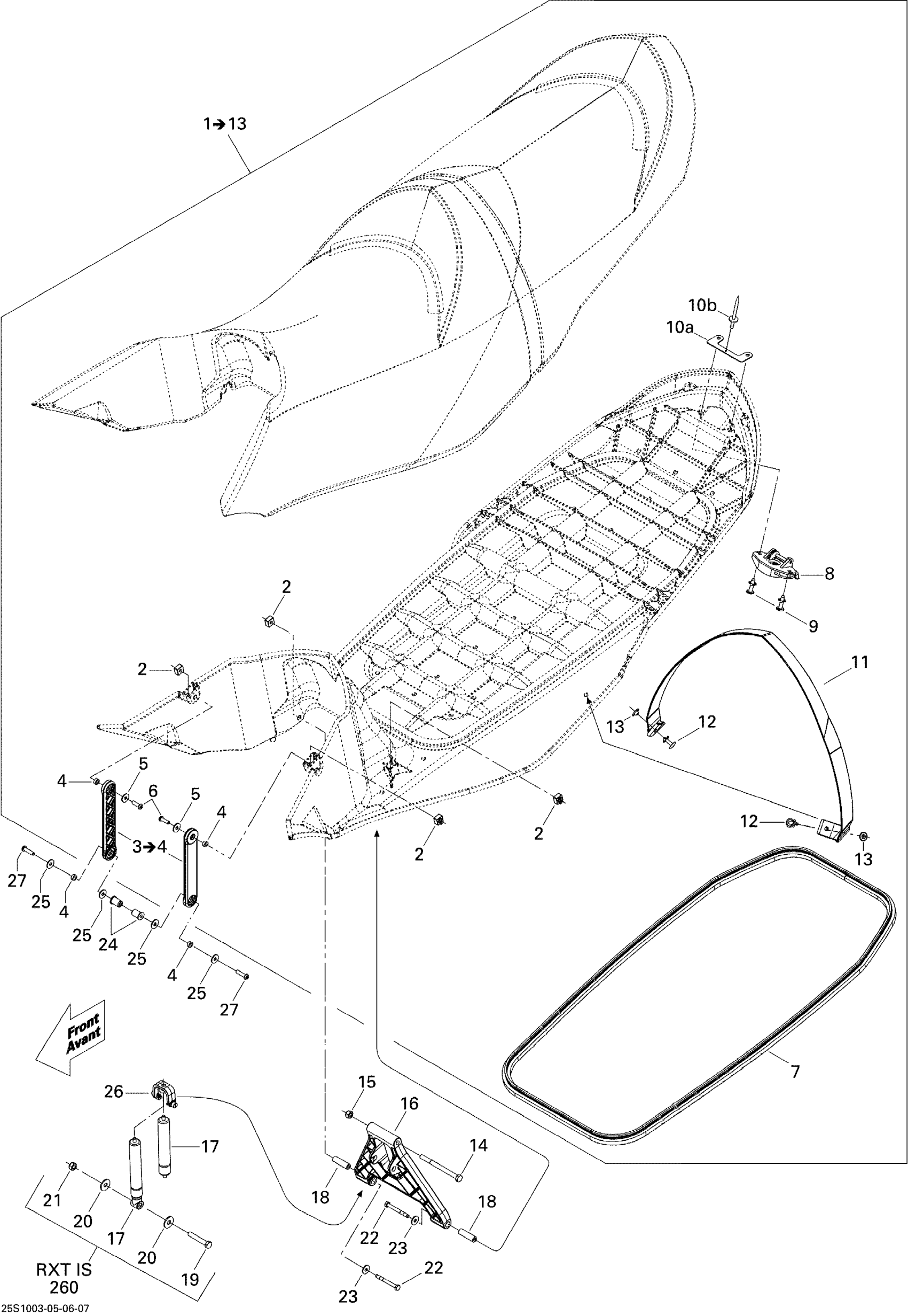

Sea-doo RXT-X and X RS 260, 2010 Seat Diagram

#

Description
Price

1

SEAT ASS'Y - Call your local BRP dealership | Includes 1 to 12

269002191

Unavailable

2

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

3

Lateral Arm

296000372

$18.49

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Flat Washer M6, Stainless

234062600

$0.77

6

SOCKET SCREW M6 X 20 - Call your local BRP dealership

205462060

Unavailable

7

Was 293200062 Seal

219704366

$76.49

8

Latch Ass'y

269700116

$36.99

9

Rivet 1/4"

293150151

$8.04

10a

Not Available As Spare Part - Friction Washer

Unavailable

10b

Pop Rivet 1/8

293150143

$0.48

11

Seat Strap | RXT Black

269001676

$36.99

12

Rivet | Model-T3

293150067

$2.89

13

Grommet

293720067

$12.99

14

Hex. Screw M8 X 150

231085060

$6.77

15

Hex. Elastic Nut M8 Brass

232581200

$2.22

16

Center Arm

269501699

$24.99

17

Shock

269001684

$65.99

18

Spacer

269001589

$18.49

19

Not Available As Spare Parts

XXX

Unavailable

20

Not Available As Spare Parts

XXX

Unavailable

21

Not Available As Spare Parts

XXX

Unavailable

22

Hex. Screw M6 X 55, Scotch Grip | Except Europe

207265560

$7.41

23

Flat Washer M6, Stainless

234062600

$0.77

24

Expansion Nut M6 X 1

250100150

$2.11

25

Flat Washer M6, Stainless

234062600

$0.77

26

End Fitting

269002077

$16.85

27

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11
