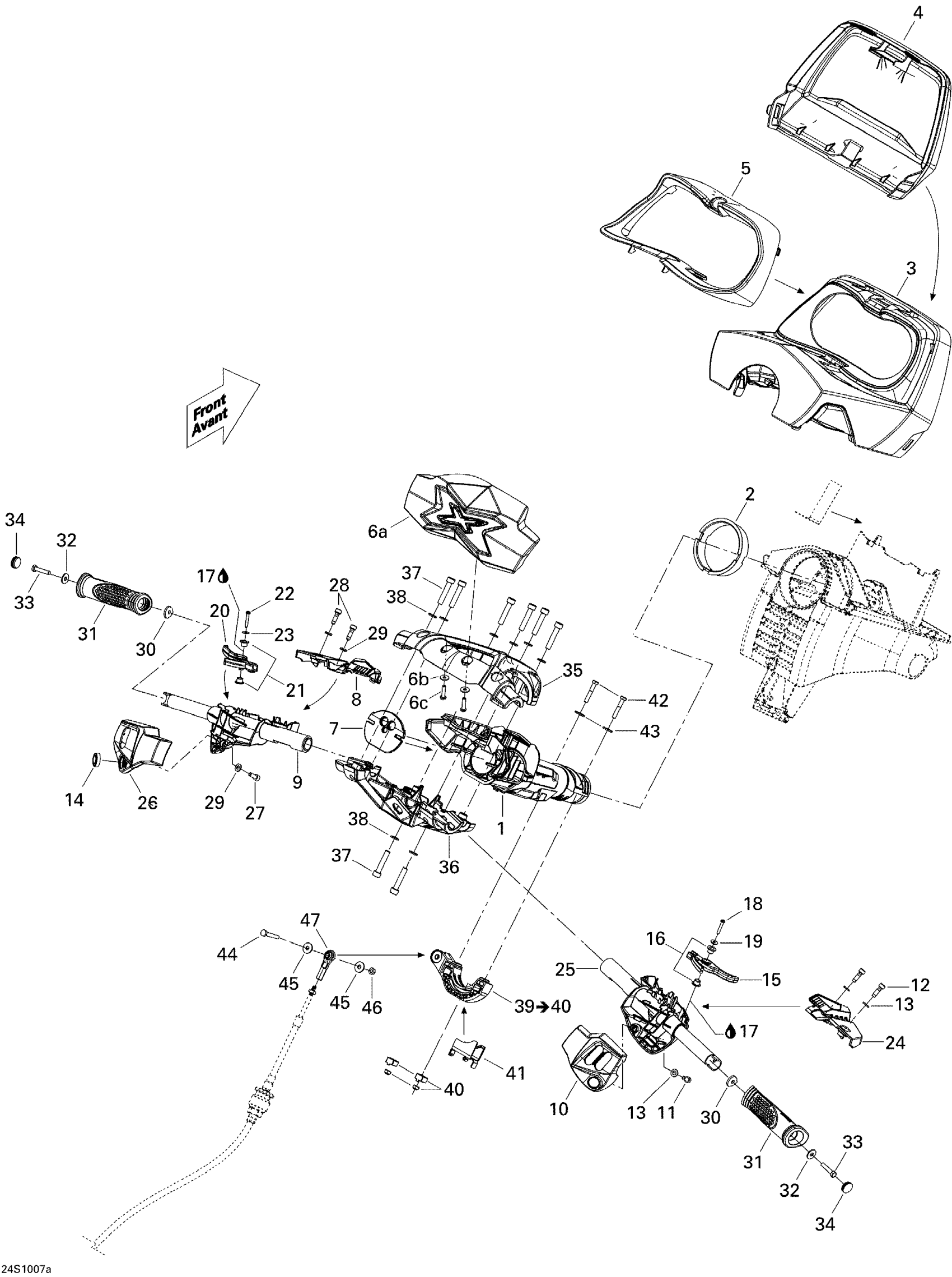

Sea-doo RXT-X and X RS 260, 2010 Steering 1 Diagram

#

Description
Price

1

Steering Column

277001685

$249.99

2

Wear Ring

277001653

$12.17

3

Gauge Support

277001953

$61.99

4

Gauge Support Cover

277001613

$28.99

5

Gauge Trim, Black

277001630

$55.99

6a

Handle Pad

277001683

$91.99

6b

Flat Washer 5 mm, Stainless

234052600

$0.77

6c

Hex. Screw 10-14 X 7/8”

211000023

$3.59

7

Grommet

293720086

$14.49

8

LH UPPER HOUSING - Call your local BRP dealership

277001686

Unavailable

9

RH LOWER HOUSING - Call your local BRP dealership This part replaces 277001966.

277001951

Unavailable

10

RH Housing Cover

277001718

$134.99

11

Socket Screw M6 X 16

205061660

$1.48

12

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.76

13

Stainless Flat Washer M6

234061600

$0.33

14

Switch Knob, Red

277001802

$10.59

15

Throttle Handle

277001944

$38.99

16

Bushing

293900091

$4.52

17

Synthetic Grease, 400 G

293550010

Unavailable

18

Hex. Flange Screw K40 X 25

241142560

$2.64

19

Flat Washer 4 mm, Stainless

234042600

$1.15

20

Reverse Handle

277001945

$43.99

21

Bushing

293900091

$4.52

22

Hex. Flange Screw K40 X 25

241142560

$2.64

23

Flat Washer 4 mm, Stainless

234042600

$1.15

24

LH LOWER HOUSING - Call your local BRP dealership

277001884

Unavailable

25

Upper Housing RH

277001688

$109.99

26

LH HOUSING COVER - Call your local BRP dealership

277001794

Unavailable

27

Socket Screw M6 X 16

205061660

$1.48

28

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.76

29

Stainless Flat Washer M6

234061600

$0.33

30

Insert Grip Handle

277001863

$8.83

31

Handlebar Grip

277002286

$19.99

32

Flat Washer M6, Stainless

234062600

$0.77

33

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.92

34

Black, Cap

277000203

$9.39

35

FRONT EXTENSION BLOC - Call your local BRP dealership

277001909

Unavailable

36

REAR EXTENSION BLOC - Call your local BRP dealership

277001910

Unavailable

37

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

38

Flat Washer M8, Stainless

234080600

$1.48

39

SUPPORT ASS'Y - Call your local BRP dealership | Includes 26 to 27

277001656

Unavailable

40

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

41

Spacer

277001654

$15.99

42

Hex. Screw M6 X 35

207163560

$1.49

43

Flat Washer M6, Stainless

234062600

$0.77

44

Hex. Screw M6 X 40

207064060

$1.69

45

Flat Washer M6, Stainless

234062600

$0.77

46

Elastic Stop Nut M6, Brass

232561200

$4.23

47

Ball Joint

277000775

$51.99
