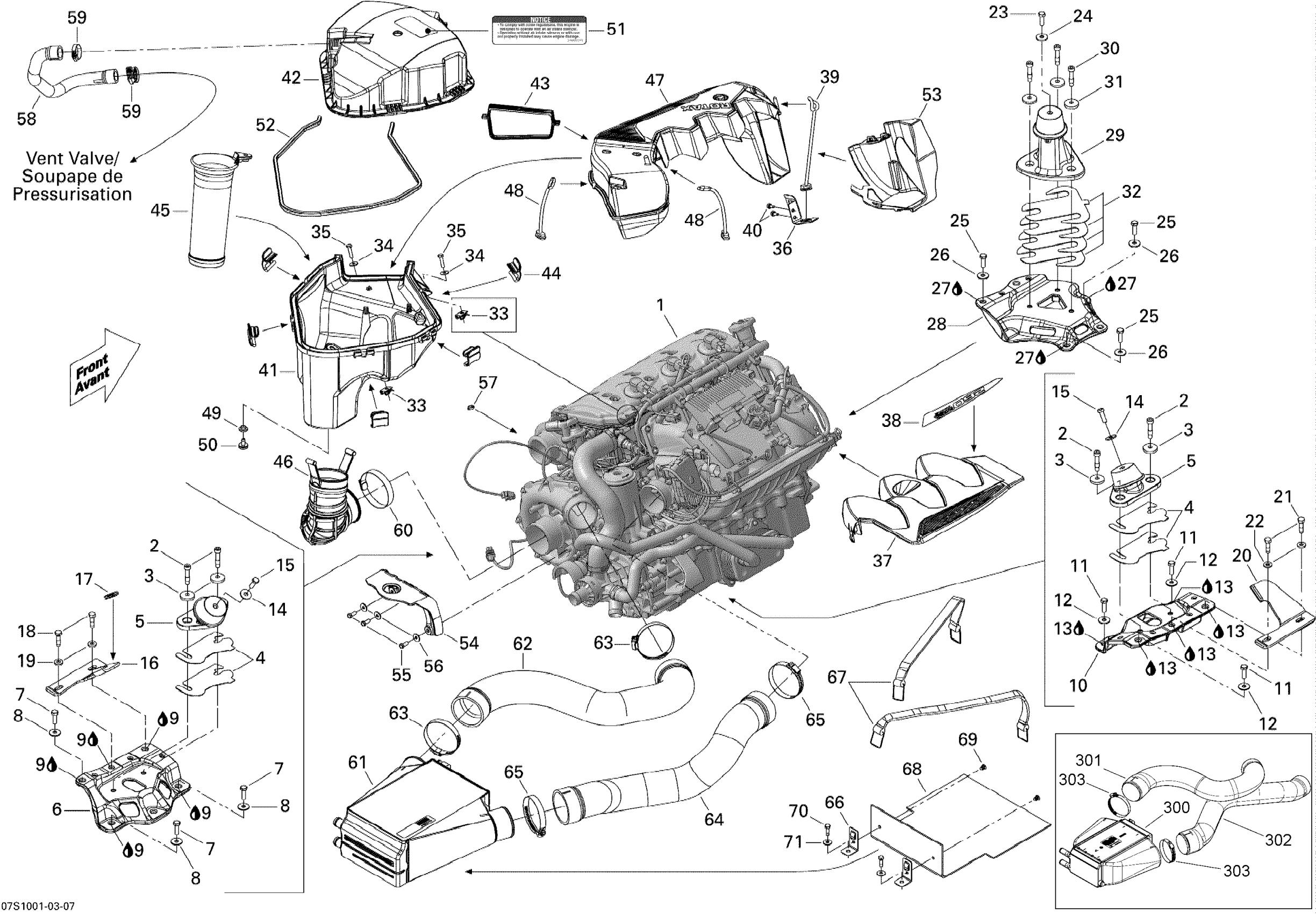

Sea-doo RXT-X and X RS 260, 2010 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Engine Long Block This part replaces 420150338.

420150394

$3,999.99

1

Engine Long Block This part replaces 420150338.

420150394

$3,999.99

2

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.73

3

Cone Washer

250200018

$5.33

4

Shim 1.3 mm

270000762

$10.37

5

Engine Support Ass'y

270001081

$96.99

6

SPACER - Call your local BRP dealership

270000763

Unavailable

7

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.27

8

Flat Washer 8 mm, Stainless

234082600

$2.27

9

Loctite 271, 10 ml

293800005

$23.85

10

Spacer

270000766

$73.10

11

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.27

12

Flat Washer 8 mm, Stainless

234082600

$2.27

13

Loctite 271, 10 ml

293800005

$23.85

14

Flat Washer 8 mm, Stainless

234082600

$2.27

15

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.27

16

LH STOPPER - Call your local BRP dealership

270000796

Unavailable

17

TRIM, BLACK - Call your local BRP dealership

204610371

Unavailable

18

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.78

19

Flat Washer M8.5 x 18

293050001

$1.48

20

RH Stopper

270000799

Unavailable

21

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.78

22

Flat Washer M8.5 x 18

293050001

$1.48

23

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.27

24

Flat Washer 8 mm, Stainless

234082600

$2.27

25

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.27

26

Flat Washer 8 mm, Stainless

234082600

$2.27

27

Loctite 271, 10 ml

293800005

$23.85

28

SPACER - Call your local BRP dealership

270000767

Unavailable

29

Rubber Mount

270000886

$113.40

30

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.73

31

Cone Washer

250200018

$5.33

32

Shim 1.3 mm

270000770

$14.76

33

Panel Nut M6 X 1

420942108

$13.18

34

Flat Washer M6, Stainless

234062600

$0.73

35

Hex. Screw M6 X 25, Scotch Grip | With Catalyst

207362560

$1.40

36

AIR BOX BRACKET - Call your local BRP dealership

273000260

Unavailable

37

Engine Cover | Model RXT 260, RXT 260 RS

270000804

$64.15

38

ENGINE DECAL, 260 4-TEC - Call your local BRP dealership

219903235

Unavailable

39

Strap

273000261

$14.45

40

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

41

AIR SILENCER LOW - Call your local BRP dealership

273000250

Unavailable

42

Air Silencer Upper

273000249

$55.19

43

SEAL - Call your local BRP dealership

293250190

$13.70

44

Clip

269501718

$14.90

45

Intake Hose

273000359

$44.00

46

CONNECTOR HOSE - Call your local BRP dealership

273000251

Unavailable

47

INTAKE TUBE - Call your local BRP dealership

273000253

Unavailable

48

Strap

269501299

$17.13

49

GROMMET - Call your local BRP dealership

293720064

Unavailable

50

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

51

Air Silencer Notice Decal

219903177

Unavailable

52

NEOPRENE SEAL - Call your local BRP dealership

293200123

Unavailable

53

DEFLECTOR - Call your local BRP dealership

273000271

Unavailable

54

AIR BOX SUPPORT - Call your local BRP dealership

270000735

Unavailable

55

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

56

Flat Washer M6, Stainless

234062600

$0.73

57

Tie Wrap 142 mm

293750002

$1.01

58

Formed Hose

270000807

$51.46

59

Tridon Gear Clamp

293650051

$4.15

60

Tridon Clamp

293650179

$10.12

61

Intercooler

276000179

Unavailable

62

Inlet Hose This part replaces 273000282.

273000404

$64.15

63

Tridon Clamp

293650179

$10.12

64

Outlet Hose This part replaces 273000300.

273000405

$84.30

65

Tridon Clamp

293650179

$10.12

66

STRAP CLIP 90 - Call your local BRP dealership

275500743

Unavailable

67

Fuel Tank Strap

293850093

$19.37

68

RUBBER PAD - Call your local BRP dealership | Engine 1503 HO 4-TEC

293830146

Unavailable

69

Black, Dart

293730016

$7.97

70

Hex. Flange Screw M6.81 x 20

243162060

$3.79

71

Flat Washer M6, Stainless

234062600

$0.73

300

Intercooler | Model GTR

276000397

$437.28

301

Formed Hose | Engine 1503 HO 4-TEC

273000361

$85.04

302

Formed Hose | Engine 1503 HO 4-TEC

273000362

$84.30

303

Tridon Gear Clamp

293650244

$8.28
