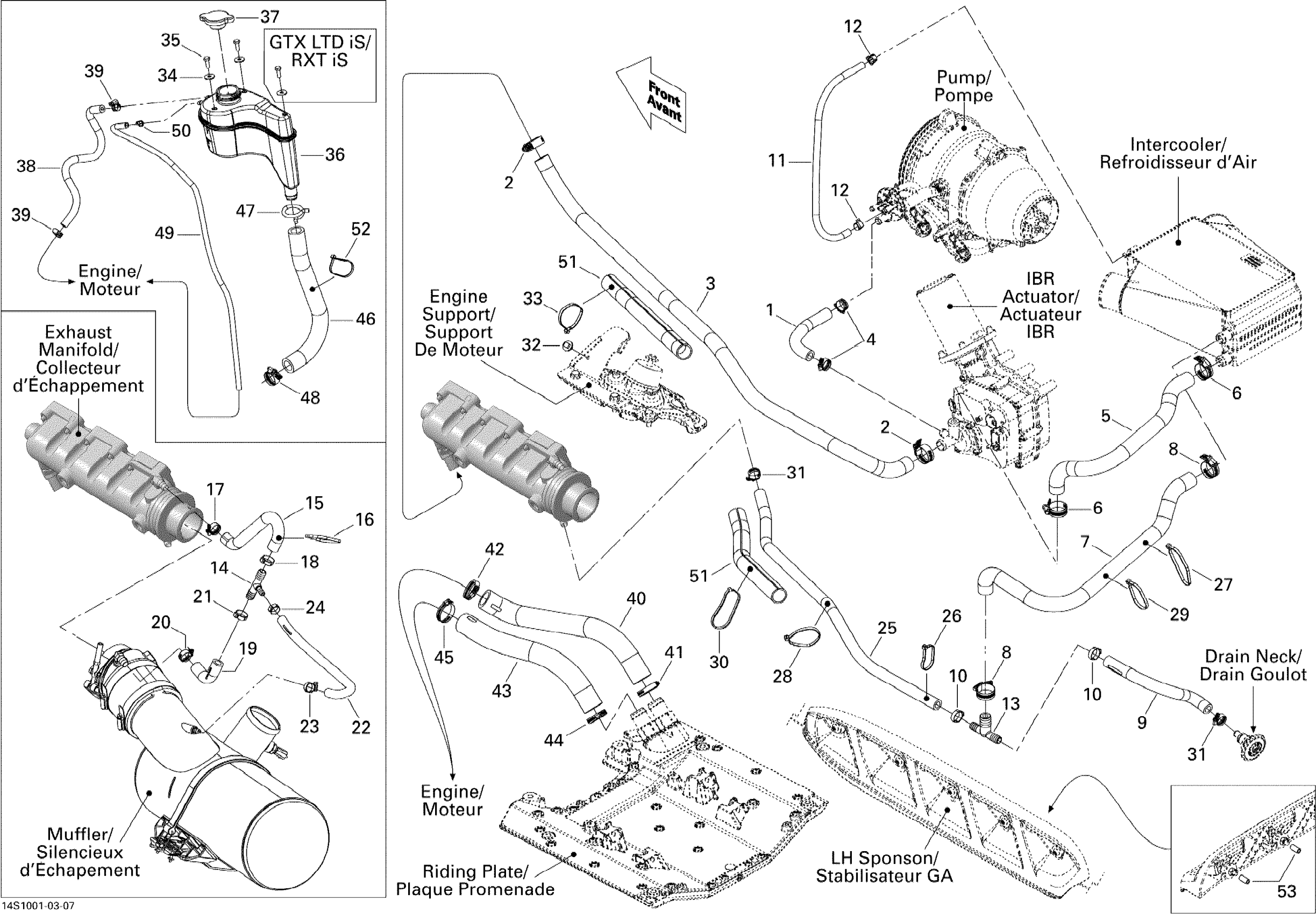

Sea-doo RXT-X and X RS 260, 2010 Cooling System Diagram

#

Description
Price

1

FORMED HOSE - Call your local BRP dealership

276000237

Unavailable

2

Tridon Gear Clamp

293650051

$4.19

3

FORMED HOSE - Call your local BRP dealership

276000238

Unavailable

4

Tridon Gear Clamp

293650172

$3.09

5

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

6

Tridon Gear Clamp

293650051

$4.19

7

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

8

Tridon Gear Clamp

293650051

$4.19

9

FORMED HOSE - Call your local BRP dealership

276000239

Unavailable

10

Oetiker Clamp

293650012

$7.49

11

HOSE 5/16 - Call your local BRP dealership

275500548

Unavailable

12

Tridon Gear Clamp

293650171

$3.09

13

T-Fitting

293710132

$12.65

14

T-Fitting

293710116

$17.62

15

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$19.49

16

Tie Wrap 368 mm

293750008

$1.04

17

Tridon Gear Clamp

293650172

$3.09

18

Oetiker Clamp

293650012

$7.49

19

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$19.49

20

Tridon Gear Clamp

293650172

$3.09

21

Oetiker Clamp

293650012

$7.49

22

Formed Hose | Without Catalyst

276000246

$19.49

23

Tridon Gear Clamp

293650171

$3.09

24

Oetiker Clamp | Europe

293650030

$5.19

25

Was 276000001 Hose 12.5 mm

219704394

$51.99

26

Tie Wrap 368 mm

293750008

$1.04

27

Not Available As Spare Parts

XXX

Unavailable

28

Tie Wrap 368 mm

293750008

$1.04

29

Tie Wrap 368 mm

293750008

$1.04

30

Tie Wrap 368 mm

293750008

$1.04

31

Tridon Gear Clamp

293650172

$3.09

32

Mount Dart

293730040

$1.04

33

Tie Wrap 368 mm

293750008

$1.04

34

Stainless Flat Washer M6

234061600

$0.33

35

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

36

Coolant Tank

276000265

$134.99

37

Pressure Cap | Includes 720 to 720a

276000100

$25.99

38

Was 275500549 Hose 1/4"

219704357

$194.99

39

Tridon Gear Clamp

293650170

$1.99

40

Radiator Hose This part replaces 276000240.

276000491

$49.99

41

Tridon Gear Clamp

293650185

$13.99

42

Tridon Gear Clamp

293650185

$13.99

43

Radiator Hose

276000241

$32.99

44

Tridon Gear Clamp

293650185

$13.99

45

Tridon Gear Clamp

293650185

$13.99

46

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

47

Spring Clamp

293650115

$3.09

48

Tridon Gear Clamp

293650019

$5.82

49

Polyurethane Hose 10000Mm Long

219704410

$56.99

50

Tie Wrap 94 mm | 4X4

293750001

$1.03

51

Tubing 25 MM 1000MM Long

219704402

$15.99

52

Tie-Rap 180 mm

414115200

$0.11

53

Polyurethane Hose 10000Mm Long

219704410

$56.99
