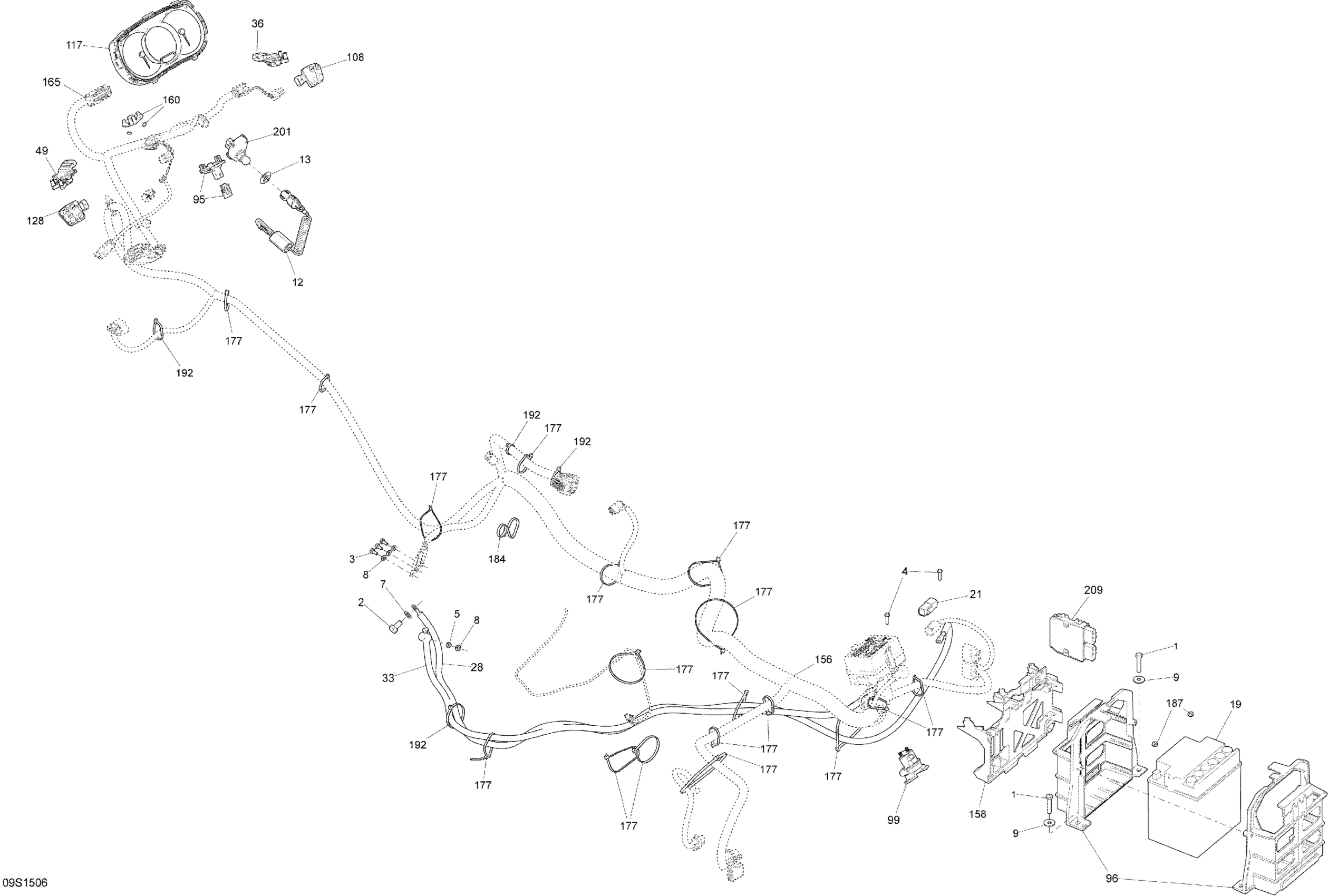

Sea-doo RXT-X 260 & RS. 2015 Electrical System _09S1506 Diagram

#

Description
Price

1

Hex. Screw M8 X 40

207184060

$2.12

2

Hex. Screw M10 X 20, Scotch Grip

207302060

$3.78

3

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

4

Hex. Screw 10-14 X 7/8”

211000023

$3.34

5

Elastic Stop Nut M6, Brass

232561200

$4.03

5

Elastic Stop Nut M6, Brass

232561200

$4.03

7

Flat Washer 10 mm, Stainless

234000600

$1.22

8

Stainless Flat Washer M6

234061600

$0.28

8

Stainless Flat Washer M6

234061600

$0.28

9

Flat Washer 8 mm, Stainless

234082600

$2.27

12

Safety Lanyard Ass'y, RFID

278003400

$67.13

12

Safety Lanyard Ass'y, Learning / RFID

278003401

$67.13

13

Safety Nut (DESS Switch)

278002963

$3.12

19

Battery, 30 Amperes

278001882

$171.95

21

Diagnostic Connector

278002704

$17.88

28

Battery Ground Cable

278003269

$38.78

33

Cable-Starter

278003398

$57.43

36

Throttle Position Sensor

278002283

$104.99

49

LH Throttle Sensor

278002284

$108.18

95

O.T.A.S. Sensor Ass'y

278003009

$99.22

96

Battery Support

278003306

$17.13

99

Starter Relay

278003012

$40.27

108

Switch RH Mode/Set

278002602

$115.64

117

LCD Gauge

278003382

$620.87

128

Switch LH VTS/Sport/Eco | Package STD

278002767

$116.39

156

Main Harness (Fixed)

278003253

$1,113.40

158

Support

278003048

$20.12

160

O.T.A.S Actuator

278003537

$38.03

165

Steering Harness Ass'y

278003266

$282.06

177

Tie Wrap 368 mm

293750008

$0.97

184

Tie Rap 300mm

293750053

$1.99

187

Battery Bolt Kit

250000282

$3.39

192

Tie-Rap 180 mm

414115200

$0.10

201

Terminal Dess One-Wire | Except Model Europe

515178840

$77.58

209

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$132.99
