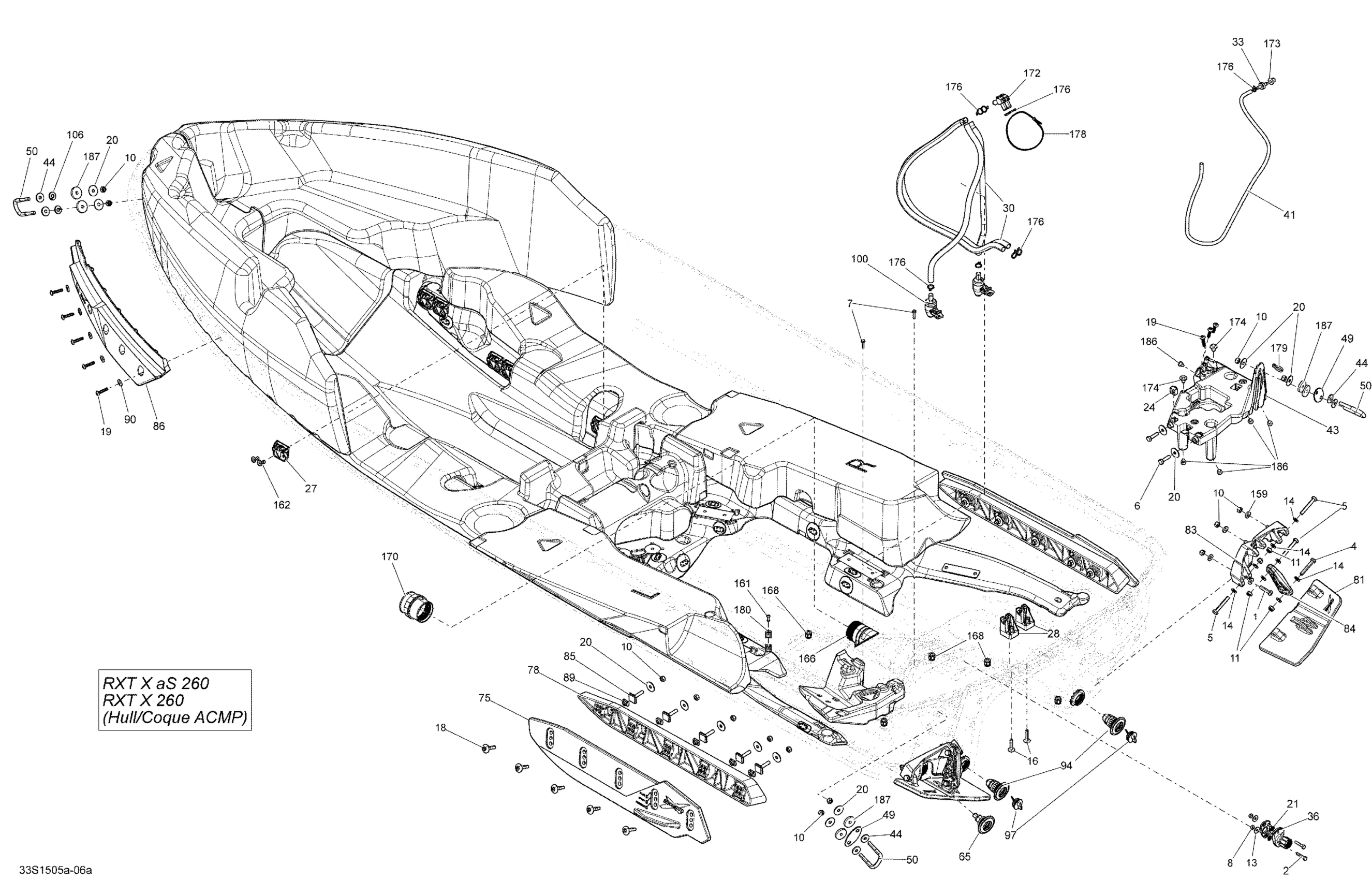

Sea-doo RXT-X 260 & RS. 2015 Hull ACMP_33S1506a Diagram

#

Description
Price

1

Not Available As Spare Parts

XXX

Unavailable

2

Hex. Screw M6 X 30

207063060

$1.89

4

Not Available As Spare Parts

XXX

Unavailable

5

Not Available As Spare Parts

XXX

Unavailable

6

Hex. Screw M8 X 30

207183060

$1.58

7

Hex. Screw 10-14 X 7/8”

211000023

$3.59

8

Elastic Stop Nut M6, Brass

232561200

$4.23

10

Hex. Elastic Nut M8 Brass

232581200

$2.22

11

Hex. Elastic Nut M8

232581600

$1.48

13

Flat Washer M6, Stainless

234062600

$0.77

14

Not Available As Spare Parts

XXX

Unavailable

16

Hexagonal Cap Screw M6 X35

250000399

$4.44

18

Torx-Head Screw M8 X 35 This part replaces 250000572.

250000994

$3.91

19

Screw Torx M6.81 X 30

250001007

$2.54

20

Flat Washer 8 mm, Stainless

250200175

$3.06

21

Sealing Washer

250200114

$4.44

24

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

27

Strap Retaining

270000933

$6.99

28

Strap Anchor

270000988

$10.28

30

Was 275500008 Hose 12 mm

219704356

$20.49

33

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

36

Cable Adaptor Ass'y

277001881

$19.99

41

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

43

BATTERY BASE ASS'Y - Call your local BRP dealership | Includes 70 to 70c

278003273

Unavailable

44

Flat Washer

279000336

$11.57

49

Black, Finition Plate

291001386

$10.99

50

U-Clamp

292000933

$59.49

65

Drain Neck Ass'y

292001317

$27.99

65a

Plastic Nut

292001825

$9.79

75

RH Sponson This part replaces 292001426.

292001871

$83.99

75

Sponson LH This part replaces 292001427.

292001872

$83.99

78

RH Spacer Sponson This part replaces 292001428.

292001873

$41.99

78

Spacer Sponson LH This part replaces 292001429.

292001874

$54.99

81

Not Available As Spare Parts

XXX

Unavailable

81

Not Available As Spare Parts

XXX

Unavailable

83

Not Available As Spare Parts

XXX

Unavailable

84

Not Available As Spare Parts

XXX

Unavailable

85

Square Head Stud

292001471

$15.99

86

Not Available As Spare Parts

XXX

Unavailable

89

Push Nut

292001503

$1.15

90

Not Available As Spare Parts

XXX

Unavailable

94

Drain Ass'y

292001580

$16.49

94a

Plastic Nut

292001825

$9.79

97

Plug Ass'y | Includes 300f to 300f2

292002022

$14.49

100

Bailer Pick-up Ass'y | Includes 540 to 540c

292001636

$25.99

106

Flat Washer 8 mm, Nylon

292001663

$1.47

159

Not Available As Spare Parts

XXX

Unavailable

161

Pop Rivet 3/16"

293150043

$2.09

162

Pop Rivet 3/16"

293150123

$4.29

166

Outer Hull Insert

293450309

$25.99

170

HULL INSERT - Call your local BRP dealership

293450355

$18.99

172

Fitting Elbow 90°

293710152

$18.49

173

Grommet

293720029

$1.59

174

Mount Dart

293730040

$1.04

176

Tie Wrap 94 mm | 4X4

293750001

$1.03

178

Tie Wrap 368 mm

293750008

$1.04

179

Tie-Rap 180 mm

414115200

$0.11

180

Tie Rap Mount

293750026

$3.09

186

Rubber Bumper

293830005

$8.09

187

Rubber Washer

293830037

$2.68
