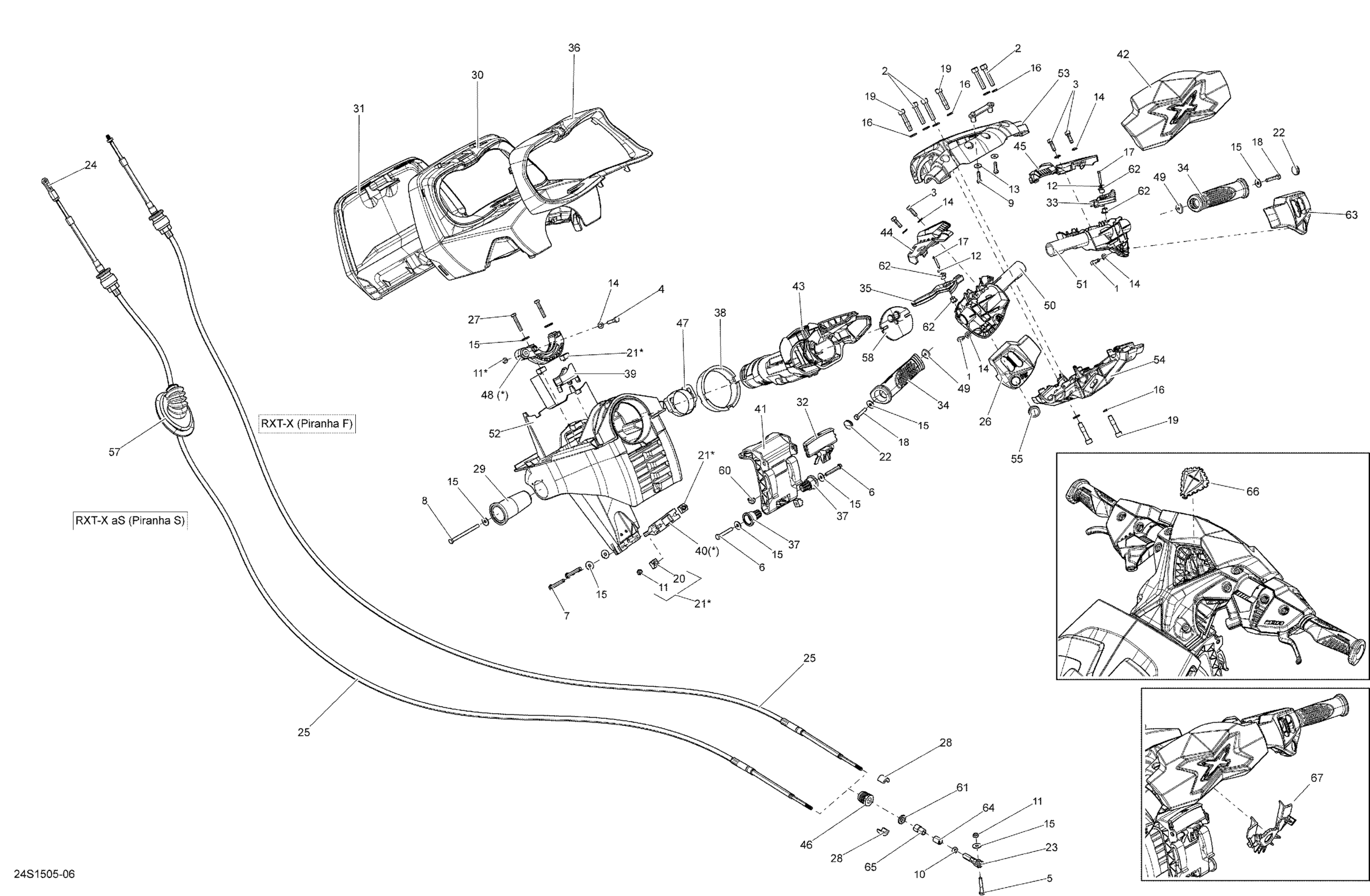

Sea-doo RXT-X 260 & RS. 2015 Steering 24S1506 Diagram

#

Description
Price

1

Socket Screw M6 X 16

205061660

$1.43

2

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

3

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.72

4

Hex. Screw M6 X 30

207063060

$1.73

5

Hex. Screw M6 X 35

207063560

$2.12

6

Hex. Screw M6 X 40

207064060

$1.61

7

Hex. Screw M6 X 50

207165060

$0.87

8

Hex Screw M6 X 80

207168060

$6.36

9

Hex. Screw 10-14 X 7/8”

211000023

$3.34

10

Hex. Nut 1/4"-28

211100056

$0.64

11

Elastic Stop Nut M6, Brass

232561200

$4.03

12

Flat Washer 4 mm, Stainless

234042600

$1.06

13

Flat Washer 5 mm, Stainless

234052600

$0.73

14

Stainless Flat Washer M6

234061600

$0.28

15

Flat Washer M6, Stainless

234062600

$0.73

16

Flat Washer M8, Stainless

234080600

$1.43

17

Hex. Flange Screw K40 X 25

241142560

$2.49

18

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.87

19

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.73

20

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$6.24

21

Housing Nut M6 | Included 550f to 550f2

269502408

$5.07

22

Black, Cap

277000203

$8.58

23

Ball Joint

277000775

$46.24

24

Ball Joint

277001180

$32.06

25

Steering Cable

277001602

$262.66

26

LH HOUSING COVER - Call your local BRP dealership

277001794

Unavailable

27

Hex. Screw M6 X 35

207163560

$1.34

28

Half Ring

277001527

$9.58

29

Steering Support Pivot

277001605

$17.13

30

Gauge Support

277001953

$55.19

31

Gauge Support Cover

277001613

$25.34

32

LOCK - Call your local BRP dealership

277001616

$15.64

33

Throttle Handle

277001944

$35.04

34

Handlebar Grip

277002286

$17.13

35

Reverse Handle

277001945

$39.52

36

Gauge Trim, Black

277001630

$49.97

37

Pivot

277001652

$14.27

38

Wear Ring

277001653

$11.18

39

Spacer

277001654

$13.09

40

Thrust Support Ass'y

277001655

$26.09

41

Handle Ass'y | Includes 780 to 780c

277001658

$123.85

42

Handle Pad

277001683

$82.06

43

Steering Colomn

277001807

$132.81

44

LH UPPER HOUSING - Call your local BRP dealership

277001686

Unavailable

45

Upper Housing RH

277001688

$98.48

46

Steering Cable Lock This part replaces 277000784.

277001729

$11.96

47

Wear Ring

277002318

Unavailable

48

Support Ass'y | Includes 460 to 460b

277002179

$20.12

49

Insert Grip Handle

277001863

$8.83

50

LH Lower Housing This part replaces 277001965.

277001950

$138.03

51

RH LOWER HOUSING - Call your local BRP dealership This part replaces 277001966.

277001951

Unavailable

52

Steering Support | Includes 710 to 710b

277001942

$103.70

53

FRONT EXTENSION BLOC - Call your local BRP dealership

277001909

Unavailable

54

REAR EXTENSION BLOCK - Call your local BRP dealership

277001926

Unavailable

55

Red, Knob Switch

277001887

$8.66

57

Not Available As Spare Parts

XXX

Unavailable

58

Grommet

293720086

$11.69

60

Rubber Bumper

293830005

$6.12

61

Rubber Washer

293830063

$1.73

62

Bushing

293900091

$3.84

63

RH Housing Cover

277001718

$117.88

64

Wiper Rod

277001582

$10.13

65

End Piece

277001583

$12.79

66

AESTHETIC CAP - Call your local BRP dealership

277001919

Unavailable

67

RADIO FREQUENCY KEY SUPPORT - Call your local BRP dealership

277001920

Unavailable
