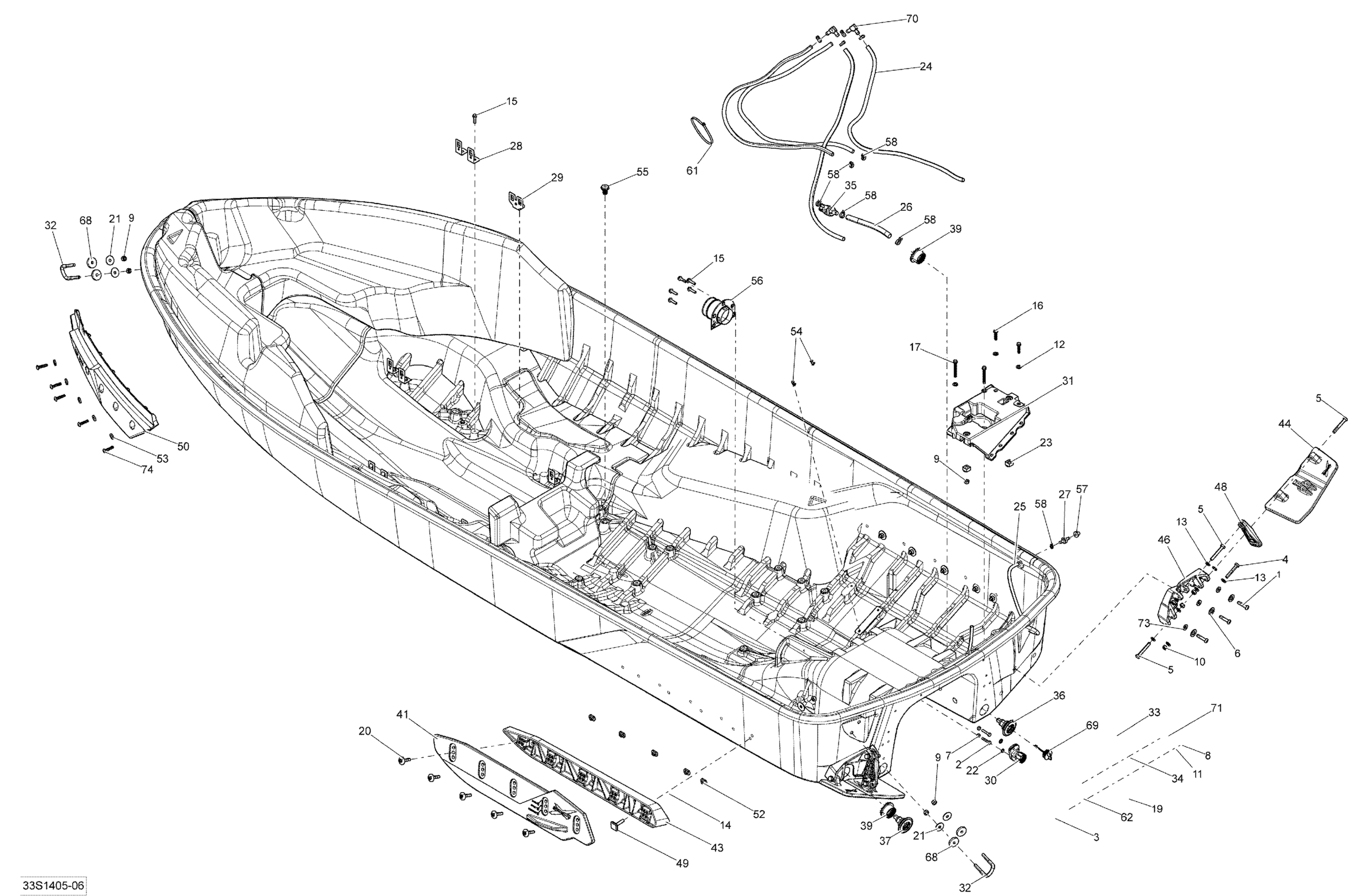

Sea-doo RXT-X 260 & RS. 2014 Hull _33S1406 Diagram

#

Description
Price

1

Not Available As Spare Parts

XXX

Unavailable

2

Hex. Screw M6 X 30

207063060

$1.89

4

Not Available As Spare Parts

XXX

Unavailable

5

Not Available As Spare Parts

XXX

Unavailable

6

Not Available As Spare Parts

XXX

Unavailable

7

Elastic Stop Nut M6, Brass

232561200

$4.23

9

Hex. Elastic Nut M8 Brass

232581200

$2.22

10

Not Available As Spare Parts

XXX

Unavailable

12

Flat Washer M8, Stainless

234080600

$1.48

13

Not Available As Spare Parts

XXX

Unavailable

14

Flat Washer 8 mm, Stainless

234082600

$2.43

15

Hex. Flange Screw M6.81 X 25, Plastite

243162560

$2.19

16

Hex. Flange Screw M6.81 X 30

243163060

$2.32

17

Hex. Flange Screw M6.81 X 55

243165560

$3.91

20

Torx-Head Screw M8 X 35 This part replaces 250000572.

250000994

$3.91

21

Flat Washer 8 mm, Stainless

250200175

$3.06

22

Sealing Washer

250200114

$4.44

23

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

24

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

25

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

26

Was 275500008 Hose 12 mm

219704356

$20.49

27

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

28

STRAP CLIP 90 - Call your local BRP dealership

275500743

Unavailable

29

Double Strap Clip 90°

275500798

$8.94

30

Cable Adaptor Ass'y

277001881

$19.99

31

Battery Base Ass'y

278002343

$65.99

32

U-Clamp

292000933

$59.49

35

Bailer Ass'y

292001310

$23.99

36

Drain Neck Ass'y

292001315

$27.99

37

Drain Neck Ass'y

292001317

$27.99

39

Bushing

292001371

$17.49

41

RH Sponson This part replaces 292001426.

292001871

$83.99

42

Black, Finition Plate

291001386

$10.99

43

Spacer Sponson LH This part replaces 292001429.

292001874

$54.99

44

Not Available As Spare Parts

XXX

Unavailable

46

Not Available As Spare Parts

XXX

Unavailable

48

Not Available As Spare Parts

XXX

Unavailable

49

Square Head Stud

292001471

$15.99

50

Not Available As Spare Parts

XXX

Unavailable

52

Push Nut

292001503

$1.15

53

Not Available As Spare Parts

XXX

Unavailable

54

Avdel Rivet 3/16"

293150037

$0.56

55

INSERT CAPUCHON M8 - Call your local BRP dealership

293450290

Unavailable

56

HULL INSERT - Call your local BRP dealership

293450306

Unavailable

57

Grommet

293720029

$1.59

58

Tie Wrap 94 mm | 4X4

293750001

$1.03

61

Tie Wrap 368 mm

293750008

$1.04

68

Rubber Washer

293830037

$2.68

69

Plug Drain Ass'y | Includes 310 to 310b

292002024

$13.49

70

ELBOW FITTING 90 - Call your local BRP dealership

293710117

Unavailable

73

Not Available As Spare Parts

XXX

Unavailable

74

Not Available As Spare Parts

XXX

Unavailable
