- RXT-X 260 & RS. 2014
07- Steering _24S1406

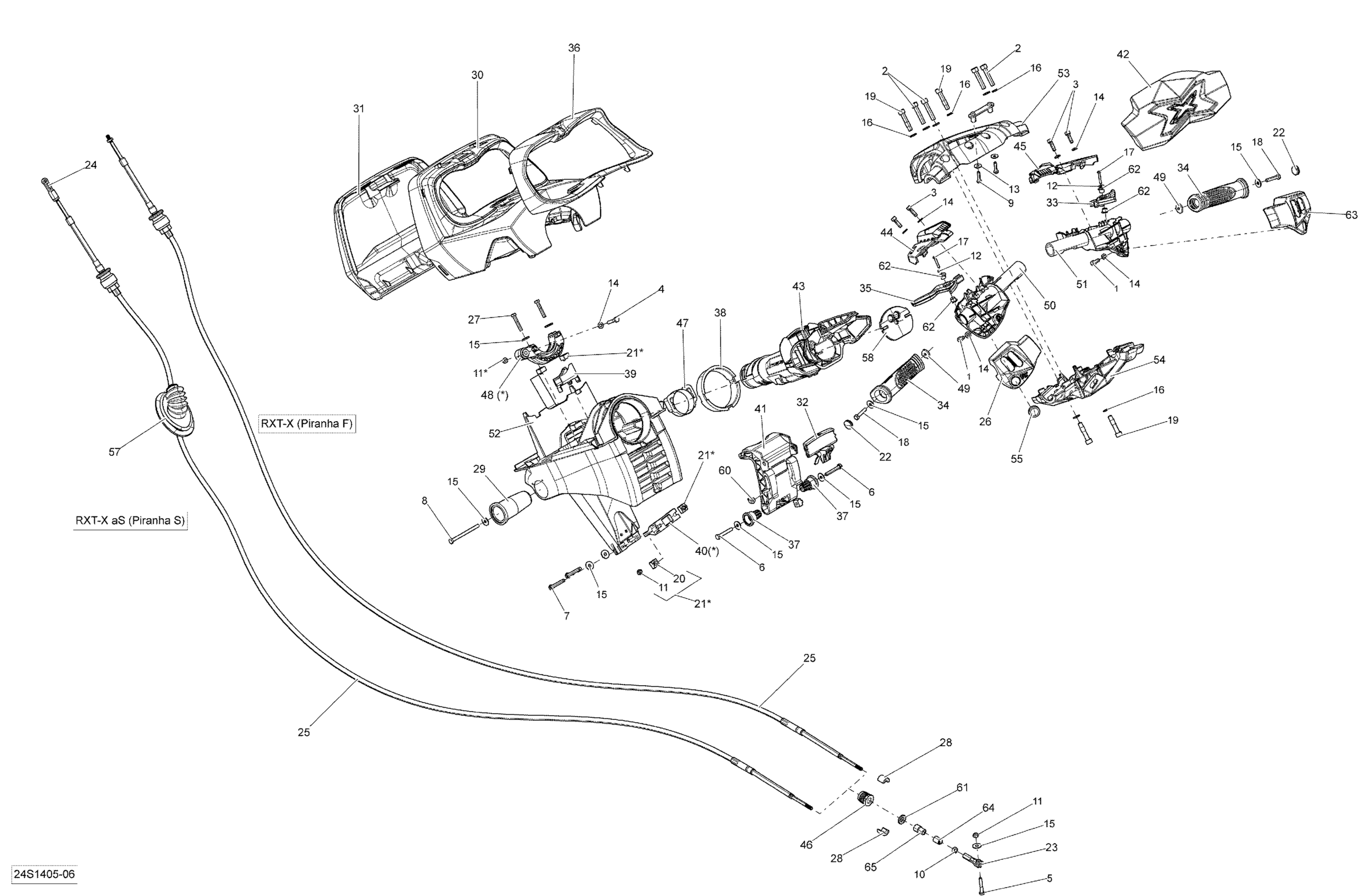

Sea-doo RXT-X 260 & RS. 2014 07- Steering _24S1406 Diagram
#
1
Socket Screw M6 X 16
205061660
$1.48
2
SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership
205084060
Unavailable
3
Socket Head Screw M6 X 20, Scotch Grip
205562060
$0.76
4
Hex. Screw M6 X 30
207063060
$1.89
5
Hex. Screw M6 X 35
207063560
$2.22
6
Hex. Screw M6 X 40
207064060
$1.69
7
Hex. Screw M6 X 50
207165060
$0.92
8
Hex Screw M6 X 80
207168060
$6.77
9
Hex. Screw 10-14 X 7/8”
211000023
$3.59
10
Hex. Nut 1/4"-28
211100056
$0.69
11
Elastic Stop Nut M6, Brass
232561200
$4.23
12
Flat Washer 4 mm, Stainless
234042600
$1.15
13
Flat Washer 5 mm, Stainless
234052600
$0.77
14
Stainless Flat Washer M6
234061600
$0.33
15
Flat Washer M6, Stainless
234062600
$0.77
16
Flat Washer M8, Stainless
234080600
$1.48
17
Hex. Flange Screw K40 X 25
241142560
$2.64
18
Hex. Screw M6 X 30, Scotch Grip
250000002
$0.92
19
Torx-Button M/S M8 X 40 Stlss S.Gri
250000845
$3.91
20
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
$7.86
21
Housing Nut M6 | Included 550f to 550f2
269502408
$6.74
22
Black, Cap
277000203
$9.39
23
Ball Joint
277000775
$51.99
24
Ball Joint
277001180
$35.99
25
Steering Cable
277001602
$285.99
26
LH HOUSING COVER - Call your local BRP dealership
277001794
Unavailable
27
Hex. Screw M6 X 35
207163560
$1.49
28
Half Ring
277001527
$10.37
29
Steering Support Pivot
277001605
$20.99
30
Gauge Support
277001953
$61.99
31
Gauge Support Cover
277001613
$28.99
32
LOCK - Call your local BRP dealership
277001616
$18.99
33
Throttle Handle
277001944
$38.99
34
Handlebar Grip
277002286
$19.99
35
Reverse Handle
277001945
$43.99
36
Gauge Trim, Black
277001630
$55.99
37
Pivot
277001652
$15.99
38
Wear Ring
277001653
$12.17
39
Spacer
277001654
$15.99
40
Thrust Support Ass'y
277001655
$28.99
41
Handle Ass'y | Includes 780 to 780c
277001658
$132.49
42
Handle Pad
277001683
$91.99
43
Steering Colomn
277001807
$149.99
44
LH UPPER HOUSING - Call your local BRP dealership
277001686
Unavailable
45
Upper Housing RH
277001688
$109.99
46
Steering Cable Lock This part replaces 277000784.
277001729
$13.22
47
Wear Ring
277002318
$15.99
48
Support Ass'y | Includes 460 to 460b
277002179
$22.49
49
Insert Grip Handle
277001863
$8.83
50
LH LOWER HOUSING - Call your local BRP dealership
277001884
Unavailable
51
RH LOWER HOUSING - Call your local BRP dealership This part replaces 277001966.
277001951
Unavailable
52
Steering Support | Includes 710 to 710b
277001942
$114.99
53
FRONT EXTENSION BLOC - Call your local BRP dealership
277001909
Unavailable
54
REAR EXTENSION BLOC - Call your local BRP dealership
277001910
Unavailable
55
Red, Knob Switch
277001887
$9.69
57
Not Available As Spare Parts
XXX
Unavailable
58
Grommet
293720086
$14.49
60
Rubber Bumper
293830005
$8.09
61
Rubber Washer
293830063
$1.90
62
Bushing
293900091
$4.52
63
RH Housing Cover
277001718
$134.99
64
Wiper Rod
277001582
$11.11
65
End Piece
277001583
$14.49
