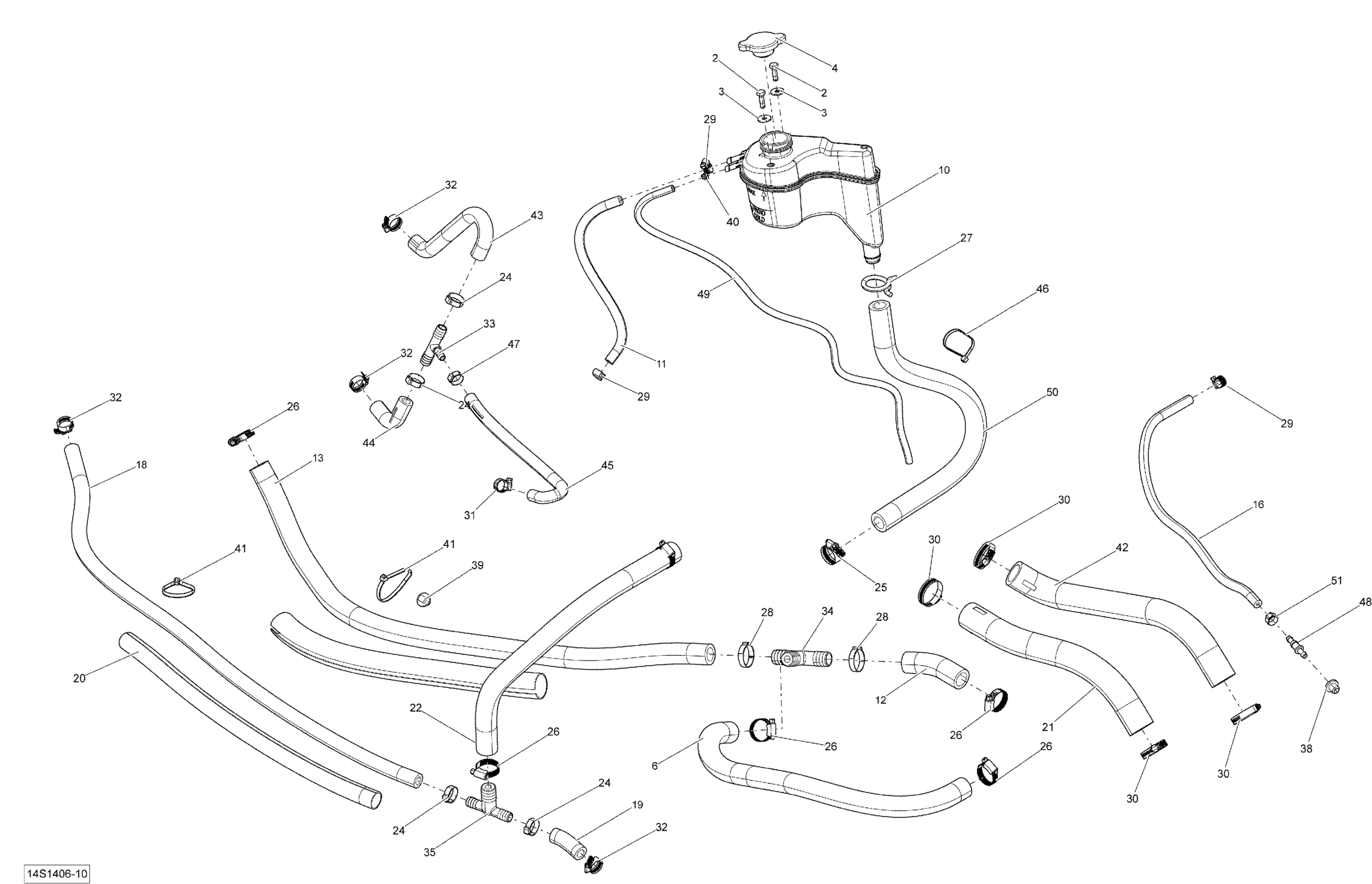

Sea-doo RXT-X 260 & RS. 2014 Cooling System _14S1406 Diagram

#

Description
Price

2

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

3

Flat Washer M6, Stainless

234062600

$0.77

4

Pressure Cap | Includes 720 to 720a

276000100

$25.99

6

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

10

Coolant Tank

276000265

$134.99

11

Was 275500549 Hose 1/4"

219704357

$194.99

12

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

13

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

16

Was 275500549 Hose 1/4"

219704357

$194.99

18

Was 276000001 Hose 12.5 mm

219704394

$51.99

19

Was 276000001 Hose 12.5 mm

219704394

$51.99

20

Tubing 25 MM 1000MM Long

219704402

$15.99

21

Radiator Hose

276000241

$32.99

22

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

24

Oetiker Clamp

293650012

$7.49

25

Tridon Gear Clamp

293650019

$5.82

26

Tridon Gear Clamp

293650051

$4.19

27

Spring Clamp

293650115

$3.09

29

Tridon Gear Clamp

293650170

$1.99

30

Tridon Gear Clamp

293650185

$13.99

31

Tridon Gear Clamp

293650171

$3.09

32

Tridon Gear Clamp

293650172

$3.09

33

T-Fitting

293710116

$17.62

34

T-Fitting

293710131

$15.87

35

T-Fitting

293710132

$12.65

38

Grommet

293720029

$1.59

39

Mount Dart

293730040

$1.04

40

Tie Wrap 94 mm | 4X4

293750001

$1.03

41

Tie Wrap 368 mm

293750008

$1.04

42

Radiator Hose This part replaces 276000240.

276000491

$49.99

43

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$19.49

44

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$19.49

45

Formed Hose | Without Catalyst

276000246

$19.49

46

Tie-Rap 180 mm

414115200

$0.11

47

Oetiker Clamp | Europe

293650030

$5.19

48

Male Connector

414518500

$4.23

49

Polyurethane Hose 10000Mm Long

219704410

$56.99

50

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

51

Oetiker Gear Clamp

293650025

$3.09
