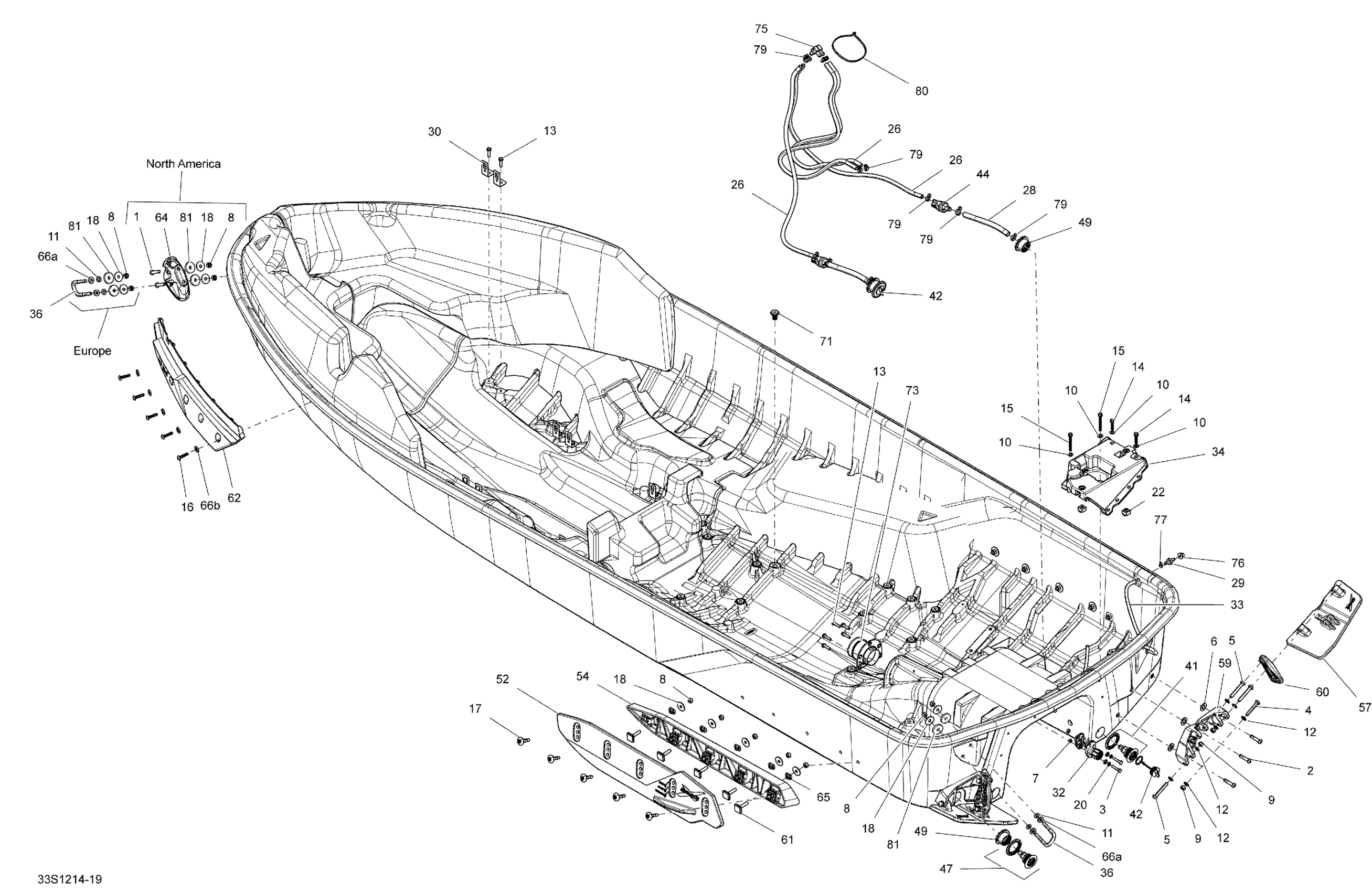

Sea-doo RXT-X 260 & RS. 2012 09- Hull Diagram
#
1
SOCKET SCREW, M8 X 35 - Call your local BRP dealership
205483560
Unavailable
2
Not Available As Spare Parts
XXX
Unavailable
3
Hex. Screw M6 X 30
207063060
$1.89
4
Not Available As Spare Parts
XXX
Unavailable
5
Not Available As Spare Parts
XXX
Unavailable
6
Not Available As Spare Parts
XXX
Unavailable
7
Elastic Stop Nut M6, Brass
232561200
$4.23
8
Hex. Elastic Nut M8 Brass
232581200
$2.22
9
Not Available As Spare Parts
XXX
Unavailable
10
Flat Washer M8, Stainless
234080600
$1.48
11
Flat Washer 8 mm, Nylon
234081100
$1.39
12
Not Available As Spare Parts
XXX
Unavailable
13
Hex. Flange Screw M6.81 X 25, Plastite
243162560
$2.19
14
Hex. Flange Screw M6.81 X 30
243163060
$2.32
15
Hex. Flange Screw M6.81 X 55
243165560
$3.91
16
Not Available As Spare Parts
XXX
Unavailable
17
Torx-Head Screw M8 X 35 This part replaces 250000572.
250000994
$3.91
18
Flat Washer 8 mm, Stainless
250200175
$3.06
20
Sealing Washer
250200114
$4.44
22
Elastic Nut Housing M8 | Included 10a6 to 10a6a
269501943
$6.67
26
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
28
Was 275500008 Hose 12 mm
219704356
$20.49
29
CHECK VALVE - Call your local BRP dealership This part replaces 275500167.
275500499
Unavailable
30
STRAP CLIP 90 - Call your local BRP dealership
275500743
Unavailable
32
Cable Adaptor Ass'y
277001881
$19.99
33
HOSE 6 MM - Call your local BRP dealership
275500446
Unavailable
34
Battery Base Ass'y
278002343
$65.99
36
U-Clamp
292000933
$59.49
41
Drain Neck Ass'y
292001315
$27.99
42
Plug Drain Ass'y | Includes 310 to 310b
292002024
$13.49
44
Bailer Ass'y
292001310
$23.99
47
Drain Neck Ass'y
292001317
$27.99
49
Bushing
292001371
$17.49
52
RH Sponson This part replaces 292001426.
292001871
$83.99
52
Sponson LH This part replaces 292001427.
292001872
$83.99
54
RH Spacer Sponson This part replaces 292001428.
292001873
$41.99
54
Spacer Sponson LH This part replaces 292001429.
292001874
$54.99
57
Not Available As Spare Parts
XXX
Unavailable
59
Not Available As Spare Parts
XXX
Unavailable
60
Not Available As Spare Parts
XXX
Unavailable
61
Square Head Stud
292001471
$15.99
62
Not Available As Spare Parts
XXX
Unavailable
64
BOW CUP KIT - Call your local BRP dealership
295100586
Unavailable
65
Push Nut
292001503
$1.15
71
INSERT CAPUCHON M8 - Call your local BRP dealership
293450290
Unavailable
73
HULL INSERT - Call your local BRP dealership
293450306
Unavailable
75
ELBOW FITTING 90 - Call your local BRP dealership
293710117
Unavailable
76
Grommet
293720029
$1.59
77
Tie Wrap 94 mm | 4X4
293750001
$1.03
79
Tie Wrap 94 mm | 4X4
293750001
$1.03
80
Tie Wrap 368 mm
293750008
$1.04
81
Rubber Washer
293830037
$2.68
66a
Flat Washer M8.5 x 18
293050001
$3.07
66b
Not Available As Spare Parts
XXX
Unavailable
