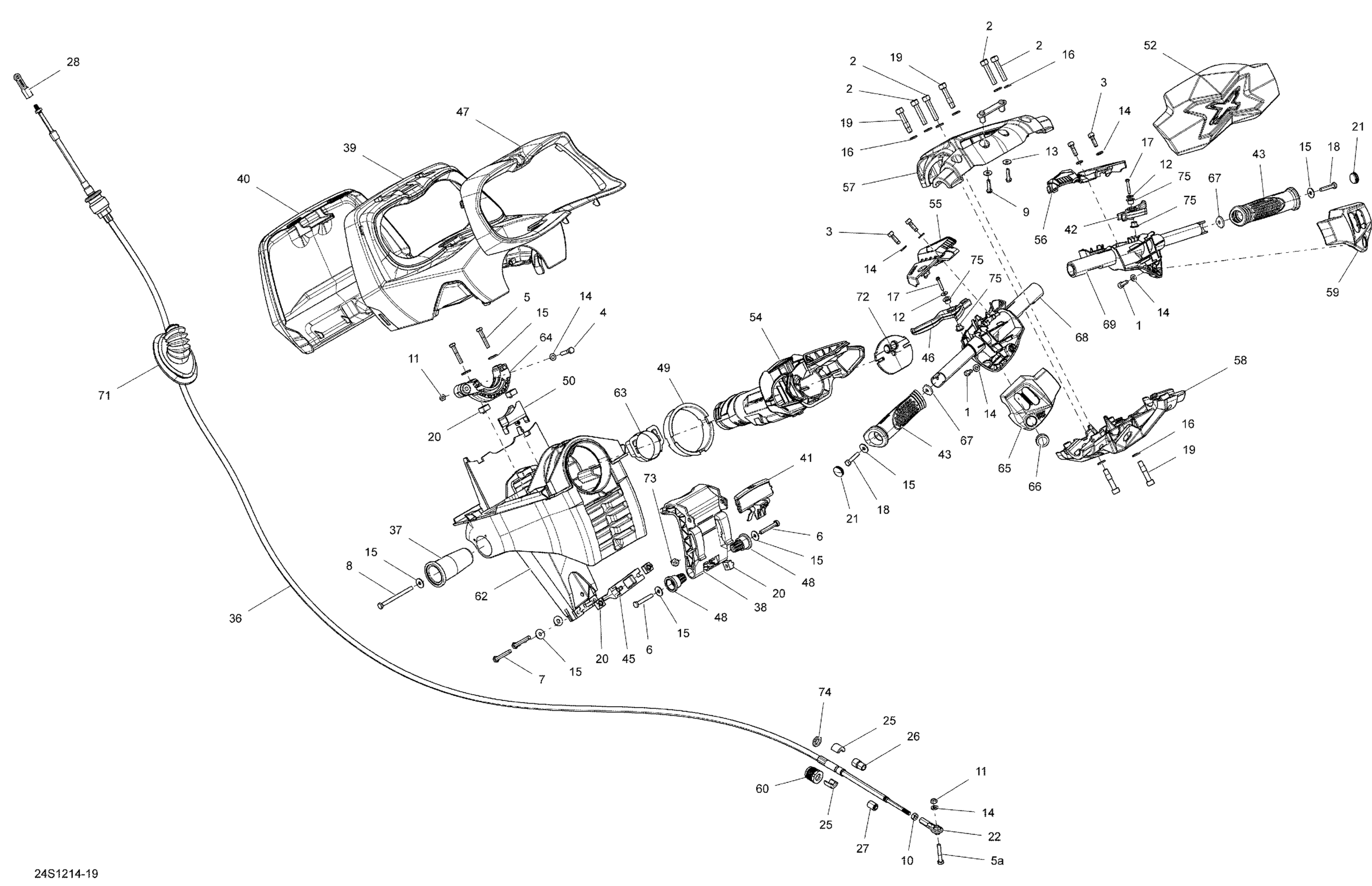

Sea-doo RXT-X 260 & RS. 2012 Steering Diagram

#

Description
Price

1

Socket Screw M6 X 16

205061660

$1.48

2

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

3

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.76

4

Hex. Screw M6 X 30

207063060

$1.89

5

Hex. Screw M6 X 35

207163560

$1.49

6

Hex. Screw M6 X 40

207064060

$1.69

7

Hex. Screw M6 X 50

207165060

$0.92

8

Hex Screw M6 X 80

207168060

$6.77

9

Hex. Screw 10-14 X 7/8”

211000023

$3.59

10

Hex. Nut 1/4"-28

211100056

$0.69

11

Elastic Stop Nut M6, Brass

232561200

$4.23

12

Flat Washer 4 mm, Stainless

234042600

$1.15

13

Flat Washer 5 mm, Stainless

234052600

$0.77

14

Stainless Flat Washer M6

234061600

$0.33

15

Flat Washer M6, Stainless

234062600

$0.77

16

Flat Washer M8, Stainless

234080600

$1.48

17

Hex. Flange Screw K40 X 25

241142560

$2.64

18

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.92

19

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.91

20

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

21

Black, Cap

277000203

$9.39

22

Ball Joint

277000775

$51.99

25

Half Ring

277001527

$10.37

26

End Piece

277001583

$14.49

27

Wiper Rod

277001582

$11.11

28

Ball Joint

277001180

$35.99

36

Steering Cable

277001602

$285.99

37

Steering Support Pivot

277001605

$20.99

38

Handle Ass'y | Includes 780 to 780c

277001658

$132.49

39

Gauge Support

277001953

$61.99

40

Gauge Support Cover

277001613

$28.99

41

LOCK - Call your local BRP dealership

277001616

$18.99

42

Throttle Handle

277001944

$38.99

43

Handlebar Grip

277002286

$19.99

45

Thrust Support Ass'y

277001655

$28.99

46

Reverse Handle

277001945

$43.99

47

Gauge Trim, Black

277001630

$55.99

48

Pivot

277001652

$15.99

49

Wear Ring

277001653

$12.17

50

Spacer

277001654

$15.99

52

Handle Pad

277001683

$91.99

54

Steering Colomn

277001807

$149.99

55

LH UPPER HOUSING - Call your local BRP dealership

277001686

Unavailable

56

Upper Housing RH

277001688

$109.99

57

FRONT EXTENSION BLOC - Call your local BRP dealership

277001909

Unavailable

58

REAR EXTENSION BLOC - Call your local BRP dealership

277001910

Unavailable

59

RH Housing Cover

277001718

$134.99

60

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

62

Steering Support | Includes 710 to 710b

277001942

$114.99

63

Wear Ring

277002318

$15.99

64

Support Ass'y | Includes 460 to 460b

277002179

$22.49

65

LH HOUSING COVER - Call your local BRP dealership

277001794

Unavailable

66

Switch Knob, Red

277001802

$10.59

67

Insert Grip Handle

277001863

$8.83

68

LH LOWER HOUSING - Call your local BRP dealership

277001884

Unavailable

69

RH LOWER HOUSING - Call your local BRP dealership This part replaces 277001966.

277001951

Unavailable

71

Grommet | Model with Suspension

293720083

$20.99

72

Grommet

293720086

$14.49

73

Rubber Bumper

293830005

$8.09

74

Rubber Washer

293830063

$1.90

75

Bushing

293900091

$4.52

5a

Hex. Screw M6 X 35

207063560

$2.22
