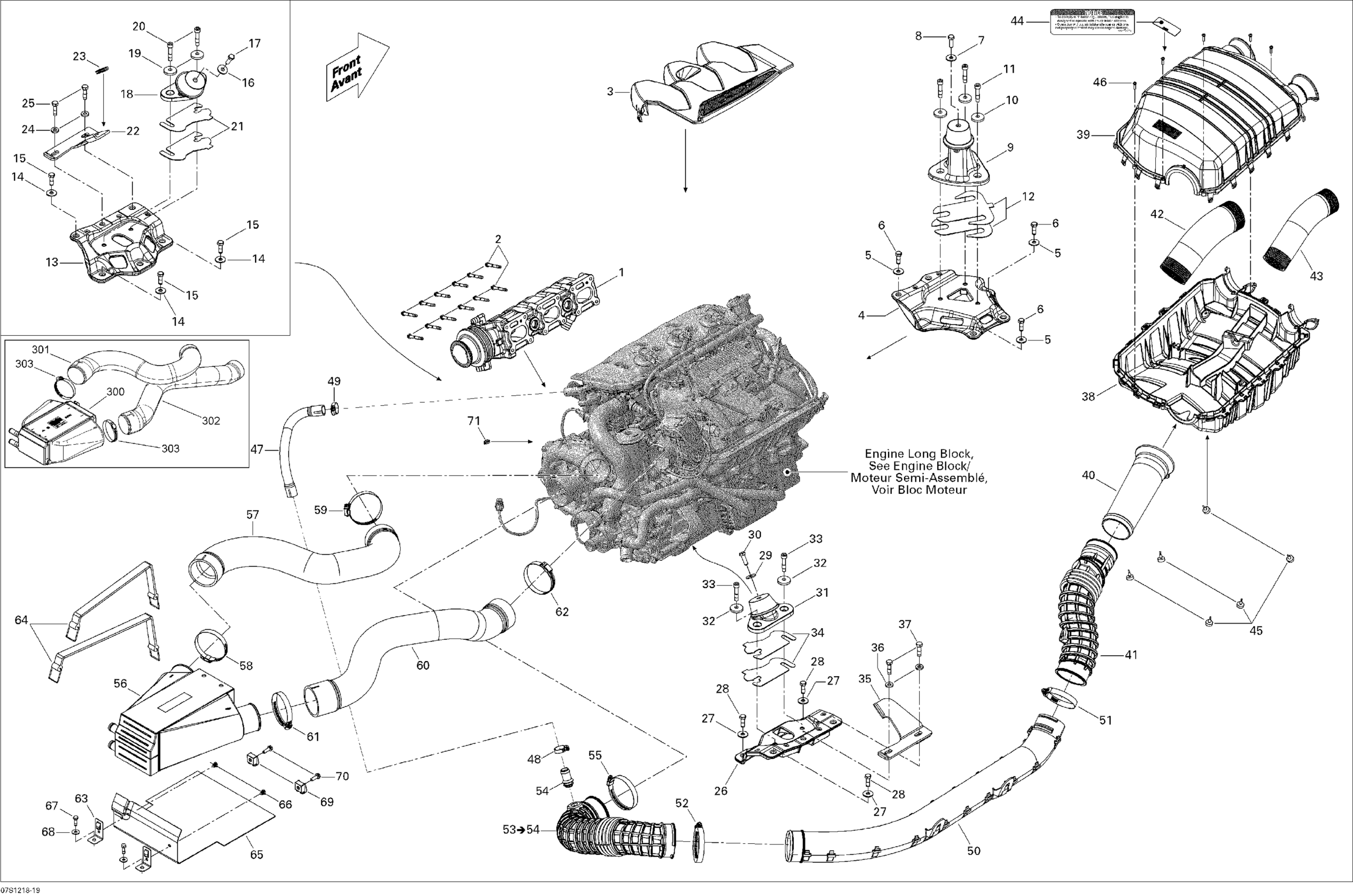

Sea-doo RXT-X 260 & RS. 2012 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$651.92

2

Torx Flange Screw M6 X 45

420641198

$3.38

3

Engine Cover | Model RXT 260, RXT 260 RS

270000804

$64.15

4

SPACER - Call your local BRP dealership

270000767

Unavailable

5

Flat Washer 8 mm, Stainless

234082600

$1.98

6

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

$3.25

7

Flat Washer 8 mm, Stainless

234082600

$1.98

8

Hex. Screw M8 X 25, Scotch Grip

207382560

$1.98

9

Rubber Mount

270000886

$98.77

10

Cone Washer

250200018

$4.64

11

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.25

12

Shim 1.3 mm

270000770

$12.86

13

SPACER - Call your local BRP dealership

270000763

Unavailable

14

Flat Washer 8 mm, Stainless

234082600

$1.98

15

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

$3.25

16

Flat Washer 8 mm, Stainless

234082600

$1.98

17

Hex. Screw M8 X 25, Scotch Grip

207382560

$1.98

18

Engine Support Ass'y

270001081

$84.47

19

Cone Washer

250200018

$4.64

20

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.25

21

Shim 1.3 mm

270000762

$9.04

22

LH STOPPER - Call your local BRP dealership

270000796

Unavailable

23

TRIM, BLACK - Call your local BRP dealership

204610371

Unavailable

24

Flat Washer M8.5 x 18

293050001

$1.29

25

Hex. Screw M8 X 30, Scotch Grip

250000526

$0.64

26

Spacer

270000766

$73.10

27

Flat Washer 8 mm, Stainless

234082600

$1.98

28

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

$3.25

29

Flat Washer 8 mm, Stainless

234082600

$1.98

30

Hex. Screw M8 X 25, Scotch Grip

207382560

$1.98

31

Engine Support Ass'y

270001081

$84.47

32

Cone Washer

250200018

$4.64

33

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.25

34

Shim 1.3 mm

270000762

$9.04

35

RH Stopper

270000799

Unavailable

36

Flat Washer M8.5 x 18

293050001

$1.29

37

Hex. Screw M8 X 30, Scotch Grip

250000526

$0.64

38

SILENCER_INTAKE LWR - Call your local BRP dealership | Model RXT 260, RXT 260 RS

273000356

Unavailable

39

SILENCER_INTAKE UP - Call your local BRP dealership | Model RXT 260, RXT 260 RS

273000372

Unavailable

40

Intake Hose

273000359

$44.00

41

HOSE CONNECTOR - Call your local BRP dealership | Engine 1500 HO ACE, 1630 ACE HO

273000322

Unavailable

42

Air Silencer Hose

273000290

$20.12

43

AIR SILENCER TUBE - Call your local BRP dealership | Model RXT 260, RXT 260 RS

273000299

Unavailable

44

Air Silencer Notice Decal

219903177

Unavailable

45

Rubber Stopper

708000759

$3.61

46

Flange Torx Screw K40 X 16

250000287

$1.74

47

Formed Hose

270000864

$9.81

48

Tridon Gear Clamp

293650051

$3.61

49

Tridon Gear Clamp

293650051

$3.61

50

HOSE INTAKE - Call your local BRP dealership | Engine 1500 HO ACE, 1630 ACE HO

273000233

Unavailable

51

Tridon Clamp

293650179

$8.81

52

Tridon Clamp

293650179

$8.81

53

Hose Intake, Rear | Model GTR

273000328

$46.12

54

Breather Valve

273000234

$10.63

55

Tridon Clamp

293650179

$8.81

56

Intercooler

276000273

Unavailable

57

Inlet Hose This part replaces 273000282.

273000404

$55.87

58

Tridon Clamp

293650179

$8.81

59

Tridon Clamp

293650179

$8.81

60

Outlet Hose This part replaces 273000300.

273000405

$73.42

61

Tridon Clamp

293650179

$8.81

62

Tridon Clamp

293650179

$8.81

63

STRAP CLIP 90 - Call your local BRP dealership

275500743

Unavailable

64

Fuel Tank Strap

293850093

$16.87

65

RUBBER PAD - Call your local BRP dealership | Engine 1503 HO 4-TEC

293830146

Unavailable

66

Black, Dart

293730016

$6.94

67

Hex. Flange Screw M6.81 x 20

243162060

$3.30

68

Flat Washer M6, Stainless

234062600

$0.64

69

Strap Anchor

270000854

$5.30

70

Hex. Flange Screw M6.81 x 20

243162060

$3.30

71

Tie Wrap 142 mm

293750002

$0.88

300

Intercooler | Model GTR

276000397

$380.87

301

Formed Hose | Engine 1503 HO 4-TEC

273000361

$85.04

302

Formed Hose | Engine 1503 HO 4-TEC

273000362

$73.42

303

Tridon Gear Clamp

293650244

$7.22
