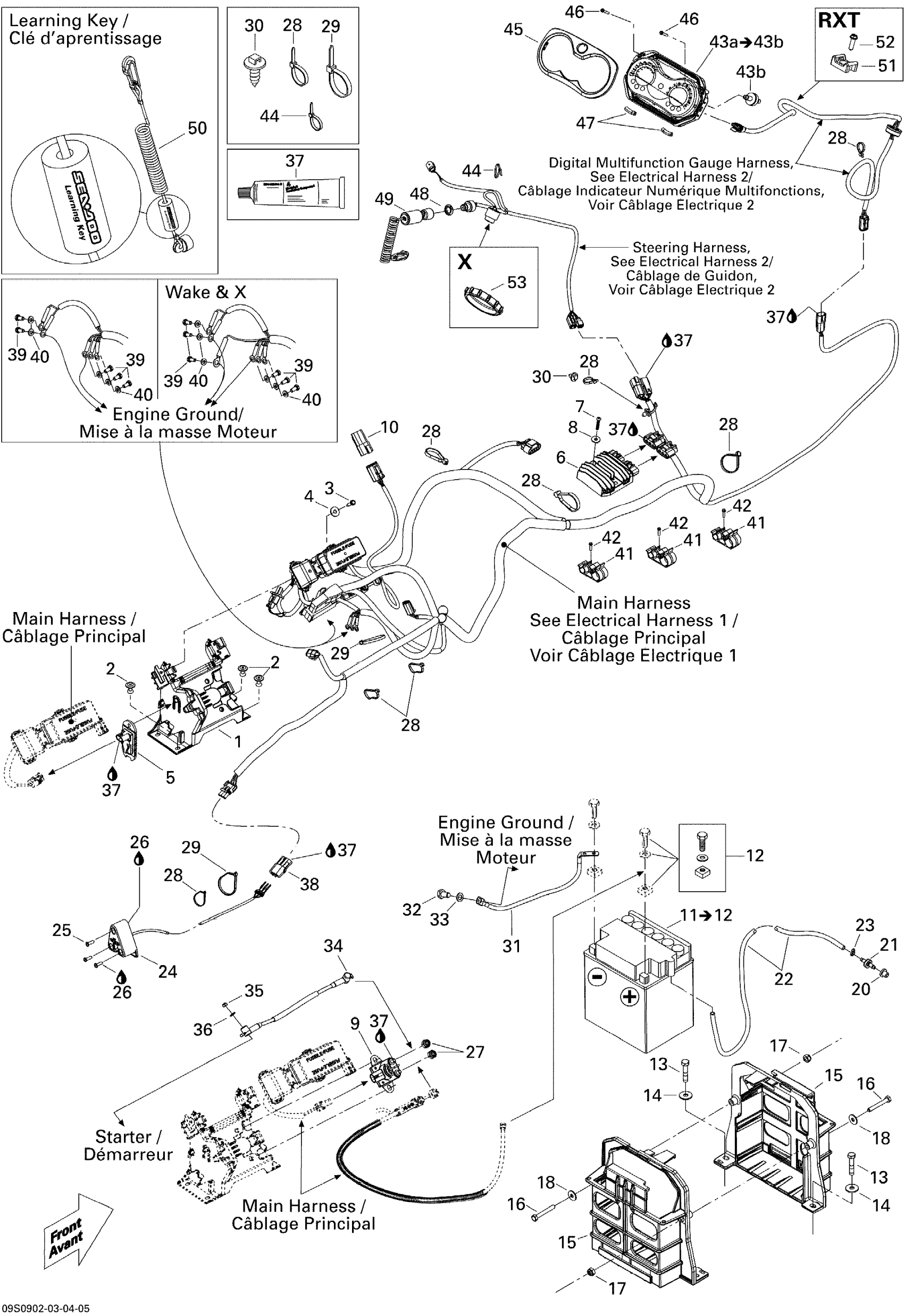

Sea-doo RXT-X 255 and 255 RS, 2009 Electrical System Diagram

#

Description
Price

1

MODULE SUPPORT - Call your local BRP dealership

278002699

Unavailable

2

Pop Rivet 3/16"

293150123

$4.29

3

Hex. Screw 10-14 X 7/8”

211000023

$3.59

4

Flat Washer M6, Stainless

234062600

$0.77

5

Interrupter T.O.P.S.

278001992

$74.49

6

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

7

TORX SCREW 10-14 X 1-1/8 - Call your local BRP dealership

250000236

Unavailable

8

Flat Washer M6, Stainless

234062600

$0.77

9

Starter Relay

278003012

$42.49

10

Diagnostic Connector

278002704

$19.49

11

Battery, 30 Amperes

278001882

$184.01

12

Battery Bolt Kit

250000282

$7.29

13

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.24

14

Flat Washer 8 mm, Stainless

234082600

$2.43

15

Battery Support

278003306

$20.99

16

Hex. Screw M6 X 45

207164560

$1.89

17

Elastic Stop Nut M6, Brass

232561200

$4.23

18

Flat Washer M6, Stainless

234062600

$0.77

20

Grommet

293720029

$1.59

21

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

22

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

23

Tie Wrap 94 mm | 4X4

293750001

$1.03

24

Speed Sensor

278001993

$169.99

25

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

26

Silicone Sealant 51388, 300 ml

296000309

$36.99

27

Elastic Stop Nut M6, Brass

232561200

$4.23

28

Tie-Rap 180 mm

414115200

$0.11

29

Tie Wrap 368 mm

293750008

$1.04

30

Mount Dart

293730040

$1.04

31

GROUND CABLE - Call your local BRP dealership

278002176

Unavailable

32

Hex. Screw M10 X 20, Scotch Grip

207302060

$4.02

33

Flat Washer 10 mm, Stainless

234000600

$1.46

34

STARTER CABLE - Call your local BRP dealership

278002265

Unavailable

35

Elastic Stop Nut M6, Brass

232561200

$4.23

36

Stainless Flat Washer M6

234061600

$0.33

37

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

38

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

39

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

40

Stainless Flat Washer M6

234061600

$0.33

41

RETAINER - Call your local BRP dealership

275500553

Unavailable

42

Hex. Flange Screw K40 X 16

241141660

$1.48

43a

Digital Multifunction Gauge | SERV

278002270

$1.00

43b

Check Valve

275500398

$10.99

44

Tie Wrap 142 mm

293750002

$1.25

45

Gauge Bezel, Chrome

278002144

$38.99

46

Hex. Flange Screw K40 X 25

241142560

$2.64

47

TRIM - Call your local BRP dealership

293830113

Unavailable

48

Safety Nut (DESS Switch)

278002963

$3.28

49

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$84.99

50

SAFETY LANYARD, LEARNING KEY - Call your local BRP dealership

278002406

$53.99

51

Tie Rap Mount

293750026

$3.09

52

Hex. Flange Screw K40 X 13

241141360

$0.67

53

Plastic Nut

278002291

$9.32
