09- Body, Front View

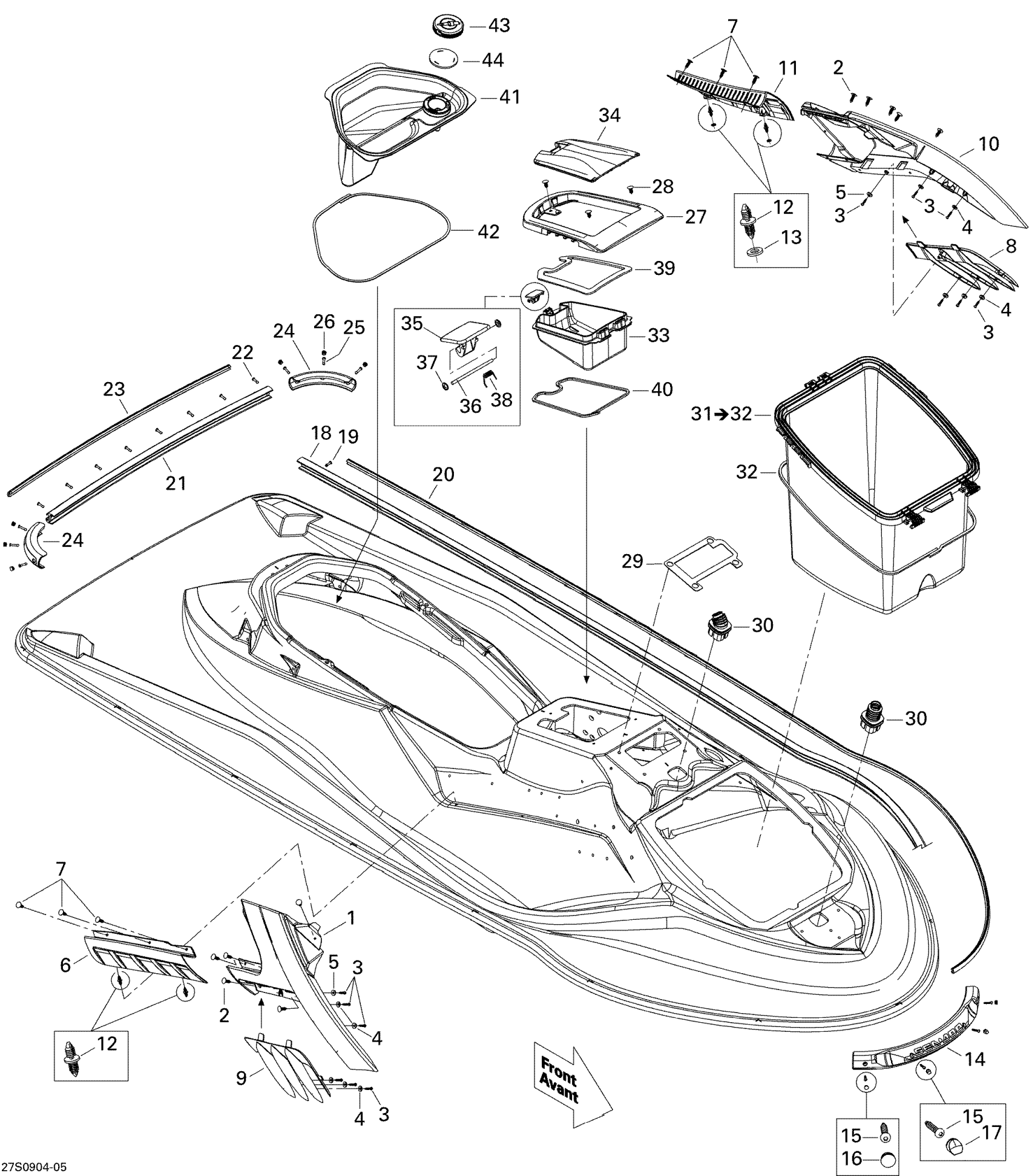

Sea-doo RXT-X 255 and 255 RS, 2009 09- Body, Front View Diagram
#
1
RH SIDE MOULDING - Call your local BRP dealership | Bright Yellow Model
269501515
Unavailable
2
Black, Dart
293730006
$0.99
3
Hex. Flange Screw K40 X 25
241142560
$2.64
4
WASHER 4.3 MM, NYLON - Call your local BRP dealership
250200055
Unavailable
5
Flat Washer 4 mm, Stainless
234042600
$1.15
6
RH SIDE GRILL - Call your local BRP dealership | Bright Yellow Model
269501518
Unavailable
7
Black, Dart
293730006
$0.99
8
RH SIDE MOULDING, CHROME - Call your local BRP dealership | Silver Metallic Model
269501406
Unavailable
9
LH SIDE MOULDING, CHROME - Call your local BRP dealership | Silver Metallic Model
269501408
Unavailable
10
LH SIDE MOULDING - Call your local BRP dealership | Bright Yellow Model
269501516
Unavailable
11
LH SIDE GRILL - Call your local BRP dealership | Bright Yellow Model
269501517
Unavailable
12
DART, DOUBLE - Call your local BRP dealership
293730008
Unavailable
13
Seal
293200099
Unavailable
14
BUMPER NOSE, BLACK - Call your local BRP dealership
291001942
Unavailable
15
TORX SCREW 10-14 X 1-1/8 - Call your local BRP dealership
250000236
Unavailable
16
Bumper Plug, Black
291001519
$5.49
17
Bumper Plug, Black
291001040
$7.39
18
Black, Side Bumper
204050270
$179.99
19
Pop Rivet 3/16"
293150005
$0.52
20
SIDE BUMPER TRIM - Call your local BRP dealership
204050271
Unavailable
21
REAR BUMPER, BLACK - Call your local BRP dealership
291002242
Unavailable
22
Pop Rivet 3/16"
293150005
$0.52
23
Side Bumper Trim
291002077
Unavailable
24
Bumper Corner
291002244
$48.99
25
Pop Rivet 3/16"
293150013
$1.37
26
Bumper Plug, Black
291000339
$2.99
27
Cover Trim, Black
269501031
$53.99
28
Black, Dart
293730006
$0.99
29
GASKET - Call your local BRP dealership
293250187
Unavailable
30
GROMMET - Call your local BRP dealership
293720042
Unavailable
31
STORAGE BOX - Call your local BRP dealership
269501583
Unavailable
32
Gasket 1000Mm Long
219704374
$2.01
33
GLOVE BOX - Call your local BRP dealership
269500968
Unavailable
34
GLOVE BOX DOOR - Call your local BRP dealership
269501648
Unavailable
35
Latch, Black
269500553
$21.99
36
Pin
211400008
$9.10
37
Push Nut | Not shown
211100002
$2.19
38
Latch Spring
291000922
$7.39
39
GASKET - Call your local BRP dealership
293250126
Unavailable
40
GASKET - Call your local BRP dealership
293250127
Unavailable
41
Not Available As Spare Parts
XXX
Unavailable
42
Not Available As Spare Parts
XXX
Unavailable
43
Not Available As Spare Parts
XXX
Unavailable
44
Not Available As Spare Parts
XXX
Unavailable
