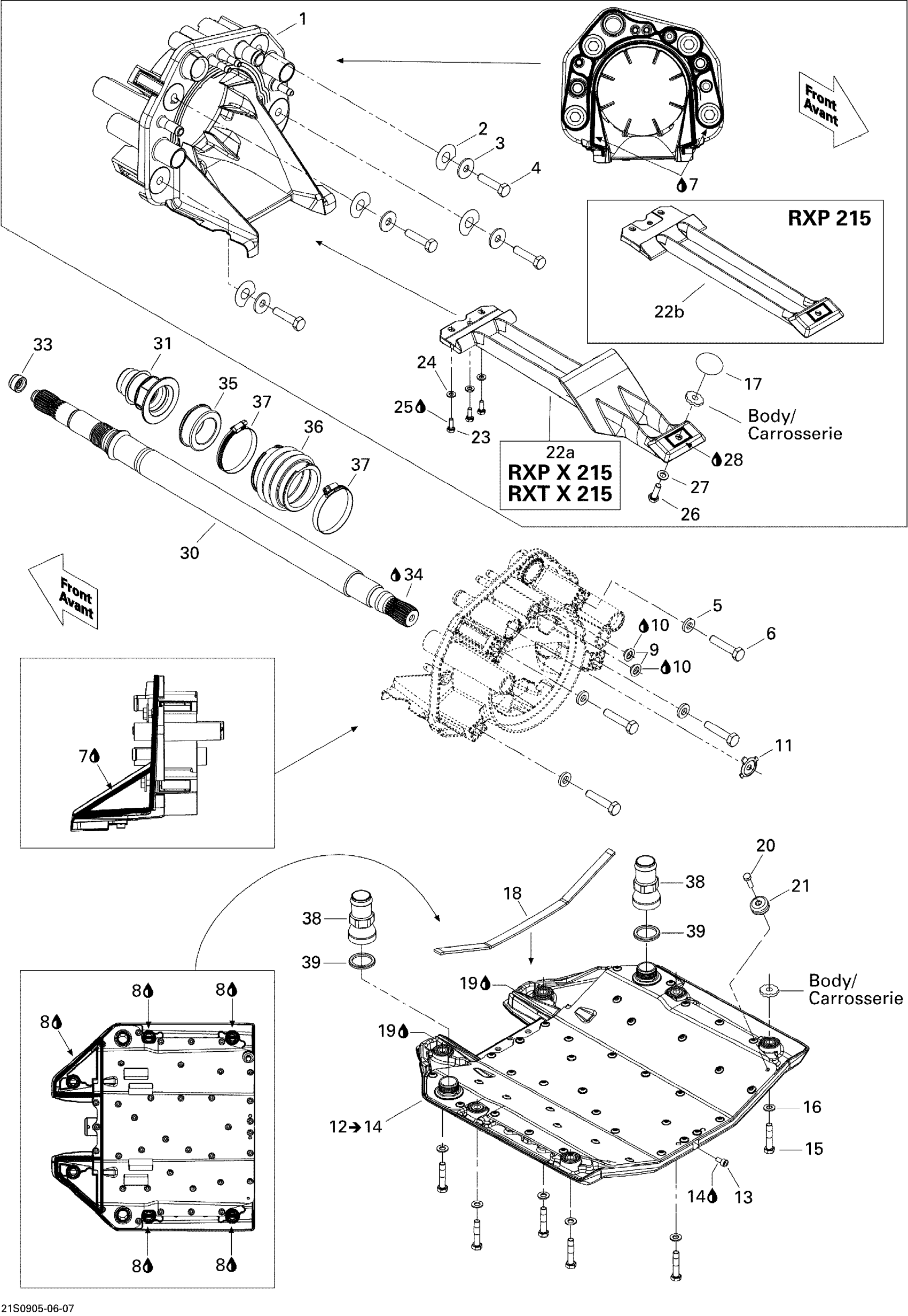

Sea-doo RXT-X 255 and 255 RS, 2009 Propulsion Diagram

#

Description
Price

1

PUMP SUPPORT - Call your local BRP dealership

271001579

Unavailable

2

Shim 0.3 mm

272000053

$11.49

3

Flat Washer 10 mm, Stainless

234002600

$2.22

4

HEX. SCREW M10 X 45, SCOTCH GRIP - Call your local BRP dealership

250000189

Unavailable

5

Flat Washer

211200051

$1.68

6

HEX. SCREW M10 X 50, SCOTCH GRIP - Call your local BRP dealership

250000188

Unavailable

7

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

8

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

9

Watertight Seal

293250084

$7.49

10

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

11

Reducer, Green This part replaces 271001586.

271002029

$16.49

12

Riding Plate Ass'y | Includes 9 to 12

271001650

$312.49

13

Socket Drain Plug M6 X 12

250500005

$16.49

14

Was 293800013 Loctite 56765

219704454

$65.99

15

Hex. Screw M8 X 40, Scotch Grip

250000230

$2.53

16

Stainless, Flat Washer 8 mm

234081600

$0.55

17

PROTECTOR DISK - Call your local BRP dealership

293830047

$1.99

18

Gasket, Neoprene 2000Mm Long

219704476

$15.36

19

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

20

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

21

Anode Zinc

271001813

$18.99

22b

Not Available As Spare Parts

XXX

Unavailable

22a

PUMP GRATE - Call your local BRP dealership

271001582

$114.99

22a

PUMP GRATE - Call your local BRP dealership | International

271001658

Unavailable

23

Hex. Screw M6 X 16

207161660

$1.59

24

Stainless Flat Washer M6

234061600

$0.33

25

Loctite 271, 10 ml

293800005

$26.99

26

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

27

Stainless, Flat Washer 8 mm

234081600

$0.55

28

Silicone Sealant 51388, 300 ml

296000309

$36.99

30

Drive Shaft

271001627

Unavailable

31

RING SUPPORT - Call your local BRP dealership This part replaces 271001609.

271001728

$98.99

33

Drive Shaft Plug

272000173

$8.68

34

Synthetic Grease, 400 G

293550010

Unavailable

35

CARBON RING - Call your local BRP dealership | Not Available. Ref Bulletin 2019-4

271001420

Unavailable

36

Bellow This part replaces 271001422.

271001933

$23.49

37

Norma Clamp

293650079

$11.60

38

Straight Plastic Fitting

293710111

$8.47

39

O-Ring

293300121

$8.32
