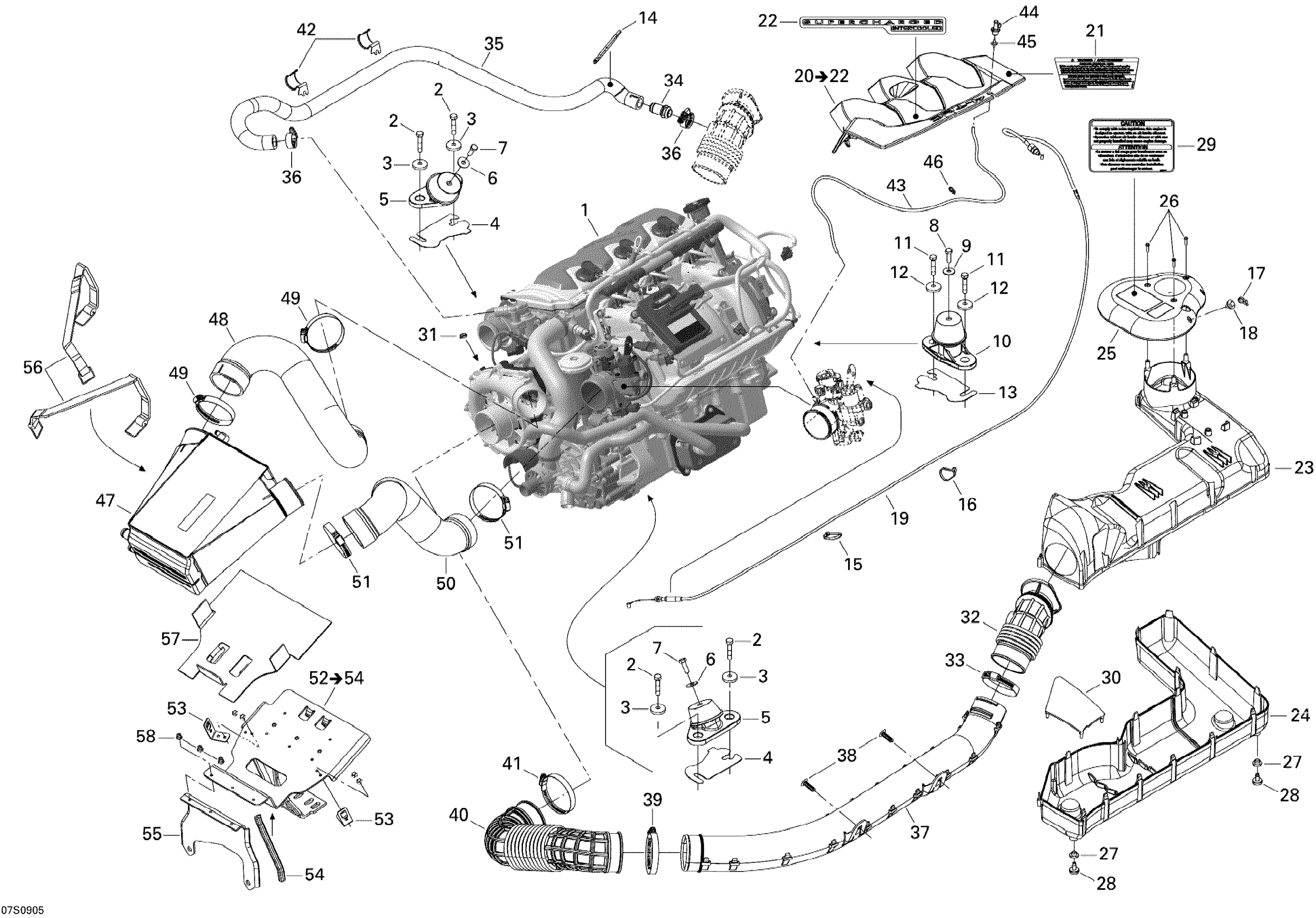

Sea-doo RXT-X 255 and 255 RS, 2009 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Engine Long Block This part replaces 420150338.

420150394

$3,999.99

2

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.24

3

Cone Washer

250200018

$5.33

4

Shim 1.3 mm

270000762

$10.37

5

Engine Support Ass'y

270001081

$96.99

6

Flat Washer 8 mm, Stainless

234082600

$2.27

7

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.27

8

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.27

9

Flat Washer 8 mm, Stainless

234082600

$2.27

10

Engine Support Ass'y

270001096

$88.78

11

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.24

12

Cone Washer

250200018

$5.33

13

Shim 1.3 mm

270000762

$10.37

14

Tie Wrap 368 mm

293750008

$0.97

15

Tie-Rap 180 mm

414115200

$0.10

16

Tie-Rap 180 mm

414115200

$0.10

17

Tie Wrap 142 mm

293750002

$1.01

18

Mount Dart

293730040

$0.99

19

Throttle Cable

277001589

Unavailable

20

ENGINE COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3

270000727

Unavailable

21

WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership

219902674

Unavailable

22

IDENTIFICATION DECAL, MOTOR SCIC - Call your local BRP dealership

219902676

Unavailable

23

AIR SILENCER UPPER - Call your local BRP dealership

273000245

Unavailable

24

AIR SILENCER LOWER - Call your local BRP dealership

273000190

Unavailable

25

AIR SILENCER COVER - Call your local BRP dealership

273000266

Unavailable

26

Hex. Flange Screw K40 X 16

241141660

$1.43

27

GROMMET - Call your local BRP dealership

293720064

Unavailable

28

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

29

Caution Decal, Air Silencer

219902673

Unavailable

30

DEFLECTOR - Call your local BRP dealership

273000206

Unavailable

31

Tie Wrap 142 mm

293750002

$1.01

32

INTAKE HOSE - Call your local BRP dealership

273000186

Unavailable

33

Tridon Clamp

293650179

$10.12

34

Breather Valve

273000234

$12.21

35

FORMED HOSE - Call your local BRP dealership

270000838

Unavailable

36

Tridon Gear Clamp

293650051

$4.15

37

HOSE INTAKE - Call your local BRP dealership | Engine 1500 HO ACE, 1630 ACE HO

273000233

Unavailable

38

Black, Dart

293730006

$0.93

39

Tridon Clamp

293650179

$10.12

40

INTAKE HOSE - Call your local BRP dealership | Without Catalyst

273000188

Unavailable

41

Tridon Clamp

293650179

$10.12

42

Retainer

275500664

$12.52

43

HOSE 3 MM - Call your local BRP dealership

270000469

Unavailable

44

GROMMET CAP - Call your local BRP dealership

293830120

Unavailable

45

CONNECTOR - Call your local BRP dealership

293710107

$0.93

46

Tie Wrap 142 mm

293750002

$1.01

47

Intercooler

276000179

Unavailable

48

Inlet Hose Cooler | Port Side

273000238

Unavailable

49

Tridon Clamp

293650179

$10.12

50

Outlet Hose Cooler | Port Side

273000239

Unavailable

51

Tridon Clamp

293650179

$10.12

52

COOLER SUPPORT ASS'Y - Call your local BRP dealership | Includes 52 to 54

270000756

Unavailable

53

STRAP CLIP - Call your local BRP dealership

293850075

Unavailable

54

TRIM, BLACK - Call your local BRP dealership

204610371

Unavailable

55

REAR COOLER SUPPORT - Call your local BRP dealership

270000760

Unavailable

56

Fuel Tank Strap

293850093

$19.37

57

RUBBER PAD - Call your local BRP dealership

293830124

Unavailable

58

Pop Rivet 3/16"

293150039

$1.31
