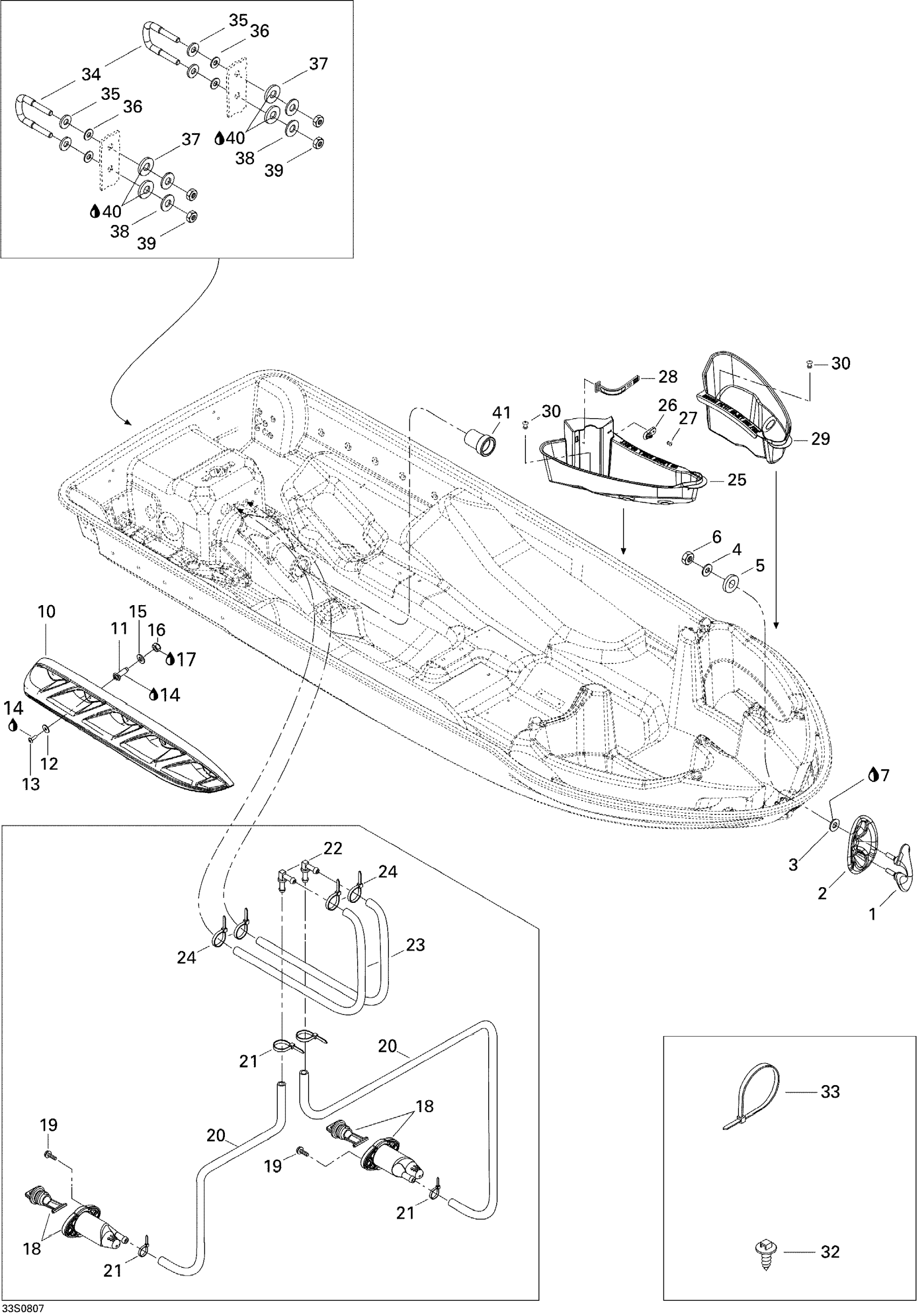

Sea-doo RXT X 255, 2008 Hull Diagram

#

Description
Price

1

Eye-Bow (Black) This part replaces 292000708.

292000452

$33.12

2

Black Shell

292001837

$14.92

3

Stainless, Flat Washer 8 mm

234081600

$0.46

4

Flat Washer 8 mm, Stainless

250200175

$1.29

5

Rubber Washer

293830037

$2.68

6

Hex. Elastic Nut M8 Brass

232581200

$1.29

7

Silicone Sealant 51388, 300 ml

296000309

$35.72

10

RH Sponson

292001878

$72.77

10

LH Sponson

292001877

$72.77

11

SPONSON ADAPTER - Call your local BRP dealership

292001046

Unavailable

12

Flat Washer M6.6 X 22

250200022

$1.87

13

TORX SCREW M6.6 X 20, STAINLESS - Call your local BRP dealership

250000299

Unavailable

14

Silicone Sealant 51388, 300 ml

296000309

$35.72

15

FLAT WASHER M12 - Call your local BRP dealership

250200053

Unavailable

16

NUT-STOP ELASTIC DIN.985A2 - Call your local BRP dealership

250100078

Unavailable

17

Loctite 243, 10 ml

293800060

$20.77

18

Drain Plug

292001252

$28.57

19

Hex. Screw 10-14 X 7/8”

211000023

$2.91

20

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

21

Tie Wrap 94 mm | 4X4

293750001

$0.83

22

ELBOW FITTING 90 - Call your local BRP dealership

293710117

Unavailable

23

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

24

Tie Wrap 94 mm | 4X4

293750001

$0.83

25

RH Storage Tray

292001158

Unavailable

26

Hook

269500521

Unavailable

27

Avdel Rivet

293150027

$2.30

28

Strap

269502417

$14.27

29

LH STORAGE TRAY - Call your local BRP dealership

292001159

Unavailable

30

RIVET 1/4 X 1/2 - Call your local BRP dealership

293150169

Unavailable

32

Mount Dart

293730040

$0.86

33

Tie Wrap 368 mm

293750008

$0.85

33

Tie-Rap 180 mm

414115200

$0.09

34

U-Clamp

292000933

$32.47

35

Flat Washer M8.5 x 18

293050001

$1.29

36

Flat Washer 8 mm, Nylon

234081100

$1.00

37

Rubber Washer

293830037

$2.68

38

Flat Washer 8 mm, Stainless

250200175

$1.29

39

Hex. Elastic Nut M8 Brass

232581200

$1.29

40

Silicone Sealant 51388, 300 ml

296000309

$35.72

41

HULL INSERT, 50 MM - Call your local BRP dealership

292000974

Unavailable
