- RXT X 255, 2008
09- Hull

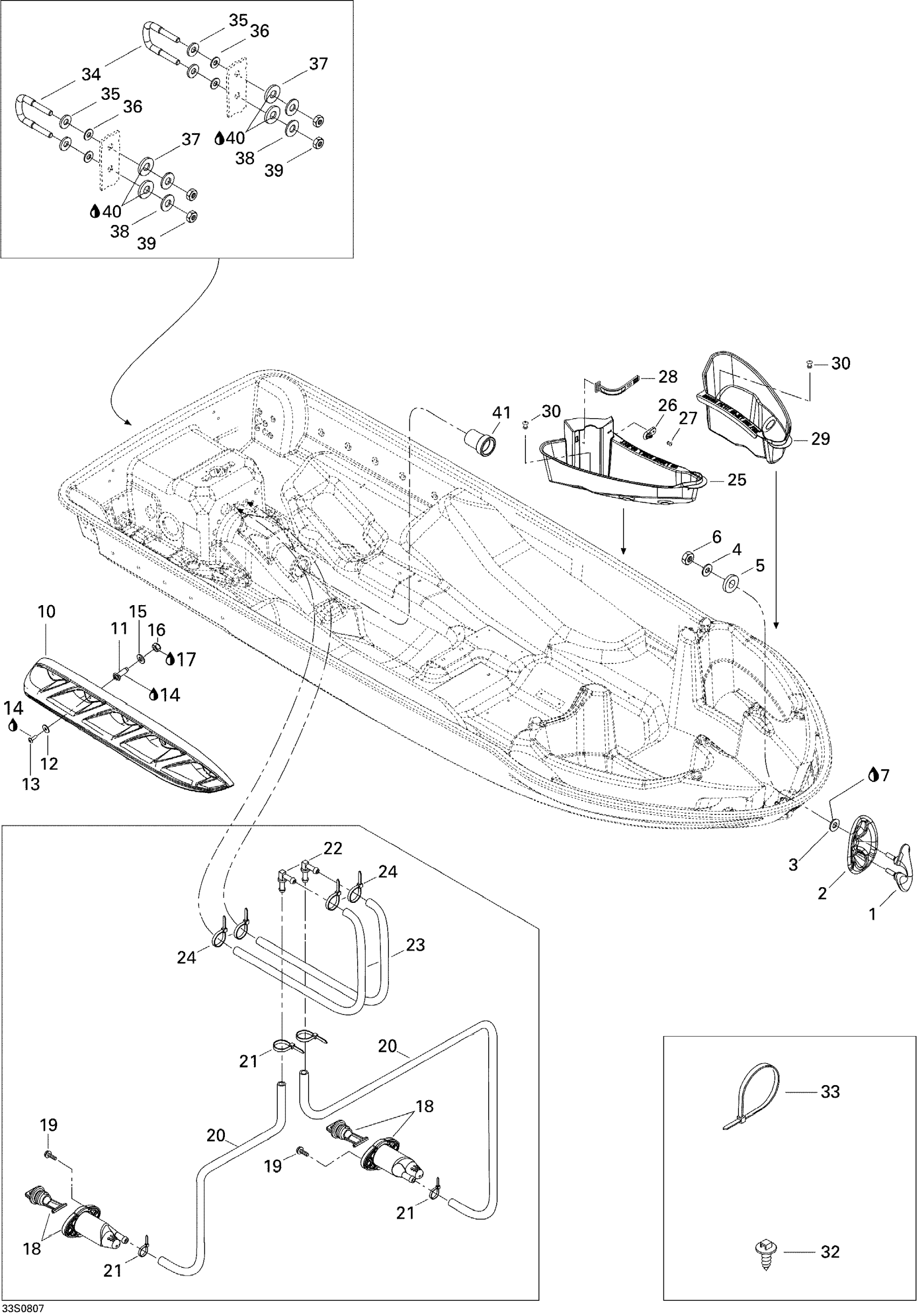

Sea-doo RXT X 255, 2008 09- Hull Diagram
#
Description
Price
1
Eye-Bow (Black) This part replaces 292000708.
292000452
$42.99
2
Black Shell
292001837
$20.99
3
Stainless, Flat Washer 8 mm
234081600
$0.55
4
Flat Washer 8 mm, Stainless
250200175
$3.06
5
Rubber Washer
293830037
$2.68
6
Hex. Elastic Nut M8 Brass
232581200
$2.22
7
Silicone Sealant 51388, 300 ml
296000309
$36.99
10
RH Sponson
292001878
$93.99
10
LH Sponson
292001877
$93.99
11
SPONSON ADAPTER - Call your local BRP dealership
292001046
Unavailable
12
Flat Washer M6.6 X 22
250200022
$2.72
13
TORX SCREW M6.6 X 20, STAINLESS - Call your local BRP dealership
250000299
Unavailable
14
Silicone Sealant 51388, 300 ml
296000309
$36.99
15
FLAT WASHER M12 - Call your local BRP dealership
250200053
Unavailable
16
NUT-STOP ELASTIC DIN.985A2 - Call your local BRP dealership
250100078
Unavailable
17
Loctite 243, 10 ml
293800060
$21.49
18
Drain Plug
292001252
$36.99
19
Hex. Screw 10-14 X 7/8”
211000023
$3.59
20
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
21
Tie Wrap 94 mm | 4X4
293750001
$1.03
22
ELBOW FITTING 90 - Call your local BRP dealership
293710117
Unavailable
23
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
24
Tie Wrap 94 mm | 4X4
293750001
$1.03
25
RH Storage Tray
292001158
Unavailable
26
Hook
269500521
$9.09
27
Avdel Rivet
293150027
$2.49
28
Strap
269502417
$17.69
29
LH STORAGE TRAY - Call your local BRP dealership
292001159
Unavailable
30
RIVET 1/4 X 1/2 - Call your local BRP dealership
293150169
Unavailable
32
Mount Dart
293730040
$1.04
33
Tie Wrap 368 mm
293750008
$1.04
33
Tie-Rap 180 mm
414115200
$0.11
34
U-Clamp
292000933
$59.49
35
Flat Washer M8.5 x 18
293050001
$3.07
36
Flat Washer 8 mm, Nylon
234081100
$1.39
37
Rubber Washer
293830037
$2.68
38
Flat Washer 8 mm, Stainless
250200175
$3.06
39
Hex. Elastic Nut M8 Brass
232581200
$2.22
40
Silicone Sealant 51388, 300 ml
296000309
$36.99
41
HULL INSERT, 50 MM - Call your local BRP dealership
292000974
Unavailable
