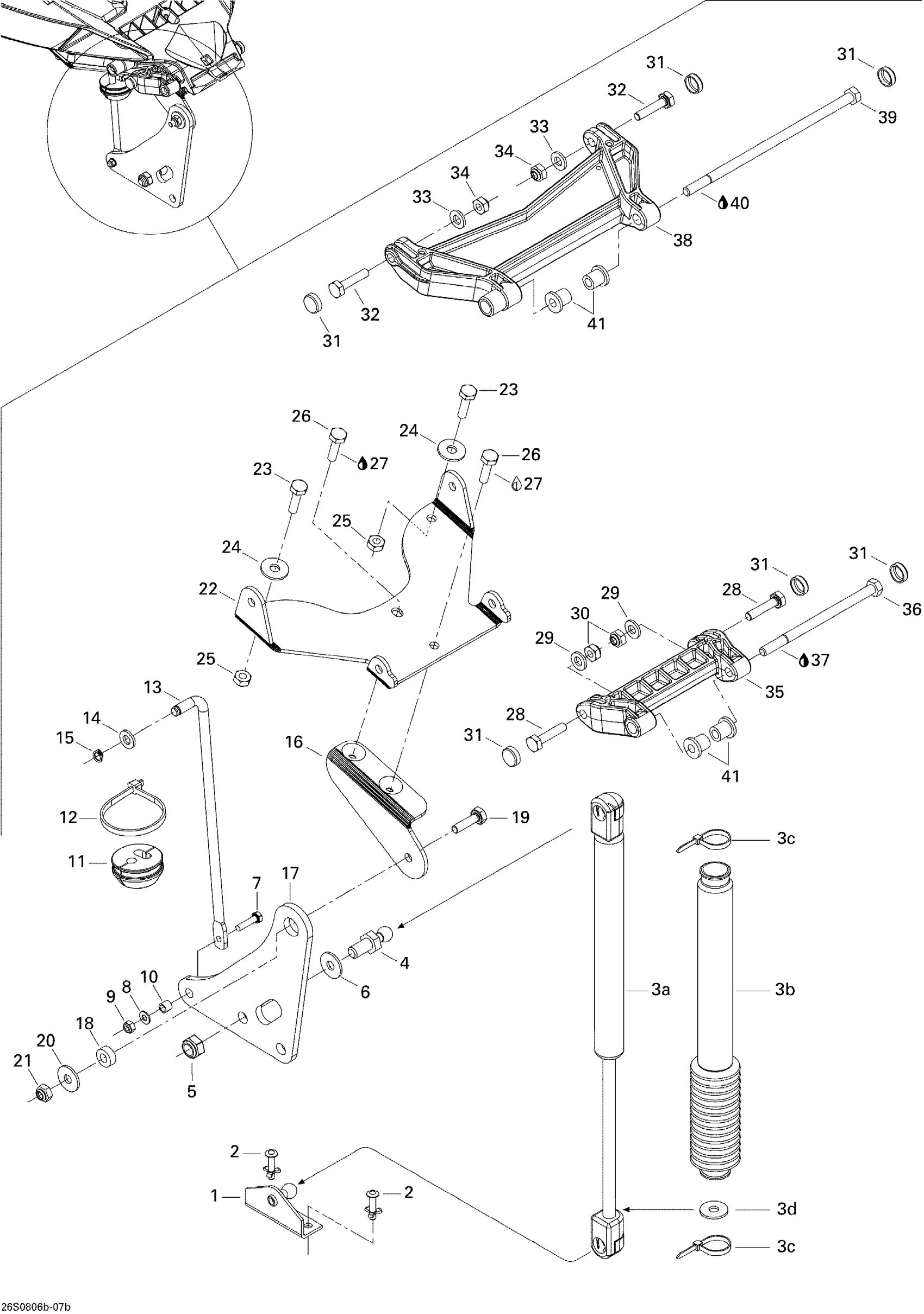

Sea-doo RXT X 255, 2008 Front Storage Compartment 2 Diagram

#

Description
Price

1

SHOCK SUPPORT - Call your local BRP dealership

291002124

Unavailable

2

Avdel Rivet 3/16"

293150037

$0.56

3a

Gas Shock Ass'y

269501625

$77.99

3b

BELLOW - Call your local BRP dealership

269501557

Unavailable

3c

Tie Wrap 94 mm | 4X4

293750001

$1.03

3d

Flat Washer, Aluminum

250200033

Unavailable

4

Ball Head Stud

250300016

$14.81

5

Hex. Elastic Nut M8 Brass

232581200

$2.22

6

Flat Washer M6.6 X 22

250200022

$2.72

7

Hex. Screw M4 X 16 | Europe

207141660

$1.47

8

Flat Washer 4 mm, Stainless

234041600

$1.15

9

Elastic Stop Nut M4

232541600

$1.15

10

SPACER - Call your local BRP dealership

269501130

Unavailable

11

CABLE GROMMET - Call your local BRP dealership | North America

293720070

Unavailable

12

Tie-Rap 180 mm

414115200

$0.11

13

ROD - Call your local BRP dealership

269500842

Unavailable

14

Stainless Flat Washer M6

234061600

$0.33

15

CIRCLIP 6 MM - Call your local BRP dealership | North America

293370005

Unavailable

16

SUPPORT LEVER - Call your local BRP dealership

269501742

Unavailable

17

LEVER - Call your local BRP dealership

269501576

Unavailable

18

SPACER - Call your local BRP dealership

269501172

Unavailable

19

Hex. Forming Screw M6 X 20

207162060

$1.29

20

Flat Washer M6, Stainless

234062600

$0.77

21

Elastic Stop Nut M6, Brass

232561200

$4.23

22

PIVOT SUPPORT - Call your local BRP dealership

269501639

Unavailable

23

Hex. Forming Screw M6 X 20

207162060

$1.29

24

Flat Washer M6, Stainless

234062600

$0.77

25

Elastic Stop Nut M6, Brass

232561200

$4.23

26

Hex. Forming Screw M6 X 20

207162060

$1.29

27

Loctite 243, 10 ml

293800060

$21.49

28

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

29

Stainless Flat Washer M6

234061600

$0.33

30

Elastic Stop Nut M6, Brass

232561200

$4.23

31

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

32

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

33

Stainless Flat Washer M6

234061600

$0.33

34

Elastic Stop Nut M6, Brass

232561200

$4.23

35

FRONT ARM - Call your local BRP dealership

269501482

$19.99

36

Hex. Screw M6 X 100

230060060

$7.41

37

Loctite 243, 10 ml

293800060

$21.49

38

REAR ARM - Call your local BRP dealership

269501481

Unavailable

39

Hex. Screw M6 X 150

230065060

$10.16

40

Loctite 271, 10 ml

293800005

$26.99

41

Sleeve

269500706

$4.65
