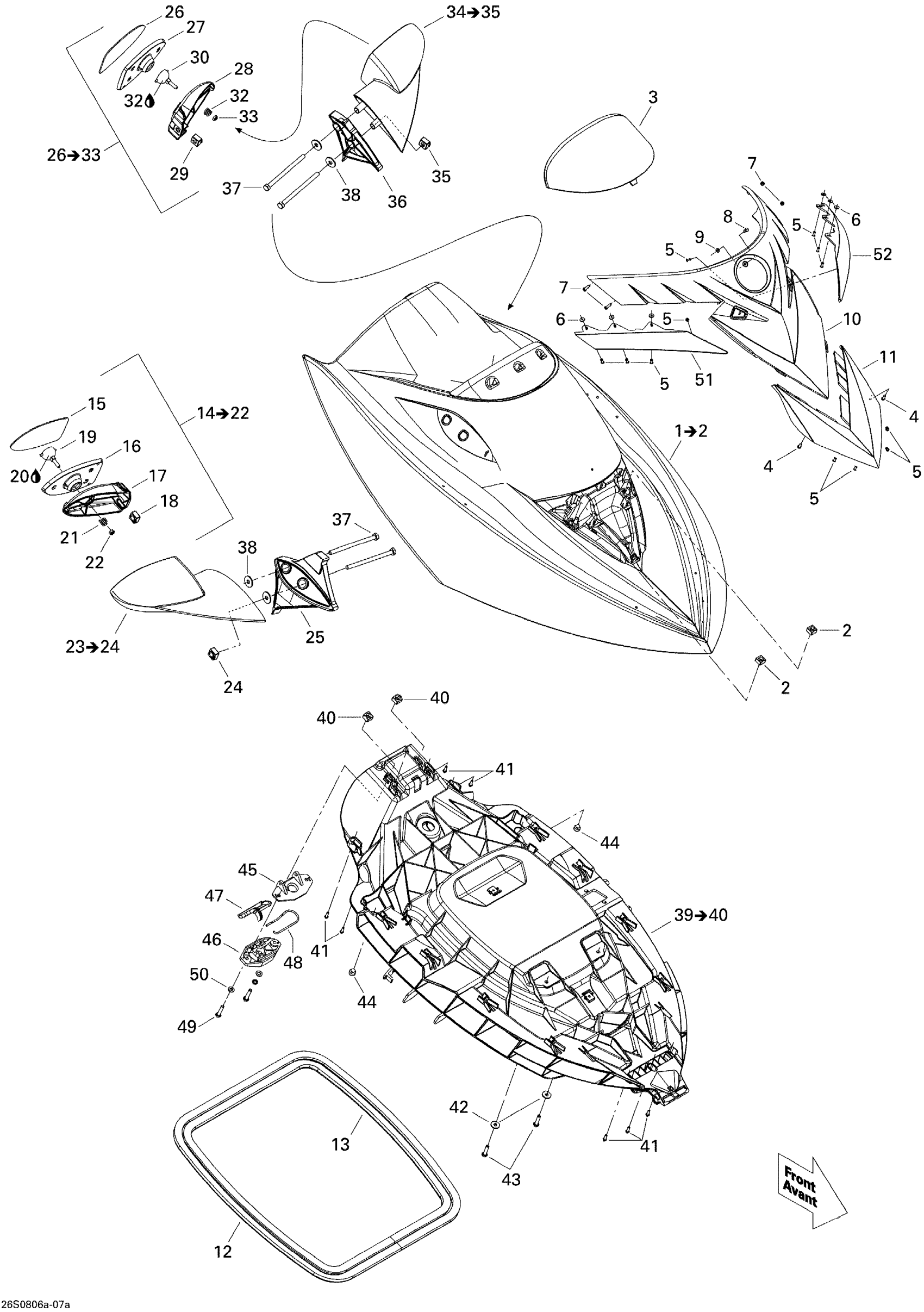

Sea-doo RXT X 255, 2008 Front Storage Compartment 1 Diagram

#

Description
Price

1

UPPER STORAGE COVER - Call your local BRP dealership | Includes 1 to 2, Silver Metallic Model

269501685

Unavailable

2

Housing Nut M6 | Included 550f to 550f2

269502408

$4.42

3

DEFLECTOR - Call your local BRP dealership

269501686

Unavailable

4

Hex. Flange Screw K40 X 13

241141360

$0.56

5

RIVET_POP 1/8 X ,438 - Call your local BRP dealership

293150001

Unavailable

6

WASHER - Call your local BRP dealership

293150007

Unavailable

7

Hex. Flange Screw K40 X 13

241141360

$0.56

8

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

9

Flat Washer 4 mm

234040600

$0.46

10

FRONT FASCIA - Call your local BRP dealership

269501690

Unavailable

11

FRONT DEFLECTOR, CHROME - Call your local BRP dealership

269501407

Unavailable

12

Was 293200017 Neoprene Seal

219704365

$118.27

13

Was 293200017 Neoprene Seal

219704365

$118.27

14

RH MIRROR ASS'Y - Call your local BRP dealership | Includes 7 to 9

269501633

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Mirror Frame

269501330

Unavailable

17

Housing Support

269501331

Unavailable

18

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

19

MIRROR BALL JOINT - Call your local BRP dealership

269501333

Unavailable

20

Synthetic Grease, 400 G

293550010

Unavailable

21

Mirror Spring

269501334

Unavailable

22

Hex. Elastic Stop Nut M6

232561600

$0.92

23

MIRROR SHEEL - Call your local BRP dealership | Includes 23 to 24, Silver Metallic Model

269501687

Unavailable

24

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

25

RH SPACER - Call your local BRP dealership

269501600

Unavailable

26

LH MIRROR - Call your local BRP dealership | Includes 10 to 12

269501634

Unavailable

27

Mirror Frame

269501330

Unavailable

28

Housing Support

269501331

Unavailable

29

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

30

MIRROR BALL JOINT - Call your local BRP dealership

269501333

Unavailable

31

Synthetic Grease, 400 G

293550010

Unavailable

32

Mirror Spring

269501334

Unavailable

33

Hex. Elastic Stop Nut M6

232561600

$0.92

34

MIRROR SHEEL - Call your local BRP dealership | Includes 34 to 35, Silver Metallic Model

269501688

Unavailable

35

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

36

LH SPACER - Call your local BRP dealership

269501601

Unavailable

37

HEX. SCREW M8 X 120 - Call your local BRP dealership

230082060

Unavailable

38

Flat Washer 8 mm, Stainless

234082600

$1.98

39

LOWER STORAGE COVER ASS'Y - Call your local BRP dealership | Includes 39 to 40

269501575

Unavailable

40

Housing Nut M6 | Included 550f to 550f2

269502408

$4.42

41

Hex. Flange Screw K40 X 13

241141360

$0.56

42

Flat Washer M6, Stainless

234062600

$0.64

43

Hex. Screw M6 X 25

207162560

$1.22

44

Rubber Bumper

293830005

$5.33

45

Latch Ass'y

269700109

$20.12

46

Latch Ass'y

269700109

$20.12

47

Latch Ass'y

269700109

$20.12

48

Latch Spring

269700017

$7.27

49

Hex. Screw M6 X 30

207063060

$1.51

50

Stainless Flat Washer M6

234061600

$0.25

51

RH DEFLECTOR, CHROME - Call your local BRP dealership

269501409

Unavailable

52

LH DEFLECTOR, CHROME - Call your local BRP dealership

269501410

Unavailable
