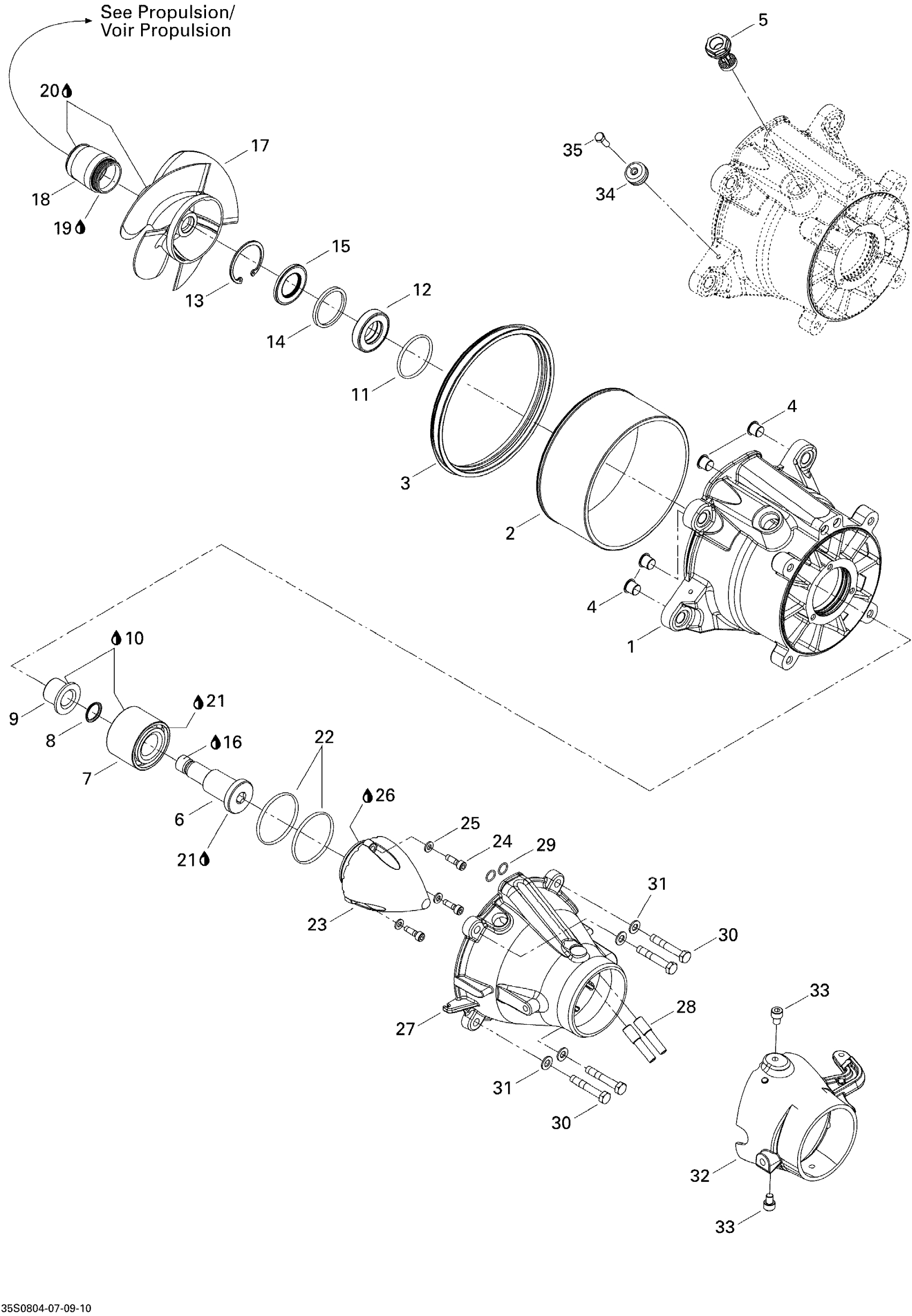

Sea-doo RXT X 255, 2008 Pump Diagram

#

Description
Price

1

Impeller Housing

267000084

Unavailable

2

Wear Ring

267000372

$68.87

3

Neoprene Seal

293200087

$9.19

4

Bushing

267000093

$7.15

5

Plug | Includes 370z to 370z1

267000282

$14.27

6

Impeller Shaft

267000054

$94.22

7

Angled Bearing This part replaces 267000030.

267000900

$66.27

8

O-Ring

505070315

$2.34

9

Shaft Sleeve

267000318

$102.67

10

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

11

O-Ring

293300090

$5.97

12

Seal

271002071

$26.62

13

Circlip

293370038

$7.12

14

Spacer

271001393

$6.12

15

Oil Seal

293200089

$15.57

16

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

17

Impeller Ass'y This part replaces 267000408.

267000978

$402.97

18

Guard

271002228

$9.85

19

Était Was 293800050 Loctite 577, 250 ml

219704459

$104.99

20

Synthetic Grease, 400 G

293550010

Unavailable

21

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

22

O-Ring

293300086

$2.90

23

Impeller Cover

267000262

$16.87

24

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.62

25

Stainless Flat Washer M6

234061600

$0.25

26

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

27

VENTURI - Call your local BRP dealership

267000369

Unavailable

28

Siphon Tube

271001133

$7.05

29

O-Ring

293300013

$5.69

30

HEX. SCREW M8 X 40, SCOTCH GRIP - Call your local BRP dealership

207384060

Unavailable

31

Stainless, Flat Washer 8 mm

234081600

$0.46

32

STEERING NOZZLE, BLACK - Call your local BRP dealership | RXP

267000550

Unavailable

33

Socket Head Screw M8 X 10, Scotch Grip

211000127

$3.07

34

Anode Zinc

271001813

$13.62

35

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22
