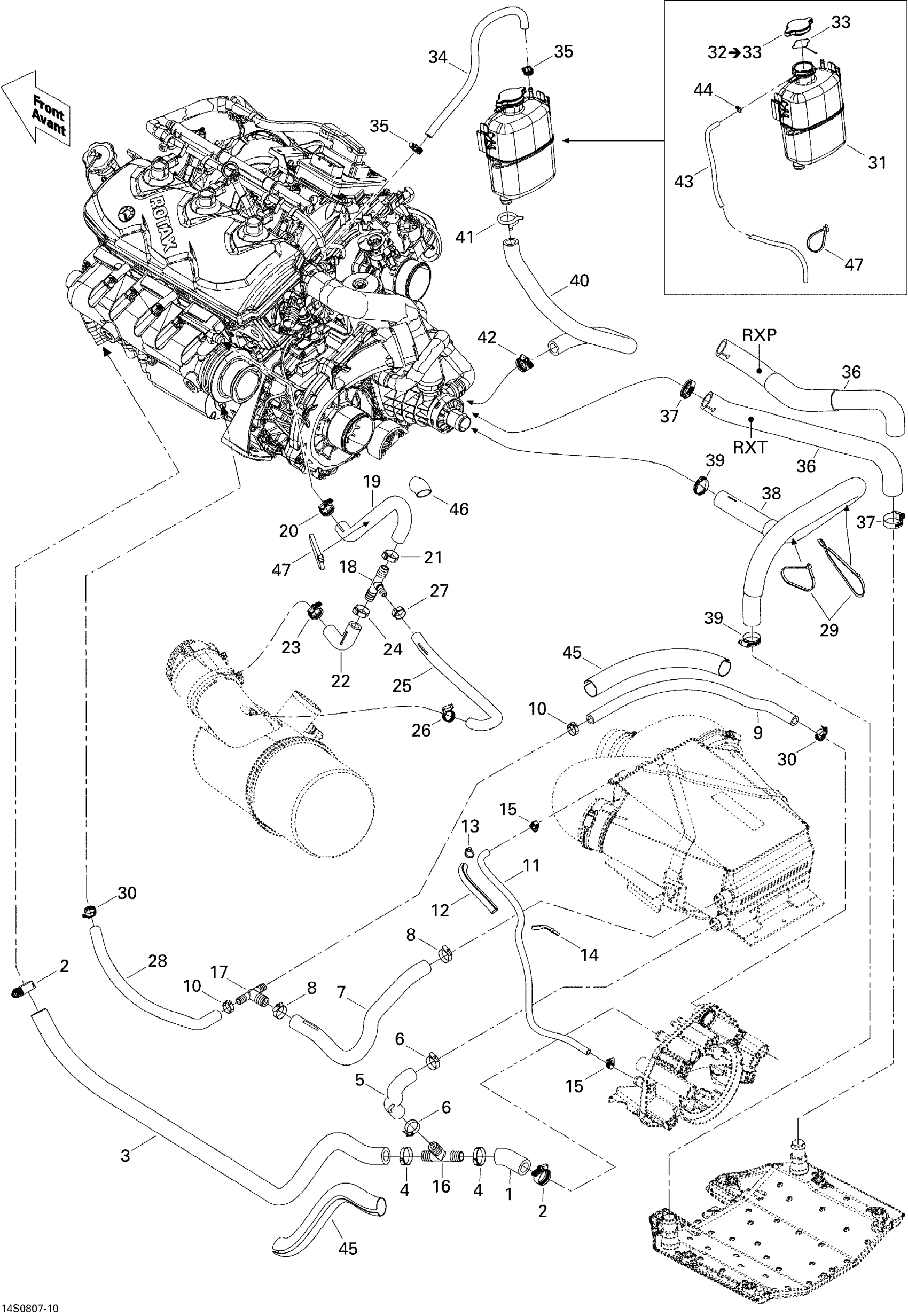

Sea-doo RXT X 255, 2008 Cooling System Diagram

#

Description
Price

1

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

2

Tridon Gear Clamp

293650051

$3.61

3

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

4

Crimp Clamp

293650099

$3.55

5

Formed Hose

276000181

Unavailable

6

Tridon Gear Clamp

293650051

$3.61

7

FORMED HOSE - Call your local BRP dealership

276000243

Unavailable

8

Tridon Gear Clamp

293650051

$3.61

9

Was 276000001 Hose 12.5 mm

219704394

$42.87

10

Oetiker Clamp

293650012

$4.94

11

HOSE 5/16 - Call your local BRP dealership

275500548

Unavailable

12

Tubing 16 Mm 1000Mm Long

219704408

$6.23

13

Tie Wrap 142 mm

293750002

$0.88

14

Tie-Rap 180 mm

414115200

$0.09

15

Tridon Gear Clamp

293650171

$2.46

16

T-Fitting

293710131

$12.57

17

T-Fitting

293710132

$9.48

18

T-Fitting

293710116

$14.27

19

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$15.57

20

Tridon Gear Clamp

293650172

$2.68

21

Oetiker Clamp

293650012

$4.94

22

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$15.57

23

Tridon Gear Clamp

293650172

$2.68

24

Oetiker Clamp

293650012

$4.94

25

Formed Hose | Without Catalyst

276000246

$14.92

26

Tridon Gear Clamp

293650171

$2.46

27

Oetiker Clamp | Europe

293650030

$4.32

28

Was 276000001 Hose 12.5 mm

219704394

$42.87

29

Tie Wrap 368 mm

293750008

$0.85

30

Tridon Gear Clamp

293650172

$2.68

31

Coolant Tank

276000086

$87.72

32

Pressure Cap | Includes 720 to 720a

276000100

$20.77

33

Latch - Call your local BRP dealership | Not Shown

276000127

Unavailable

34

Was 275500549 Hose 1/4"

219704357

$178.33

35

Tridon Gear Clamp

293650170

$1.74

36

RH Radiator Hose

276000248

$45.47

37

Tridon Gear Clamp

293650045

$4.51

38

LH Radiator Hose - Call Your Local BRP Dealership

276000195

Unavailable

39

Tridon Gear Clamp

293650045

$4.51

40

Formed Return Hose This part replaces 276000253.

276000493

$26.84

41

Spring Clamp

293650115

$2.46

42

Tridon Gear Clamp

293650019

$4.81

43

Polyurethane Hose 10000Mm Long

219704410

$46.12

44

Tie Wrap 94 mm | 4X4

293750001

$0.83

45

Tubing 25 MM 1000MM Long

219704402

$12.69

46

PROTECTOR TUBE 25 MM - Call your local BRP dealership

276000162

Unavailable

47

Tie-Rap 180 mm

414115200

$0.09
