Description

Price

1

Exhaust Clamp

274001417

$58.99

2

Polyurethane Hose 10000Mm Long

219704410

$56.99

3

Exhaust Muffler Support This part replaces 274001357.

274001479

$18.54

4

Stopper

274001721

$19.09

5

Muffler This part replaces 274001384.

274001648

$815.99

6

Temperature Sensor

278002895

$39.99

7

NEEDS DESCRIPTION | Without Catalyst, Includes 3 to 4 This part replaces 274001354.

423462834

$194.99

8

Elbow Fitting 90° | Without Catalyst

293700023

$20.99

9

Hose | Without Catalyst

274001348

$24.49

10

Gear Clamp This part replaces 293650281.

293650202

$15.88

11

Fuel Tank Strap

293850093

$21.99

12

Pop Rivet 3/16"

293150043

$2.09

13

Hex. Flange Screw M6.81 X 25, Plastite

243162560

$2.19

14

Flat Washer 8 mm, Stainless

234082600

$2.43

15

Front Formed Exhaust Pipe This part replaces 274001458.

274001714

$71.99

16

Tridon Clamp

293650179

$11.49

17

Tridon Clamp

293650179

$11.49

18

Resonator

274001366

$169.49

19

Neoprene Seal (1PAC=3M)

219704364

$27.49

20

Rubber Pad

293830126

$13.76

21

Exhaust Hose This part replaces 274001423.

274001711

$29.49

22

Tridon Clamp

293650179

$11.49

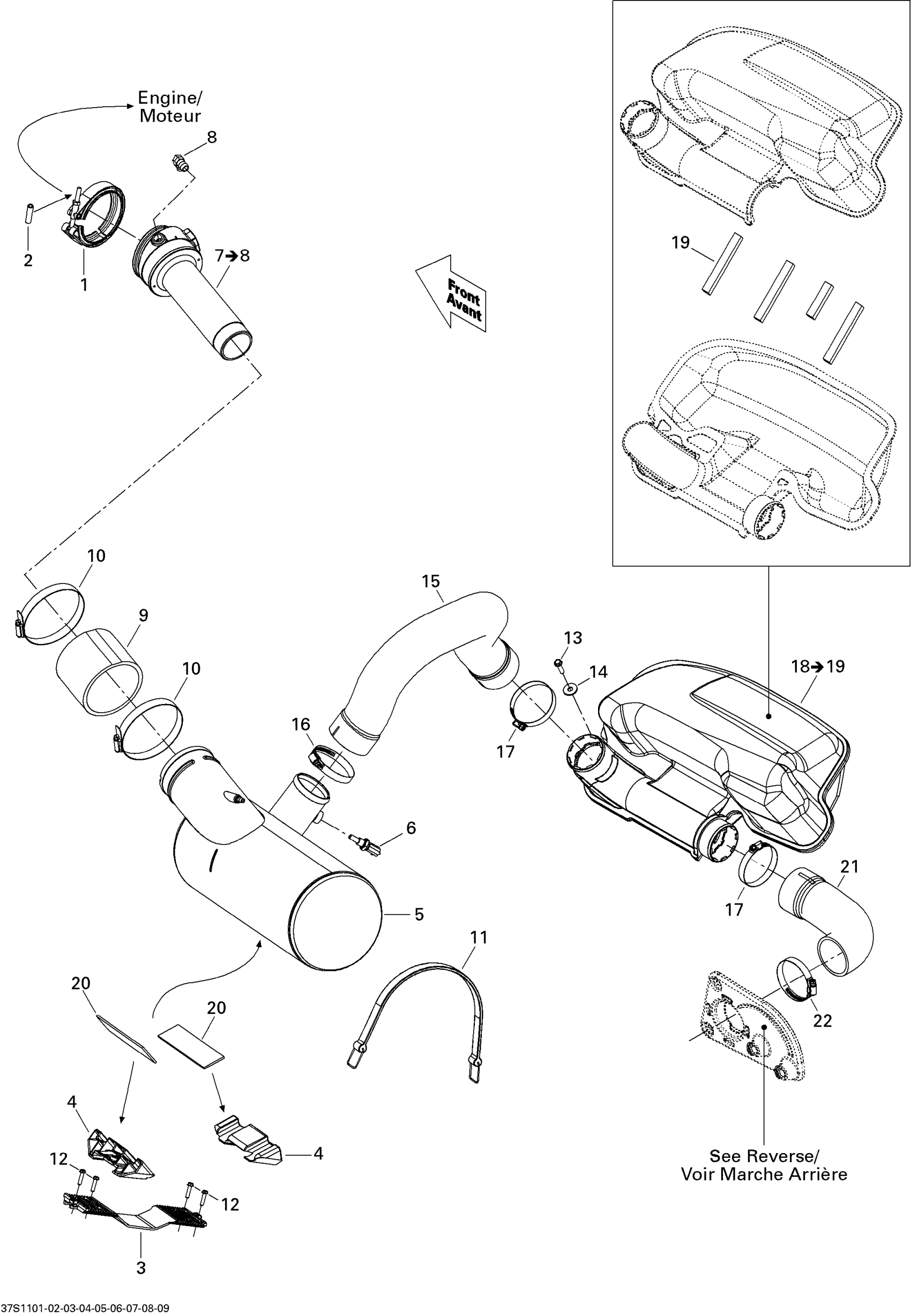

Sea-doo RXT iS 260, 2011 01- Exhaust System Diagram

Exhaust Clamp

Polyurethane Hose 10000Mm Long

Exhaust Muffler Support This part replaces 274001357.

Stopper

Muffler This part replaces 274001384.

Temperature Sensor

NEEDS DESCRIPTION | Without Catalyst, Includes 3 to 4 This part replaces 274001354.

Elbow Fitting 90° | Without Catalyst

Hose | Without Catalyst

Gear Clamp This part replaces 293650281.

Fuel Tank Strap

Pop Rivet 3/16"

Hex. Flange Screw M6.81 X 25, Plastite

Flat Washer 8 mm, Stainless

Front Formed Exhaust Pipe This part replaces 274001458.

Tridon Clamp

Tridon Clamp

Resonator

Neoprene Seal (1PAC=3M)

Rubber Pad

Exhaust Hose This part replaces 274001423.

Tridon Clamp
