- RXT iS 260, 2011
01- Engine And Air Intake Silencer

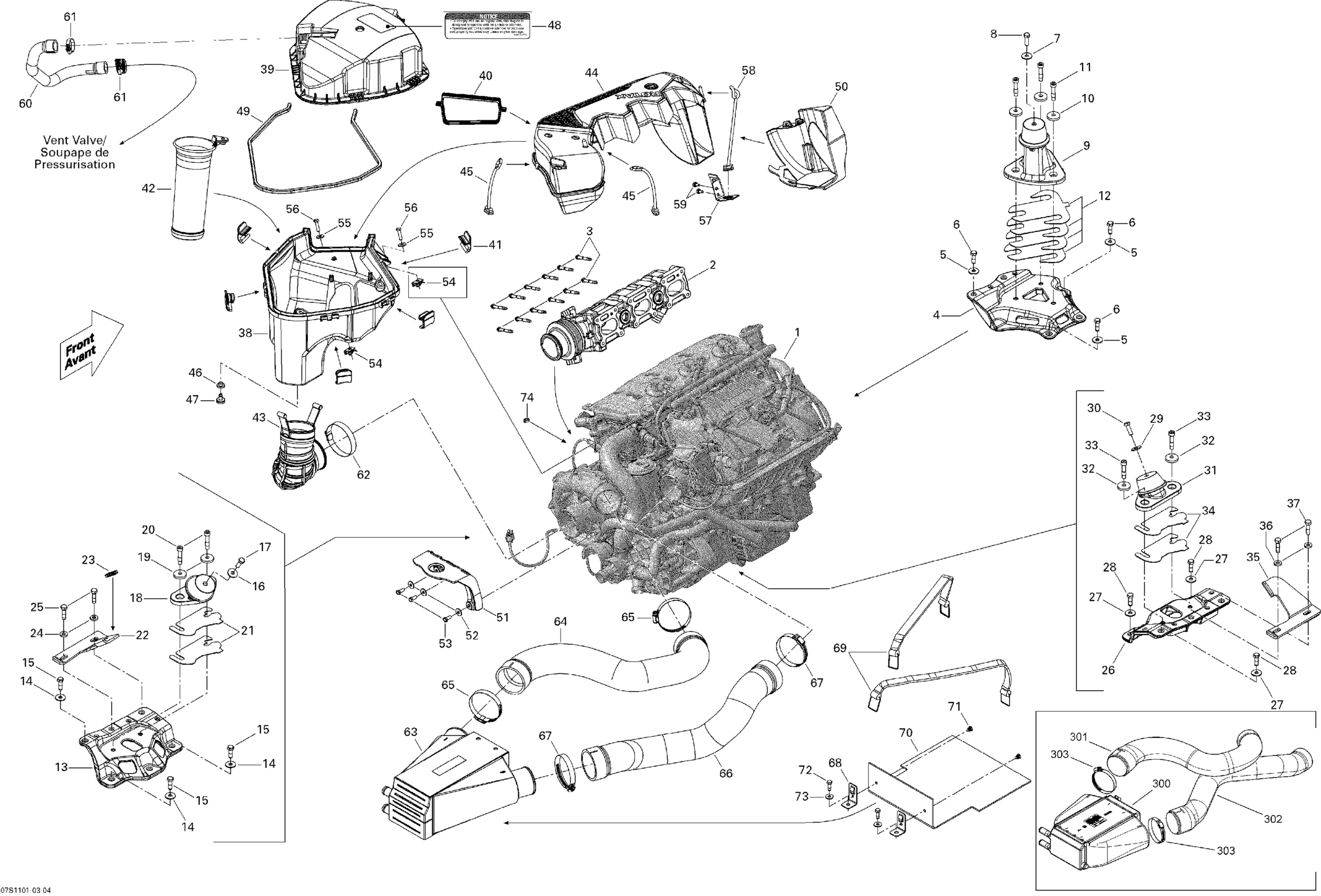

Sea-doo RXT iS 260, 2011 01- Engine And Air Intake Silencer Diagram
#
1
Engine Long Block This part replaces 420150338.
420150394
$4.00
1
Engine Long Block This part replaces 420150338.
420150394
$4.00
2
Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.
296000422
$839.99
3
Torx Flange Screw M6 X 45
420641198
$4.12
4
SPACER - Call your local BRP dealership
270000767
Unavailable
5
Flat Washer 8 mm, Stainless
234082600
$2.43
6
Hex. Screw M8 X 25, Scotch Grip | Hull LFI
250000525
$3.91
7
Flat Washer 8 mm, Stainless
234082600
$2.43
8
Hex. Screw M8 X 25, Scotch Grip
207382560
$2.43
9
Rubber Mount
270000886
$129.99
10
Cone Washer
250200018
$5.61
11
Torx-Button M/S M8 X 40 Stlss S.Gri
250000845
$3.91
12
Shim 1.3 mm
270000770
$16.49
13
SPACER - Call your local BRP dealership
270000763
Unavailable
14
Flat Washer 8 mm, Stainless
234082600
$2.43
15
Hex. Screw M8 X 25, Scotch Grip | Hull LFI
250000525
$3.91
16
Flat Washer 8 mm, Stainless
234082600
$2.43
17
Hex. Screw M8 X 25, Scotch Grip
207382560
$2.43
18
Engine Support Ass'y
270001081
$109.99
19
Cone Washer
250200018
$5.61
20
Torx-Button M/S M8 X 40 Stlss S.Gri
250000845
$3.91
21
Shim 1.3 mm
270000762
$12.99
22
LH STOPPER - Call your local BRP dealership
270000796
Unavailable
23
TRIM, BLACK - Call your local BRP dealership
204610371
Unavailable
24
Flat Washer M8.5 x 18
293050001
$3.07
25
Hex. Screw M8 X 30, Scotch Grip
250000526
$0.77
26
Spacer
270000766
$78.49
27
Flat Washer 8 mm, Stainless
234082600
$2.43
28
Hex. Screw M8 X 25, Scotch Grip | Hull LFI
250000525
$3.91
29
Flat Washer 8 mm, Stainless
234082600
$2.43
30
Hex. Screw M8 X 25, Scotch Grip
207382560
$2.43
31
Engine Support Ass'y
270001081
$109.99
32
Cone Washer
250200018
$5.61
33
Torx-Button M/S M8 X 40 Stlss S.Gri
250000845
$3.91
34
Shim 1.3 mm
270000762
$12.99
35
RH Stopper
270000799
Unavailable
36
Flat Washer M8.5 x 18
293050001
$3.07
37
Hex. Screw M8 X 30, Scotch Grip
250000526
$0.77
38
AIR SILENCER LOW - Call your local BRP dealership
273000250
Unavailable
39
Air Silencer Upper
273000249
$61.99
40
SEAL - Call your local BRP dealership
293250190
$15.49
41
Clip
269501718
$15.89
42
Intake Hose
273000359
$48.99
43
CONNECTOR HOSE - Call your local BRP dealership
273000251
Unavailable
44
INTAKE TUBE - Call your local BRP dealership
273000253
Unavailable
45
Strap
269501299
$19.49
46
GROMMET - Call your local BRP dealership
293720064
Unavailable
47
CHECK VALVE - Call your local BRP dealership
275500454
Unavailable
48
Air Silencer Notice Decal
219903177
Unavailable
49
NEOPRENE SEAL - Call your local BRP dealership
293200123
Unavailable
50
DEFLECTOR - Call your local BRP dealership
273000271
Unavailable
51
AIR BOX SUPPORT - Call your local BRP dealership
270000735
Unavailable
52
Flat Washer M6, Stainless
234062600
$0.77
53
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
54
Panel Nut M6 X 1
420942108
$14.28
55
Flat Washer M6, Stainless
234062600
$0.77
56
Hex. Screw M6 X 25, Scotch Grip | With Catalyst
207362560
$1.47
57
AIR BOX BRACKET - Call your local BRP dealership
273000260
Unavailable
58
Strap
273000261
$16.49
59
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
60
Formed Hose
270000807
$65.49
61
Tridon Gear Clamp
293650051
$4.19
62
Tridon Clamp
293650179
$11.49
63
Intercooler
276000273
Unavailable
64
Inlet Hose This part replaces 273000282.
273000404
$68.99
65
Tridon Clamp
293650179
$11.49
66
Outlet Hose This part replaces 273000300.
273000405
$90.99
67
Tridon Clamp
293650179
$11.49
68
STRAP CLIP 90 - Call your local BRP dealership
275500743
Unavailable
69
Fuel Tank Strap
293850093
$21.99
70
RUBBER PAD - Call your local BRP dealership | Engine 1503 HO 4-TEC
293830146
Unavailable
71
Black, Dart
293730016
$9.97
72
Hex. Flange Screw M6.81 x 20
243162060
$3.72
73
Flat Washer M6, Stainless
234062600
$0.77
74
Tie Wrap 142 mm
293750002
$1.25
300
Intercooler | Model GTR
276000397
$476.49
301
Formed Hose | Engine 1503 HO 4-TEC
273000361
$93.99
302
Formed Hose | Engine 1503 HO 4-TEC
273000362
$93.99
303
Tridon Gear Clamp
293650244
$9.29
