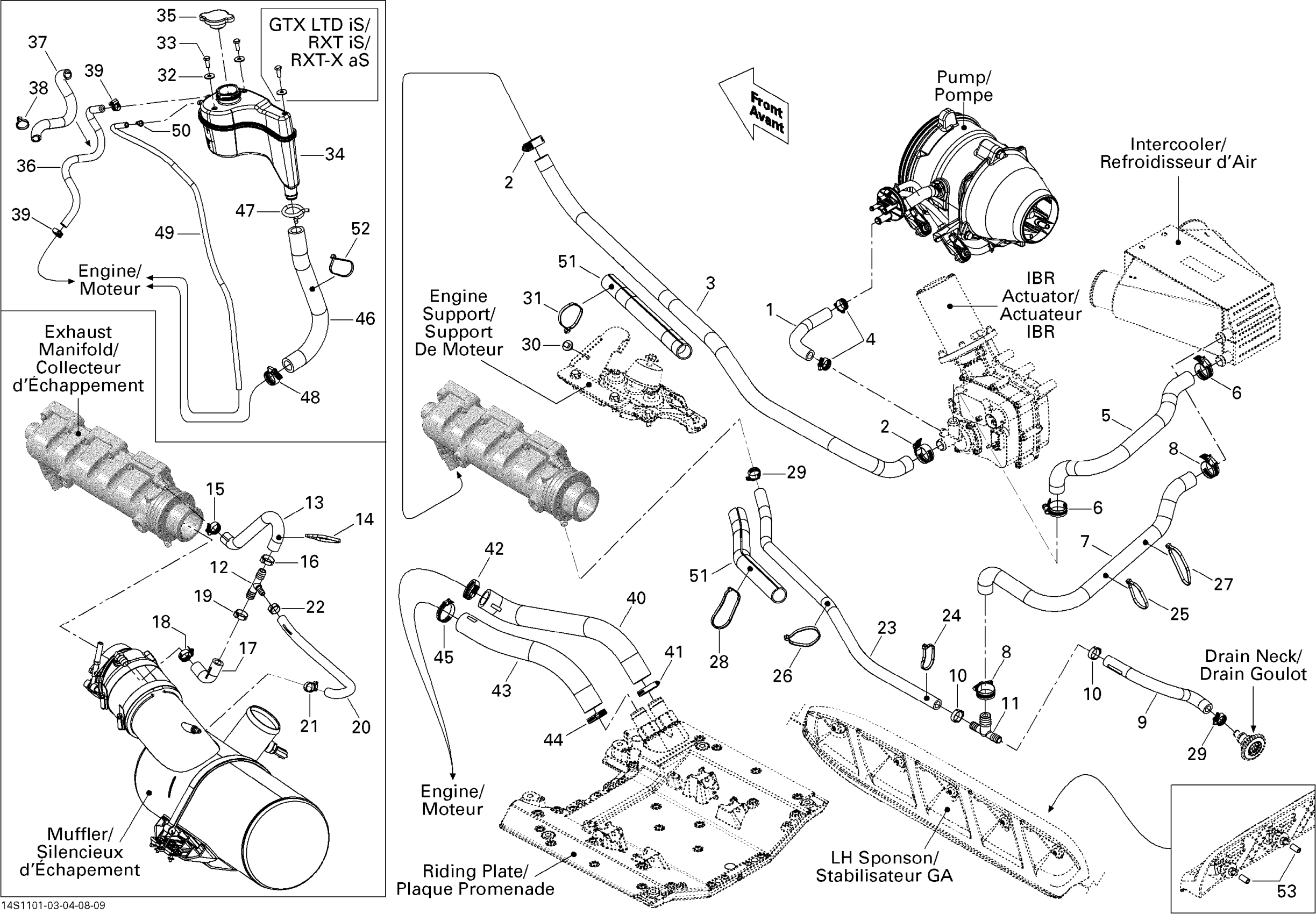

Sea-doo RXT iS 260, 2011 Cooling System Diagram

#

Description
Price

1

FORMED HOSE - Call your local BRP dealership

276000237

Unavailable

2

Tridon Gear Clamp

293650051

$4.19

3

FORMED HOSE - Call your local BRP dealership

276000238

Unavailable

4

Tridon Gear Clamp

293650172

$3.09

5

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

6

Tridon Gear Clamp

293650051

$4.19

7

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

8

Tridon Gear Clamp

293650051

$4.19

9

FORMED HOSE - Call your local BRP dealership

276000239

Unavailable

10

Oetiker Clamp

293650012

$7.49

11

T-Fitting

293710132

$12.65

12

T-Fitting

293710116

$17.62

13

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$19.49

14

Tie Wrap 368 mm

293750008

$1.04

15

Tridon Gear Clamp

293650172

$3.09

16

Oetiker Clamp

293650012

$7.49

17

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$19.49

18

Tridon Gear Clamp

293650172

$3.09

19

Oetiker Clamp

293650012

$7.49

20

Formed Hose | Without Catalyst

276000246

$19.49

21

Tridon Gear Clamp

293650171

$3.09

22

Oetiker Clamp | Europe

293650030

$5.19

23

Was 276000001 Hose 12.5 mm

219704394

$51.99

24

Tie Wrap 368 mm

293750008

$1.04

25

Tie Wrap 368 mm

293750008

$1.04

26

Tie Wrap 368 mm

293750008

$1.04

27

Tie Wrap 368 mm

293750008

$1.04

28

Tie Wrap 368 mm

293750008

$1.04

29

Tridon Gear Clamp

293650172

$3.09

30

Mount Dart

293730040

$1.04

31

Tie Wrap 368 mm

293750008

$1.04

32

Flat Washer M6, Stainless

234062600

$0.77

33

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.15

34

Coolant Tank

276000265

$134.99

35

Pressure Cap | Includes 720 to 720a

276000100

$25.99

36

Was 275500549 Hose 1/4"

219704357

$194.99

37

Was 409901800 Tubing (13 mm)

219704400

$14.49

38

Tie Wrap 94 mm | 4X4

293750001

$1.03

39

Tridon Gear Clamp

293650170

$1.99

40

Radiator Hose This part replaces 276000240.

276000491

$49.99

41

Tridon Gear Clamp

293650185

$13.99

42

Tridon Gear Clamp

293650185

$13.99

43

Radiator Hose

276000241

$32.99

44

Tridon Gear Clamp

293650185

$13.99

45

Tridon Gear Clamp

293650185

$13.99

46

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

47

Spring Clamp

293650115

$3.09

48

Tridon Gear Clamp

293650019

$5.82

49

Polyurethane Hose 10000Mm Long

219704410

$56.99

50

Tie Wrap 94 mm | 4X4

293750001

$1.03

51

Tubing 25 MM 1000MM Long

219704402

$15.99

52

Tie-Rap 180 mm

414115200

$0.11

53

Polyurethane Hose 10000Mm Long

219704410

$56.99
