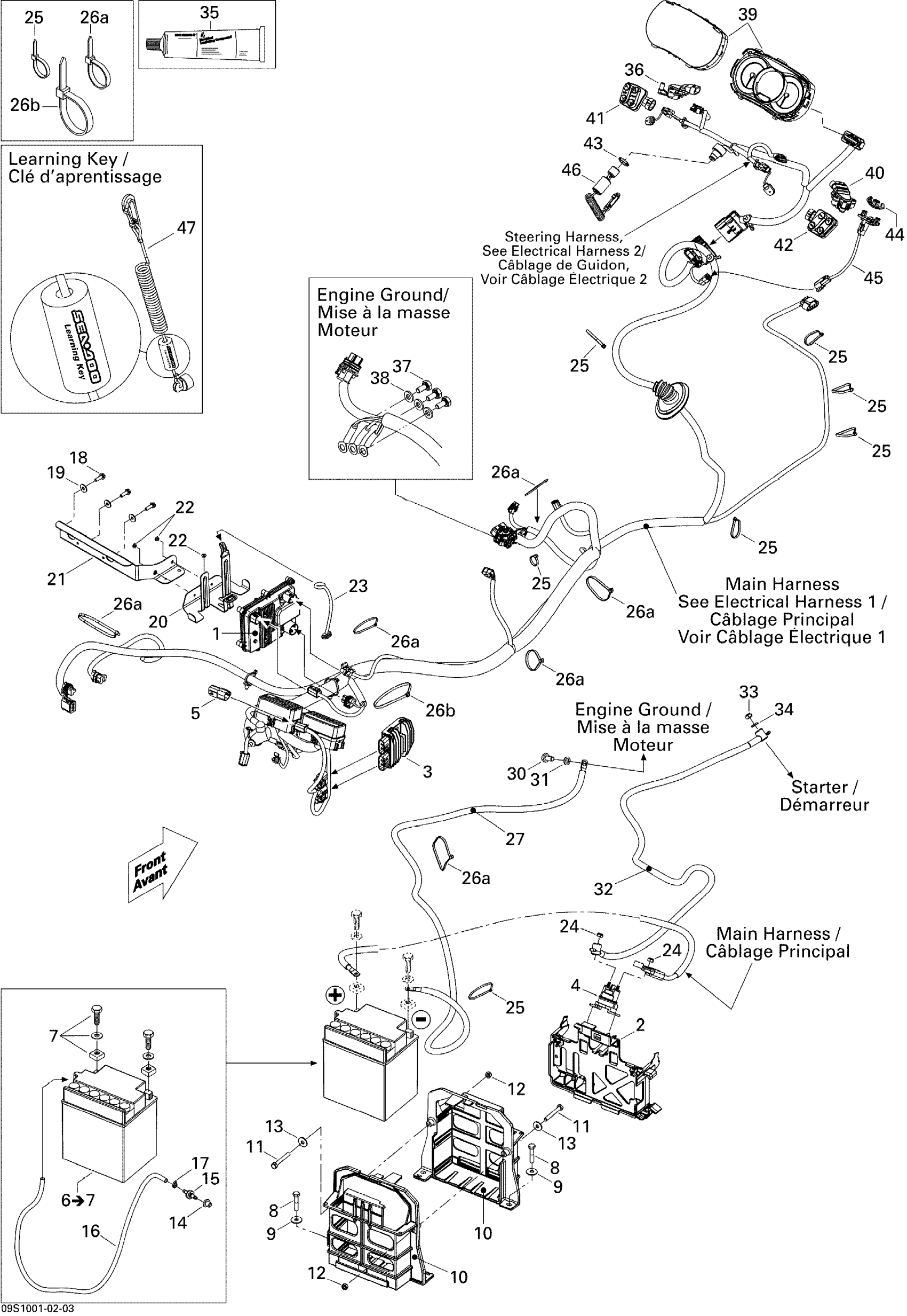

Sea-doo RXT iS 260, 2010 Electrical System Diagram

#

Description
Price

1

Electronic Suspension Module

278002491

$929.99

2

Support

278003048

$21.99

3

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

4

Starter Relay

278003012

$42.49

5

Diagnostic Connector

278002704

$19.49

6

Battery, 30 Amperes

278001882

$184.01

7

Battery Bolt Kit

250000282

$7.29

8

Hex. Screw M8 X 40

207184060

$2.22

9

Flat Washer 8 mm, Stainless

234082600

$2.43

10

Battery Support

278003306

$20.99

11

Hex. Screw M6 X 45

207164560

$1.89

12

Elastic Stop Nut M6, Brass

232561200

$4.23

13

Flat Washer M6, Stainless

234062600

$0.77

14

Grommet

293720029

$1.59

15

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

16

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

17

Tie Wrap 94 mm | 4X4

293750001

$1.03

18

Hex. Flange Screw M6.81 x 20

243162060

$3.72

19

Flat Washer M6, Stainless

234062600

$0.77

20

SUSPENSION MODULE SUPPORT - Call your local BRP dealership | With WDL

278002403

Unavailable

21

SUPPORT - Call your local BRP dealership

278003293

Unavailable

22

Pop Rivet 3/16"

204000081

$1.49

23

Strap

269501299

$19.49

24

Elastic Stop Nut M6, Brass

232561200

$4.23

25

Tie-Rap 180 mm

414115200

$0.11

26a

Tie Wrap 368 mm

293750008

$1.04

26b

Tie Rap, 533 mm

293750047

$2.09

27

Battery Ground Cable

278003269

$41.49

30

Hex. Screw M10 X 20, Scotch Grip

207302060

$4.02

31

Flat Washer 10 mm, Stainless

234000600

$1.46

32

Cable-Starter

278003398

$63.99

33

Elastic Stop Nut M6, Brass

232561200

$4.23

34

Stainless Flat Washer M6

234061600

$0.33

35

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

36

LH Throttle Sensor

278002284

$119.99

37

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

38

Stainless Flat Washer M6

234061600

$0.33

39

Cadran Info *Lcd Gauge This part replaces 278002659.

278002761

$1.00

40

Throttle Position Sensor

278002283

$119.99

41

SWITCH - Call your local BRP dealership

278002603

$98.99

42

Switch RH Mode/Set

278002602

$126.99

43

Safety Nut (DESS Switch)

278002963

$3.28

44

O.T.A.S Actuator

278003537

$42.99

45

O.T.A.S. Sensor Ass'y

278003009

$109.99

46

Safety Lanyard, Antitheft

278002483

$58.49

47

Safety Lanyard, Learning Key

278002484

$56.99
