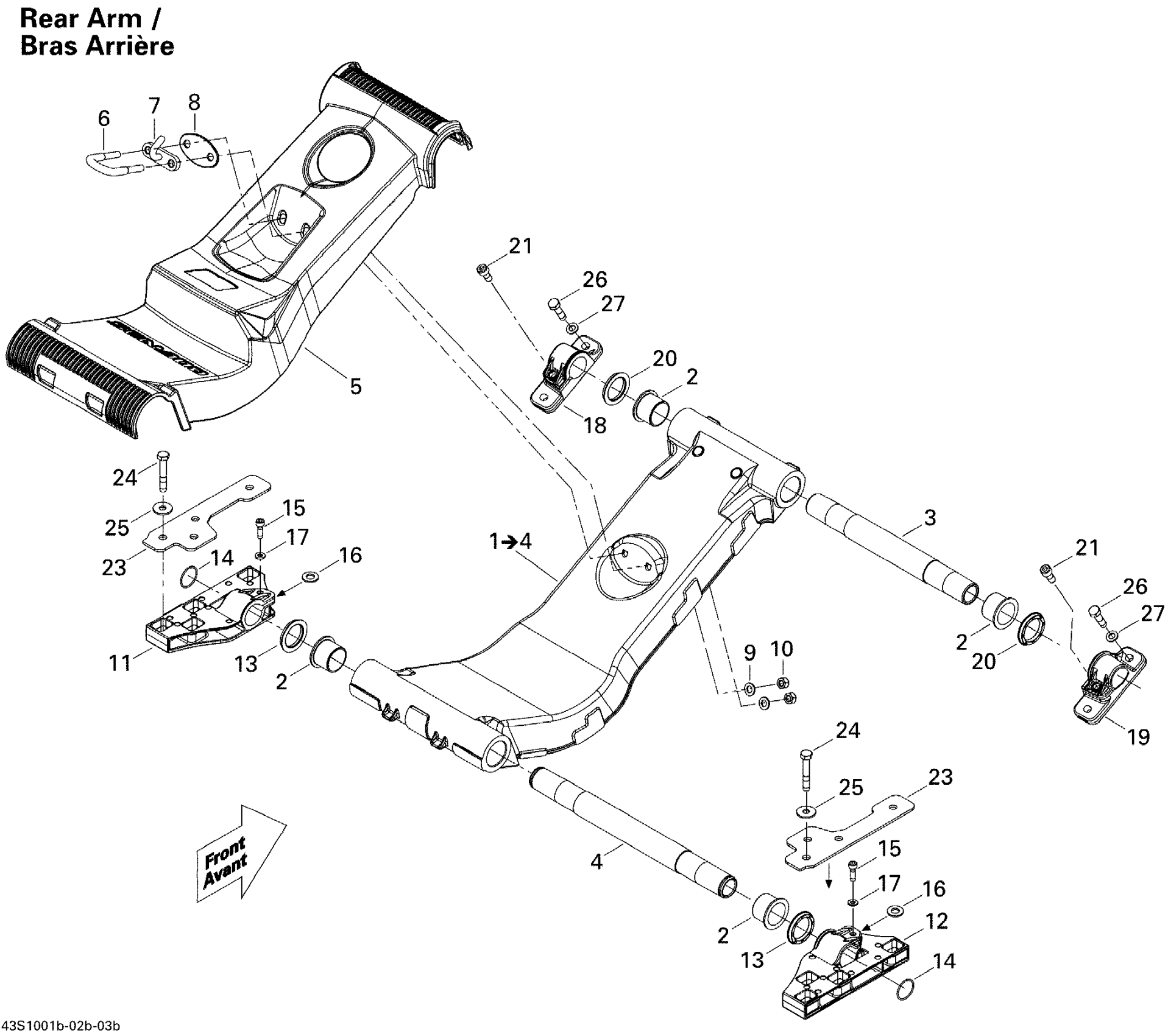

Sea-doo RXT iS 260, 2010 08- Suspension , Rear Arm Diagram

#

Description
Price

1

REAR ARM ASS'Y - Call your local BRP dealership | Includes 1001 to 1001c

279000001

Unavailable

2

Bushing

279000019

$24.99

3

PIVOT TUBE - Call your local BRP dealership

279000031

Unavailable

4

PIVOT TUBE - Call your local BRP dealership

279000033

Unavailable

5

REAR ARM MOULDING - Call your local BRP dealership

279000080

Unavailable

6

U-Clamp

292000933

$59.49

7

Hook | Package LTD

291002351

$69.99

8

Black, Finition Plate

291001386

$10.99

9

Stainless, Flat Washer 8 mm

234081600

$0.55

10

Hex. Elastic Nut M8 Brass

232581200

$2.22

11

LH REAR BASE - Call your local BRP dealership

279000083

Unavailable

12

RH REAR BASE - Call your local BRP dealership

279000087

Unavailable

13

RUBBER BUMPER - Call your local BRP dealership

279000047

Unavailable

14

RETAINING RING - Call your local BRP dealership

279000100

Unavailable

15

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.76

16

Flat Washer 10 mm, Stainless

234001600

$1.15

17

Stainless Flat Washer M6

234061600

$0.33

18

LH CLAMP - Call your local BRP dealership

279000089

Unavailable

19

RH CLAMP - Call your local BRP dealership

279000092

Unavailable

20

RUBBER BUMPER - Call your local BRP dealership

279000047

Unavailable

21

Socket Head Screw M8 X 20, Scotch Grip

205582060

$4.44

23

RETAINING PLATE - Call your local BRP dealership

279000114

$14.99

24

Hex. Screw M8 X 50, Scotch Grip

207285060

$2.11

25

Flat Washer 8 mm, Stainless

234082600

$2.43

26

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

27

Flat Washer M8, Stainless

234080600

$1.48
