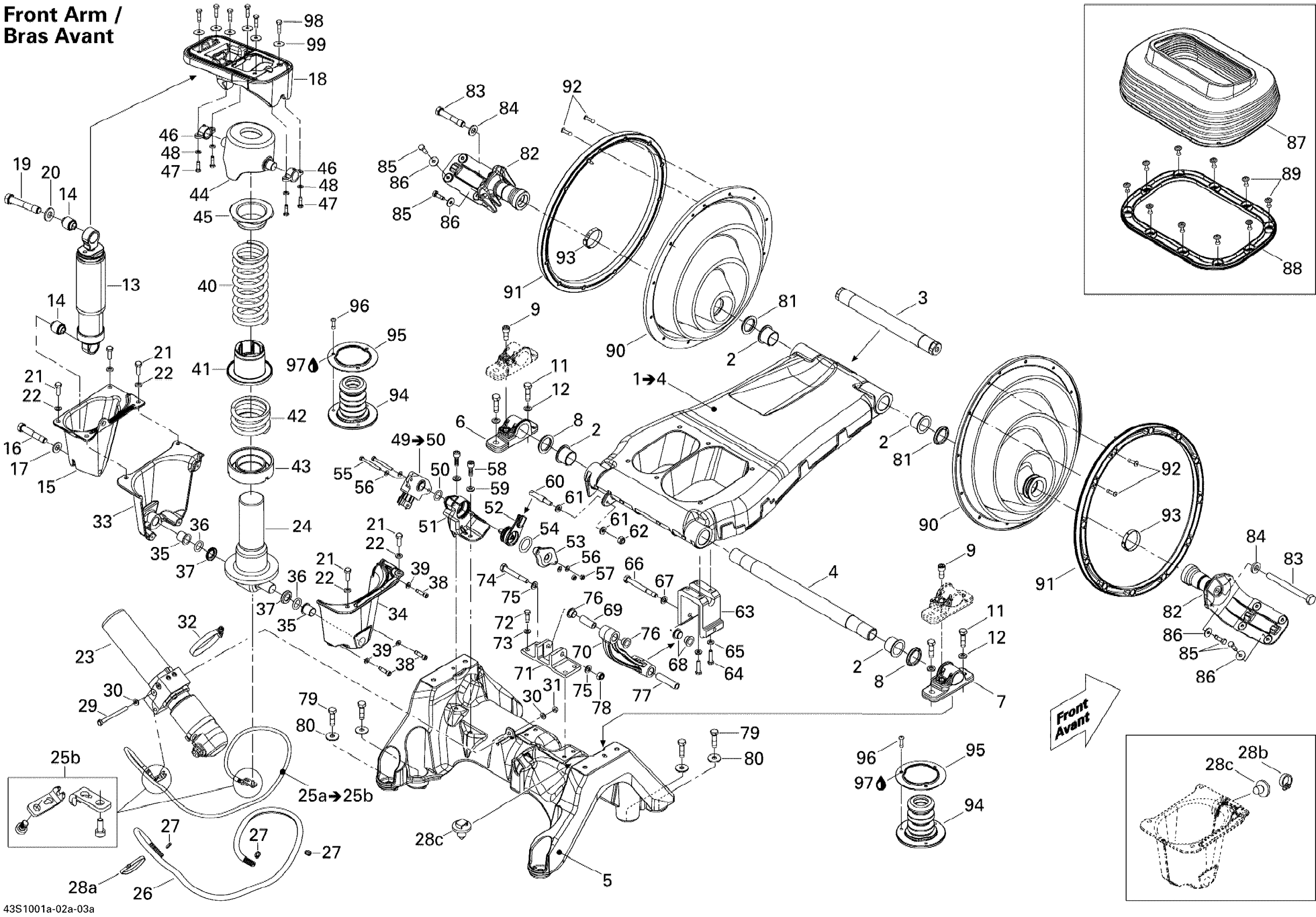

Sea-doo RXT iS 260, 2010 Suspension , Front Arm Diagram

#

Description
Price

1

FRONT ARM ASS'Y - Call your local BRP dealership | Includes 41 to 41d

279000308

Unavailable

2

Bushing

279000019

$22.36

3

PIVOT TUBE - Call your local BRP dealership

279000038

Unavailable

4

PIVOT TUBE - Call your local BRP dealership

279000041

Unavailable

5

FRONT ARM BASE - Call your local BRP dealership

279000167

Unavailable

6

LH CLAMP - Call your local BRP dealership

279000089

Unavailable

7

RH CLAMP - Call your local BRP dealership

279000092

Unavailable

8

RUBBER BUMPER - Call your local BRP dealership

279000047

Unavailable

9

Socket Head Screw M8 X 20, Scotch Grip

205582060

$4.15

11

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.78

12

Flat Washer M8, Stainless

234080600

$1.43

13

SHOCK ABSORBER - Call your local BRP dealership | RXT IS

279000004

Unavailable

14

Bushing

279000051

$75.34

15

SHOCK LOWER HOLDER - Call your local BRP dealership

279000055

Unavailable

16

HEX. SCREW M12 X 70, SCOTCH GRIP - Call your local BRP dealership

207227060

Unavailable

17

FLAT WASHER M12 - Call your local BRP dealership

250200053

Unavailable

18

Shock Upper Holder

279000057

$177.58

19

HEX. SCREW M12 X 70, SCOTCH GRIP - Call your local BRP dealership

207227060

Unavailable

20

FLAT WASHER M12 - Call your local BRP dealership

250200053

Unavailable

21

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.27

22

Flat Washer M8, Stainless

234080600

$1.43

23

PUMP ASS'Y - Call your local BRP dealership This part replaces 279000207.

279000208

Unavailable

24

ACTUATOR - Call your local BRP dealership

279000117

Unavailable

25a

CONNECTOR HOSE - Call your local BRP dealership

279000162

Unavailable

25b

Not Available As Spare Part - Friction Washer

Unavailable

26

Tubing 6 Mm 3000Mm Long

219704425

$12.75

27

Tie Wrap 94 mm | 4X4

293750001

$0.96

28a

Tie Wrap 368 mm

293750008

$0.97

28b

Tie-Rap 180 mm

414115200

$0.10

28c

Mount Dart

293730040

$0.99

29

Hex. Screw M6 X 70

207067060

$5.30

30

Stainless Flat Washer M6

234061600

$0.28

31

Elastic Stop Nut M6, Brass

232561200

$4.03

32

Norma Clamp

293650079

$10.21

33

LH SPRING HOLDER - Call your local BRP dealership

279000070

Unavailable

34

RH SPRING HOLDER - Call your local BRP dealership

279000074

Unavailable

35

BUSHING - Call your local BRP dealership

279000103

Unavailable

36

O-RING - Call your local BRP dealership

279000104

Unavailable

37

BUSHING - Call your local BRP dealership

279000105

Unavailable

38

Socket Head Screw M6 X 25, Scotch Grip

205562560

$1.96

39

Stainless Flat Washer M6

234061600

$0.28

40

PAINTED SPRING - Call your local BRP dealership | RXT IS

279000005

Unavailable

41

SPRING SPACER - Call your local BRP dealership | RXT IS

279000118

Unavailable

42

PAINTED SPRING - Call your local BRP dealership | RXT IS

279000119

Unavailable

43

LOWER SPRING PROTECTOR - Call your local BRP dealership | RXT IS

279000133

Unavailable

44

UPPER SPRING HOLDER - Call your local BRP dealership

279000061

Unavailable

45

UPPER SPRING PROTECTOR - Call your local BRP dealership

279000134

Unavailable

46

CLAMP - Call your local BRP dealership

279000106

Unavailable

47

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.40

48

Stainless Flat Washer M6

234061600

$0.28

49

Position Sensor

420866120

$89.52

50

O-Ring

270000544

$4.27

51

POSITION SENSOR BRACKET - Call your local BRP dealership

279000098

Unavailable

52

SENSOR LEVER - Call your local BRP dealership

279000099

Unavailable

53

POSITION SENSOR COVER - Call your local BRP dealership

279000107

$6.81

54

O-Ring

279000108

$5.61

55

Hex. Screw M4 X 40

207144060

$4.15

56

Flat Washer 4 mm, Stainless

234041600

$1.04

57

Elastic Stop Nut M4

232541200

$2.00

58

Socket Head Screw M6 X 12, Scotch Grip

205561260

$1.49

59

Stainless Flat Washer M6

234061600

$0.28

60

THREADED ROD - Call your local BRP dealership

279000139

Unavailable

61

Stainless Flat Washer M6

234061600

$0.28

62

Elastic Stop Nut M6, Brass

232561200

$4.03

63

SPRING ALIGNMENT ADAPTOR - Call your local BRP dealership

279000154

Unavailable

64

Socket Head Screw M6 X 25, Scotch Grip

205562560

$1.96

65

Stainless Flat Washer M6

234061600

$0.28

66

HEX. SCREW M8 X 75, SCOTCH GRIP - Call your local BRP dealership

207287560

Unavailable

67

Flat Washer M8, Stainless

234080600

$1.43

68

BUSHING - Call your local BRP dealership

279000137

$7.10

69

SPACER - Call your local BRP dealership

279000138

Unavailable

70

SPRING ALIGNMENT ARM - Call your local BRP dealership

279000157

Unavailable

71

BRACKET - Call your local BRP dealership

279000155

Unavailable

72

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.40

73

Stainless Flat Washer M6

234061600

$0.28

74

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086060

$1.79

75

Flat Washer M8, Stainless

234080600

$1.43

76

BUSHING - Call your local BRP dealership

279000137

$7.10

77

SPACER - Call your local BRP dealership

279000153

Unavailable

78

Hex. Elastic Nut M8 Brass

232581200

$1.48

79

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.78

80

Flat Washer

279000336

$9.58

81

RUBBER BUMPER - Call your local BRP dealership

279000047

Unavailable

82

FOOT REST - Call your local BRP dealership

279000306

Unavailable

83

Hex. Screw M10 X 110, Scotch Grip

230201060

$12.10

84

Flat Washer

211200051

$1.54

85

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.40

86

Flat Washer M6

250200115

$3.12

87

CENTRAL BELLOWS - Call your local BRP dealership

279000008

Unavailable

88

Retaining Plate

279000010

$16.39

89

Pop Rivet 3/16"

293150123

$3.94

90

Lateral Bellows

279000009

$72.36

91

Retaining Ring

279000011

$15.64

92

Pop Rivet 3/16"

293150176

$2.09

93

Oetiker Gear Clamp

293650199

$8.22

94

Bushing

279000019

$22.36

95

Retaining Ring

279000115

$11.69

96

Pop Rivet 3/16"

293150005

$0.46

97

Silicone Sealant 51388, 300 ml

296000309

$36.99

98

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.78

99

Flat Washer 8 mm, Stainless

250200175

$1.48
