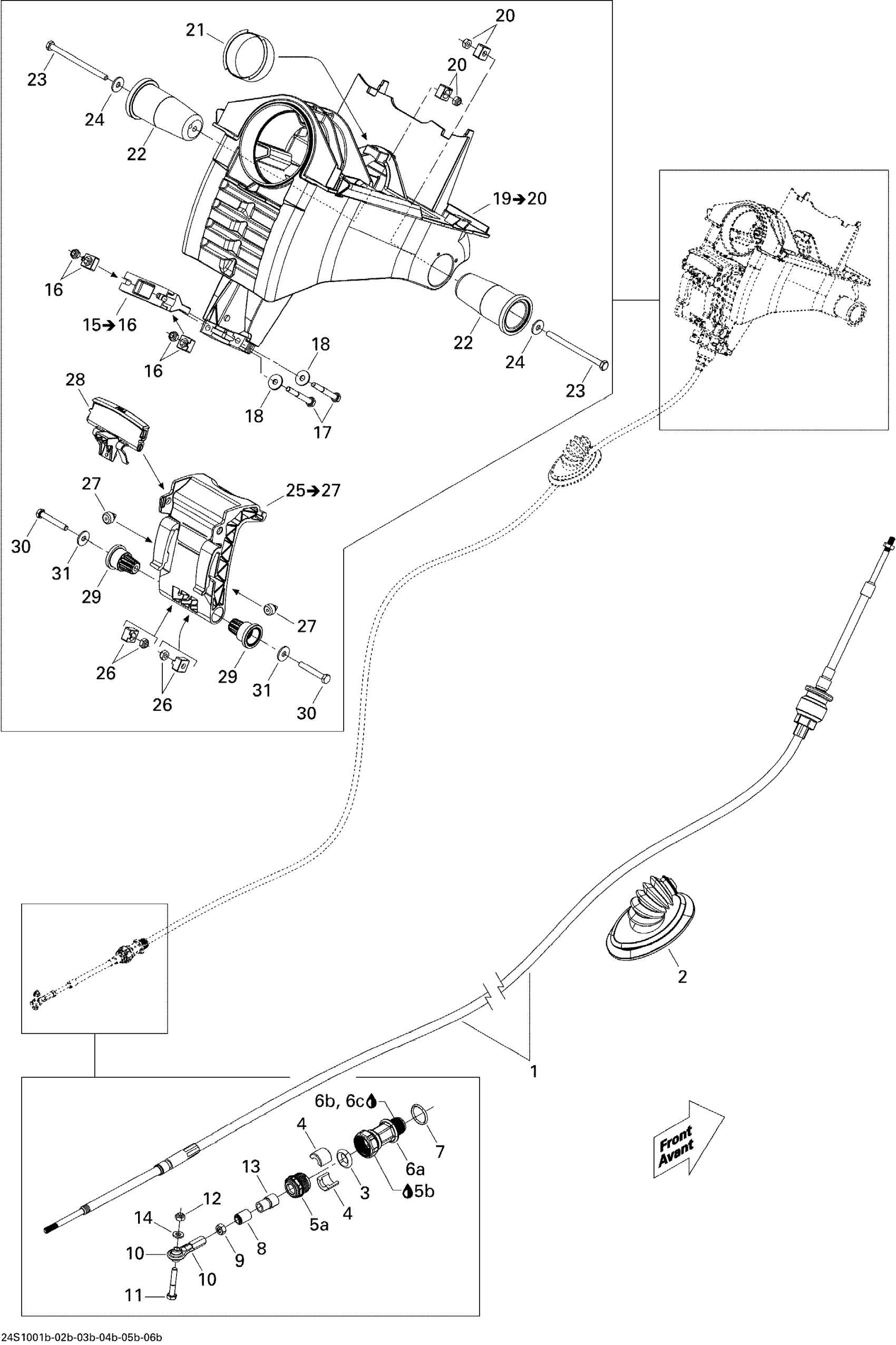

Sea-doo RXT iS 260, 2010 Steering 2 Diagram

#

Description
Price

1

Steering Cable

277001602

$262.66

2

Grommet | Model with Suspension

293720083

$19.37

3

Rubber Washer

293830063

$1.73

4

Half Ring

277001527

$9.58

5a

Steering Cable Lock This part replaces 277000784.

277001729

$11.96

5b

Was 293800013 Loctite 56765

219704454

$63.40

6a

CABLE ADAPTOR - Call your local BRP dealership

277001674

Unavailable

6b

Était Was 293800050 Loctite 577, 250 ml

219704459

$104.99

6c

Was 293800041 Loctite Primer 7649

219704458

$41.99

7

O-RING - Call your local BRP dealership

293300141

Unavailable

8

Wiper Rod

277001582

$10.13

9

Hex. Nut 1/4"-28

211100056

$0.64

10

Ball Joint

277000775

$46.24

11

Hex. Screw M6 X 35

207063560

$2.12

12

Elastic Stop Nut M6, Brass

232561200

$4.03

13

End Piece

277001583

$12.79

14

Stainless Flat Washer M6

234061600

$0.28

15

Thrust Support Ass'y

277001655

$26.09

16

Housing Nut M6 | Included 550f to 550f2

269502408

$5.07

17

Hex. Screw M6 X 50

207165060

$0.87

18

Flat Washer M6, Stainless

234062600

$0.73

19

Steering Support | Includes 710 to 710b

277001942

$103.70

20

Housing Nut M6 | Included 550f to 550f2

269502408

$5.07

21

Wear Ring

277002318

Unavailable

22

Steering Support Pivot

277001605

$17.13

23

Hex. Screw M6 X 90

207169060

$4.13

24

Flat Washer M6, Stainless

234062600

$0.73

25

Handle Ass'y | Includes 780 to 780c

277001658

$123.85

26

Housing Nut M6 | Included 550f to 550f2

269502408

$5.07

27

Rubber Bumper

293830005

$6.12

28

LOCK - Call your local BRP dealership

277001616

$15.64

29

Pivot

277001652

$14.27

30

Hex. Screw M6 X 40

207064060

$1.61

31

Flat Washer M6, Stainless

234062600

$0.73
