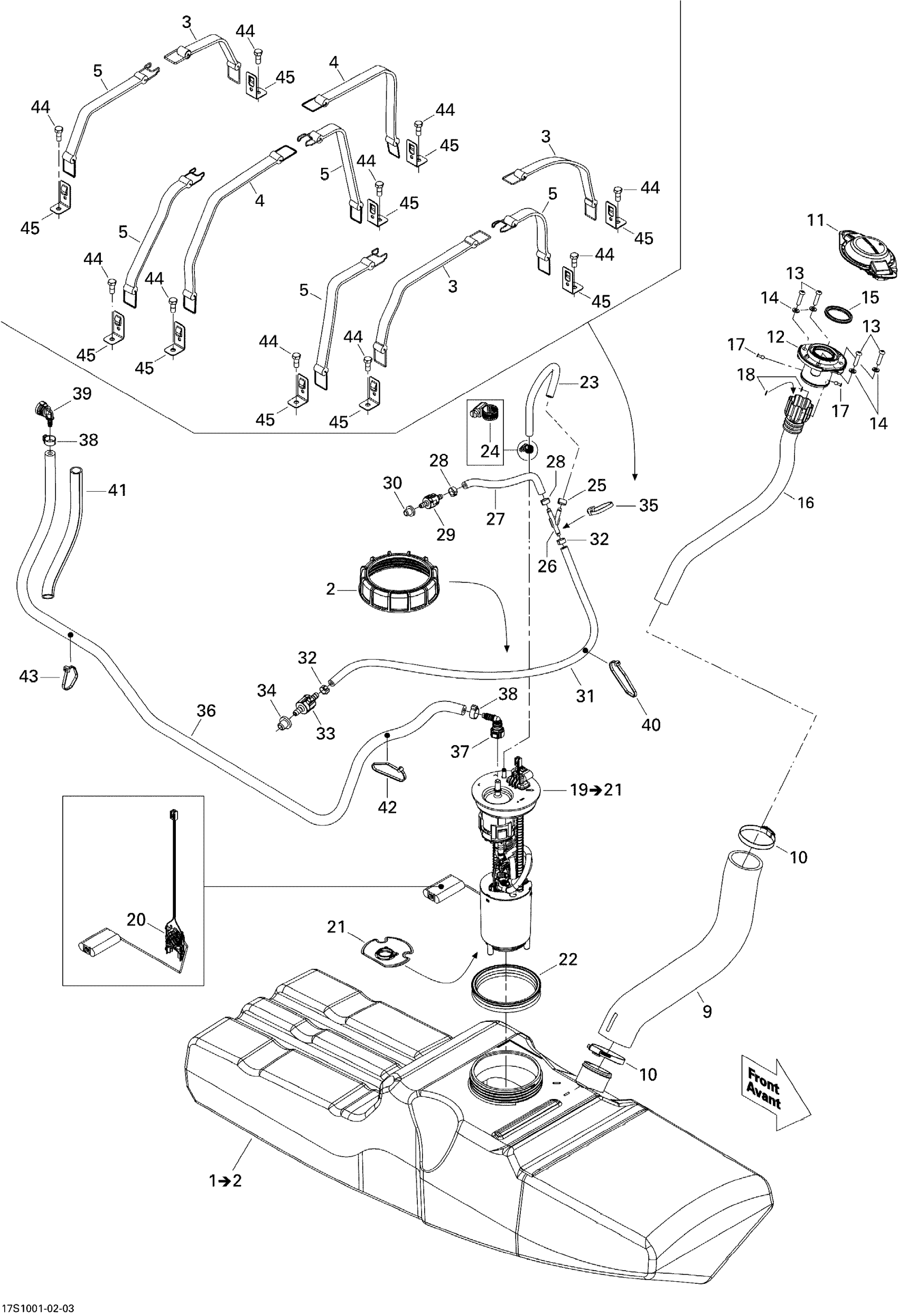

Sea-doo RXT iS 260, 2010 Fuel System Diagram

#

Description
Price

1

FUEL TANK ASS'Y - Call your local BRP dealership | Includes 10 to 10a

275500783

Unavailable

2

Special Nut M130

250100062

$20.12

3

Fuel Tank Strap

293850087

$16.39

4

Fuel Tank Strap

293850095

$16.39

5

Fuel Tank Strap

293850094

$20.12

9

Hose

275500919

$84.30

10

Norma Clamp

293650081

$11.33

11

Fuel Cap Ass'y

275500832

$69.37

12

FILLER NECK, FUEL - Call your local BRP dealership

275500744

Unavailable

13

Torx Screw M6 X 25, Scotch Grip

250000328

$1.67

14

Stainless Flat Washer M6

234061600

$0.28

15

X-Ring

293300139

$22.36

16

FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067.

275500757

Unavailable

17

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

18

Flat Washer M3, Stainless

234032600

$0.52

19

Fuel Pump Ass'y | Includes 18 to 20

275500779

$425.99

20

Sensor Lever

275500780

$202.21

21

Fuel Filter

270600113

$31.31

22

Gasket

293250173

$17.88

23

Was 275500549 Hose 1/4"

219704357

$178.33

24

Norma Clamp

293650084

$3.88

25

Oetiker Gear Clamp

293650025

$2.82

26

Y-Fitting

293710059

$9.40

27

HOSE 1/4 - Call your local BRP dealership

204300184

Unavailable

28

Oetiker Gear Clamp

293650025

$2.82

29

Check Valve

275500770

$55.94

30

Grommet

293720029

$1.30

31

HOSE 1/4 - Call your local BRP dealership

204300184

Unavailable

32

Oetiker Gear Clamp

293650025

$2.82

33

Check Valve

275500774

Unavailable

34

Grommet

293720029

$1.30

35

Tie-Rap 180 mm

414115200

$0.10

36

HOSE I.D. 7.9MM 3000MM LONG - Call your local BRP dealership

219704395

Unavailable

37

Quick Attach 90°

275500700

$14.48

38

Oetiker Clamp

293650140

$2.46

39

Elbow Fitting 90°

293710105

$12.15

40

Tie-Rap 180 mm

414115200

$0.10

41

Tubing 16 Mm 1000Mm Long

219704408

$7.15

42

Tie-Rap 180 mm

414115200

$0.10

43

Tie Wrap 368 mm

293750008

$0.97

44

Hex. Flange Screw M6.81 X 25, Plastite

243162560

$1.67

45

STRAP CLIP 90 - Call your local BRP dealership

275500743

Unavailable
