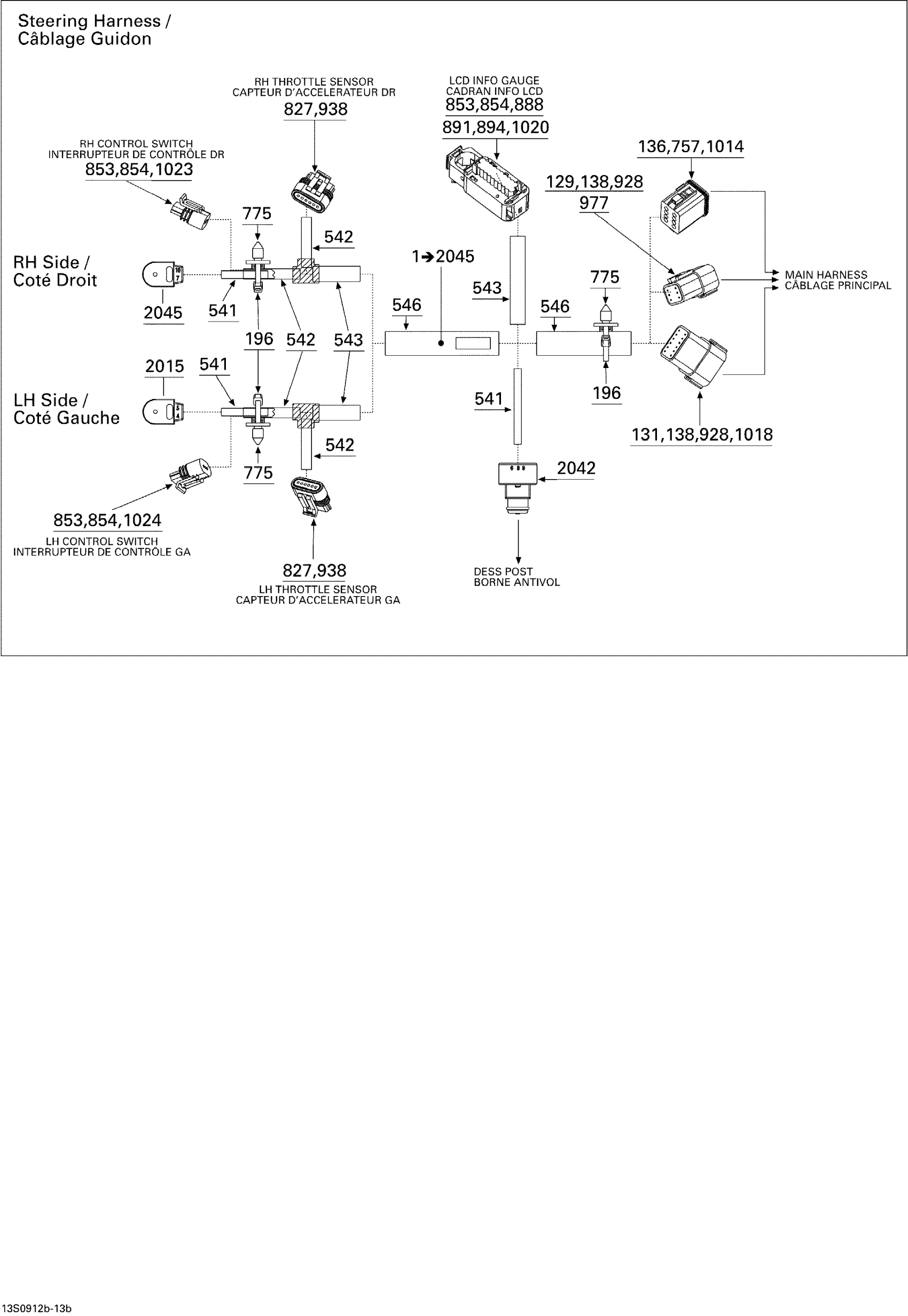

Sea-doo RXT iS 255, 2009 Electrical Harness 2 Diagram

#

Description
Price

1

STEERING HARNESS - Call your local BRP dealership | Includes 1 to 2045

278002298

Unavailable

129

Female Lock, 6 Circuits

278000735

$3.02

131

MALE LOCK, 12 CIRCUITS - Call your local BRP dealership

409015600

Unavailable

136

SECONDARY LOCK, 8 CIRCUITS - Call your local BRP dealership

278001744

Unavailable

138

Sealing Cap

293000052

$2.55

196

Tie Wrap 142 mm

293750002

$0.88

757

Female Terminal

278001665

$3.73

541

Tubing 6 Mm 3000Mm Long

219704425

$13.14

542

Was 409901700 Tubing (9 mm)

219704399

$79.97

543

Tubing 12 mm

409902000

Unavailable

546

Was 409901600 Tubing 19mm

219704398

$89.97

775

Mount Dart

293730040

$0.86

827

Female Terminal

710001119

$4.32

853

Wire Seal

710001163

$5.10

854

Female Terminal

710001164

$5.92

888

Seal

710001230

$2.75

891

Terminal

710001228

$2.72

894

Cap

710001225

$7.27

928

Male Terminal

710001348

$11.14

938

Female Terminal Housing 6 Circuits

278002299

$8.85

977

Male Terminal Housing, 6 Circuits

710001539

$15.57

1014

Female Terminal Housing, 8 Circuits

278002376

Unavailable

1018

MALE TERMINAL HOUSING, 12 CIRCUITS - Call your local BRP dealership

278002380

Unavailable

1020

Male Terminal Housing, 20 Circuits

278002385

$16.89

1023

Female Terminal Housing, 3 Circuits

278003442

$8.29

1024

Female Terminal Housing 3 Circuits

278002387

$7.24

2015

START/STOP SWITCH - Call your local BRP dealership

278001733

Unavailable

2042

Safety Switch This part replaces 278002325.

278002773

$89.67

2045

Start/Stop Switch Kit

295501137

$48.07
