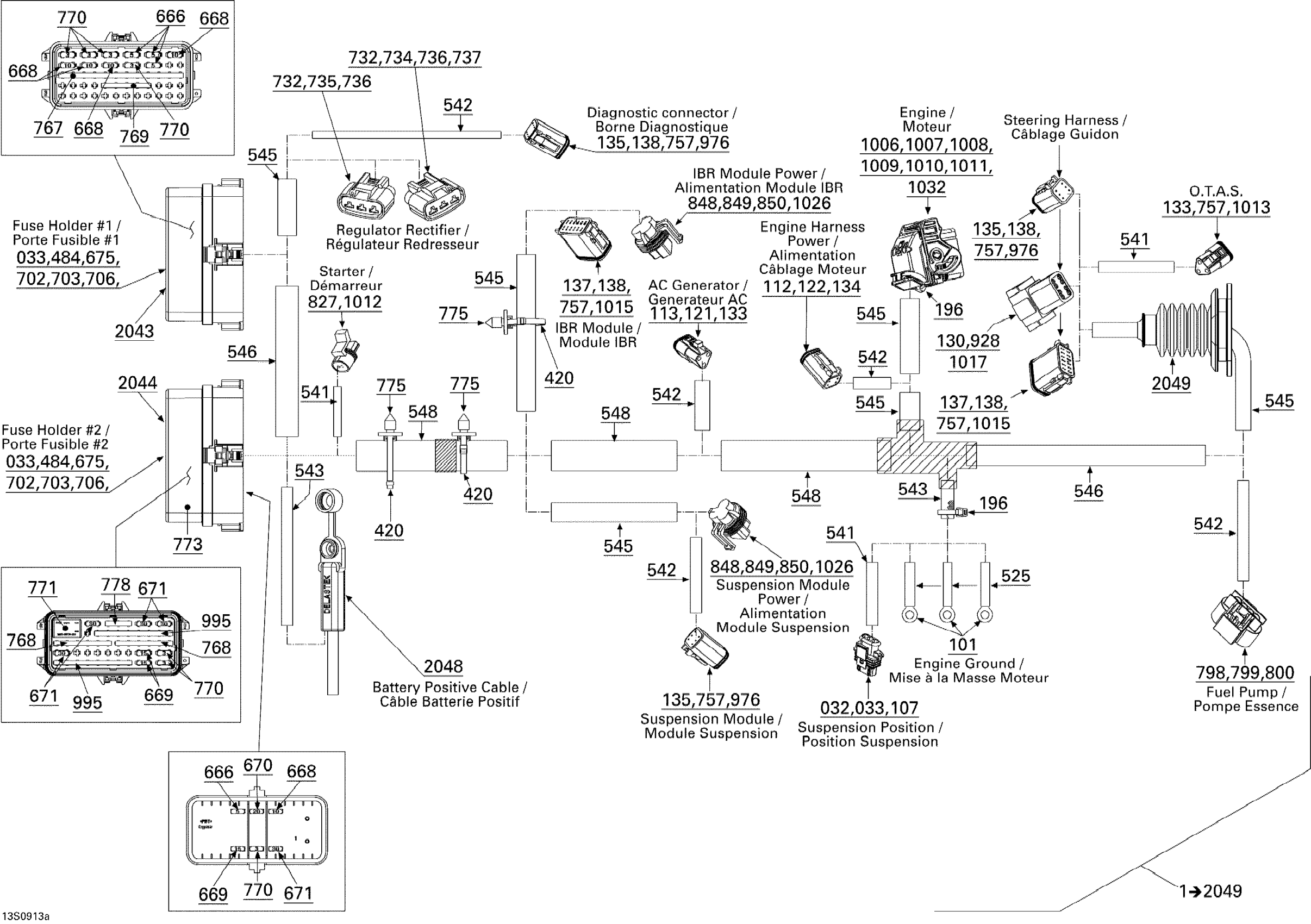

Sea-doo RXT iS 255, 2009 Electrical Harness 1 Diagram

#

Description
Price

1

WIRING HARNESS MAIN - Call your local BRP dealership | Includes 1 to 2049

278002398

$1.00

32

Female Terminal

278000998

$4.39

33

Wire Seal

278000999

$3.19

101

Open Barrel Terminal

278001392

$4.79

107

Male Housing, 3 Circuits

278000997

$19.49

112

Female Terminal

278000632

$2.09

113

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

121

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$30.99

122

Male Connector, 4 Circuits | CE

278000739

$19.49

130

LOCK MALE, 8 CIRCUITS - Call your local BRP dealership

515175276

Unavailable

133

Female Lock

409207200

$4.39

134

Male Lock, 4 Circuits | CE

278000738

$3.09

135

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

137

Female Lock, 12 Circuits

409015700

$4.55

138

Sealing Cap

293000052

$3.19

196

Tie Wrap 142 mm

293750002

$1.25

420

Tie-Rap 180 mm

414115200

$0.11

484

Seal

415128501

$1.89

525

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

541

Tubing 6 Mm 3000Mm Long

219704425

$13.75

542

Was 409901700 Tubing (9 mm)

219704399

$84.99

543

Tubing 12 mm

409902000

Unavailable

545

Tubing 16 Mm 1000Mm Long

219704408

$7.49

546

Was 409901600 Tubing 19mm

219704398

$95.99

548

Tubing 25 MM 1000MM Long

219704402

$15.99

666

Little Fuse, 5 Amperes

710000742

$8.79

668

Little Fuse, 10 Amperes

710000744

$8.79

669

Little Fuse, 15 Ampere

710000745

$8.49

670

Little Fuse, 20 Amperes

710000746

$8.49

671

Little Fuse, 30 Amperes

710000747

$8.49

675

Fuse Box Base Ass´y

415129856

$50.99

702

Female Terminal

710000836

$5.61

703

Female Terminal

710000837

$5.39

706

Cap

710000840

$5.89

732

Female Terminal

710000877

$9.12

734

Female Housing, 3 Circuits

710000879

$25.99

735

Housing, 3 Circuits

710000880

$21.99

736

Seal

710000881

$17.99

737

Cap

710000882

$11.49

757

Female Terminal

278001665

$4.55

767

Bus Bar

278002165

$8.79

768

Bus Bar

278002165

$8.79

769

Bus Bar

278002165

$8.79

770

Little Fuse, 3 AMP

710001008

$3.79

771

Relay, 30 AMP | Obsolete. ATV order 515176774

278002168

Unavailable

773

Fuse Cover

710001026

$21.99

775

Mount Dart

293730040

$1.04

778

Bus Bar

278002165

$8.79

798

Male Housing, 4 Circuits

278002185

$7.90

799

Wire Seal

278002186

$5.50

800

Female Terminal

278002187

$6.39

827

Female Terminal

710001119

$5.39

848

PLUG - Call your local BRP dealership

710001158

Unavailable

849

Wire Seal

710001159

$6.35

850

Female Terminal

710001160

$6.35

928

Male Terminal

710001348

$12.99

976

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

995

Bus Bar

278002165

$8.79

1006

Female Terminal Housing, 48 Circuits

710001588

$48.49

1007

Female Terminal

710001589

$2.21

1008

Female Terminal

710001590

$2.09

1009

Cover, 48 positions

710001591

$12.18

1010

Plug

710001592

$2.21

1011

Plug

710001593

$2.21

1012

FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

278002374

Unavailable

1013

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$30.99

1015

Female Terminal Housing, 12 Circuits

278002377

$49.99

1017

MALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

278002379

Unavailable

1026

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

278002388

Unavailable

1032

Female Terminal

710001727

$3.19

2043

FUSE-RELAY DECAL - Call your local BRP dealership

219903034

Unavailable

2044

FUSE-RELAY DECAL - Call your local BRP dealership

219903035

Unavailable

2048

BATTERY CABLE - Call your local BRP dealership

278002400

Unavailable

2049

Grommet | Model with Suspension

293720083

$20.99
