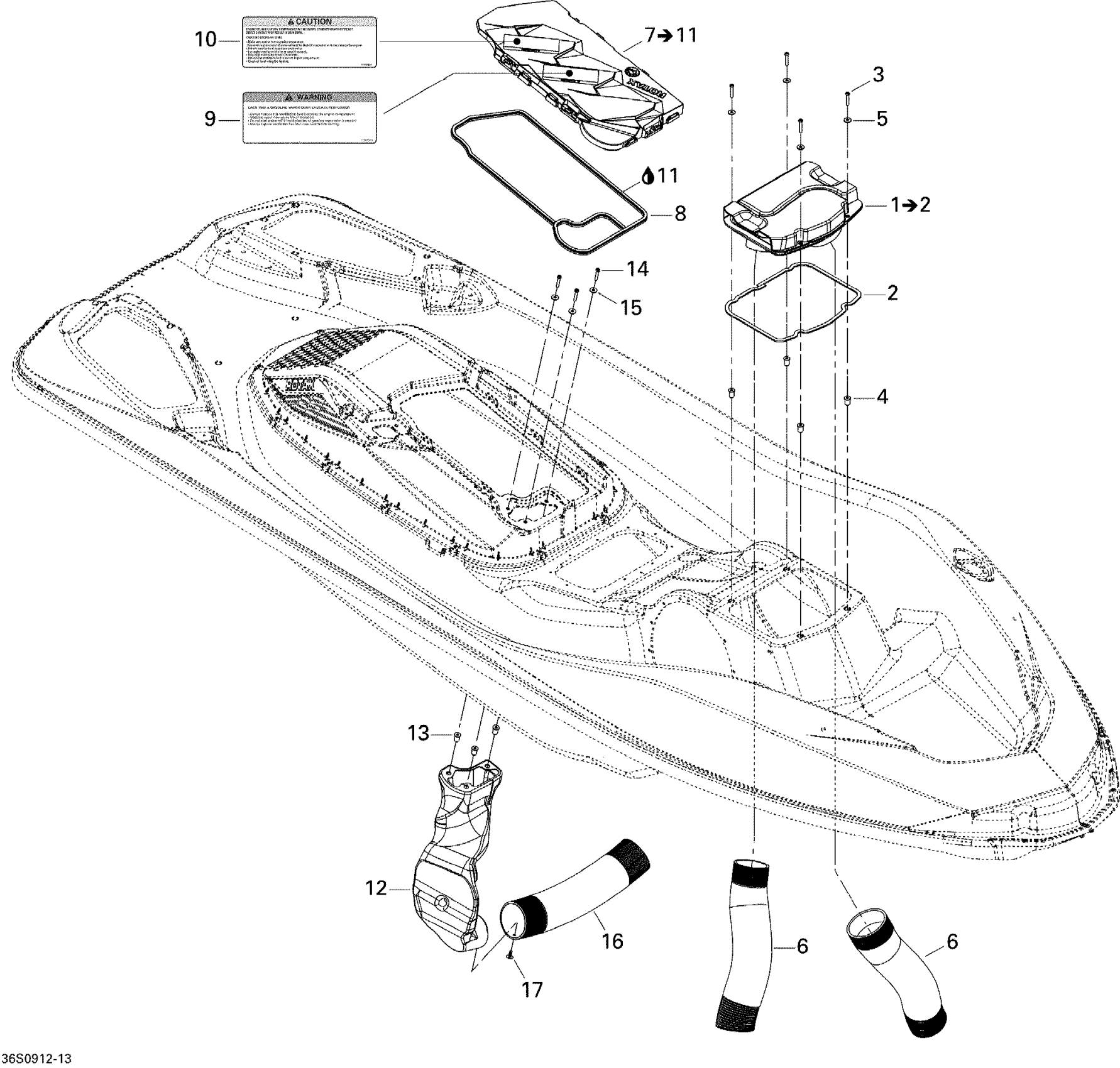

Sea-doo RXT iS 255, 2009 09- Ventilation Diagram

FRONT VENTILATION BOX ASS'Y - Call your local BRP dealership | Includes 10 to 10a

237000063

Unavailable

Was 293250099 Gasket

219704377

$7.20

Socket Head Screw M6 X 35

205463560

$2.00

Expansion Nut M6 X 1

250100150

$2.11

Flat Washer M6, Stainless

234062600

$0.77

VENT HOSE 3.5 - Call your local BRP dealership

237000030

Unavailable

Vent Adaptor | Includes 2105 to 2105e

295501145

$104.99

LIP SEAL 2000MM LONG - Call your local BRP dealership

219704376

Unavailable

WARNING DECAL, GASOLINE VAPOR - Call your local BRP dealership

219903090

Unavailable

CAUTION DECAL, ENGINE OIL - Call your local BRP dealership

219903084

Unavailable

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

REAR VENT DUCT - Call your local BRP dealership

237000057

Unavailable

Expansion Nut M6 X 1

250100150

$2.11

Socket Head Screw M6 X 35

205463560

$2.00

Flat Washer M6, Stainless

234062600

$0.77

Vent Hose 3.5"

237000031

Unavailable

Black, Dart

293730011

$0.99
