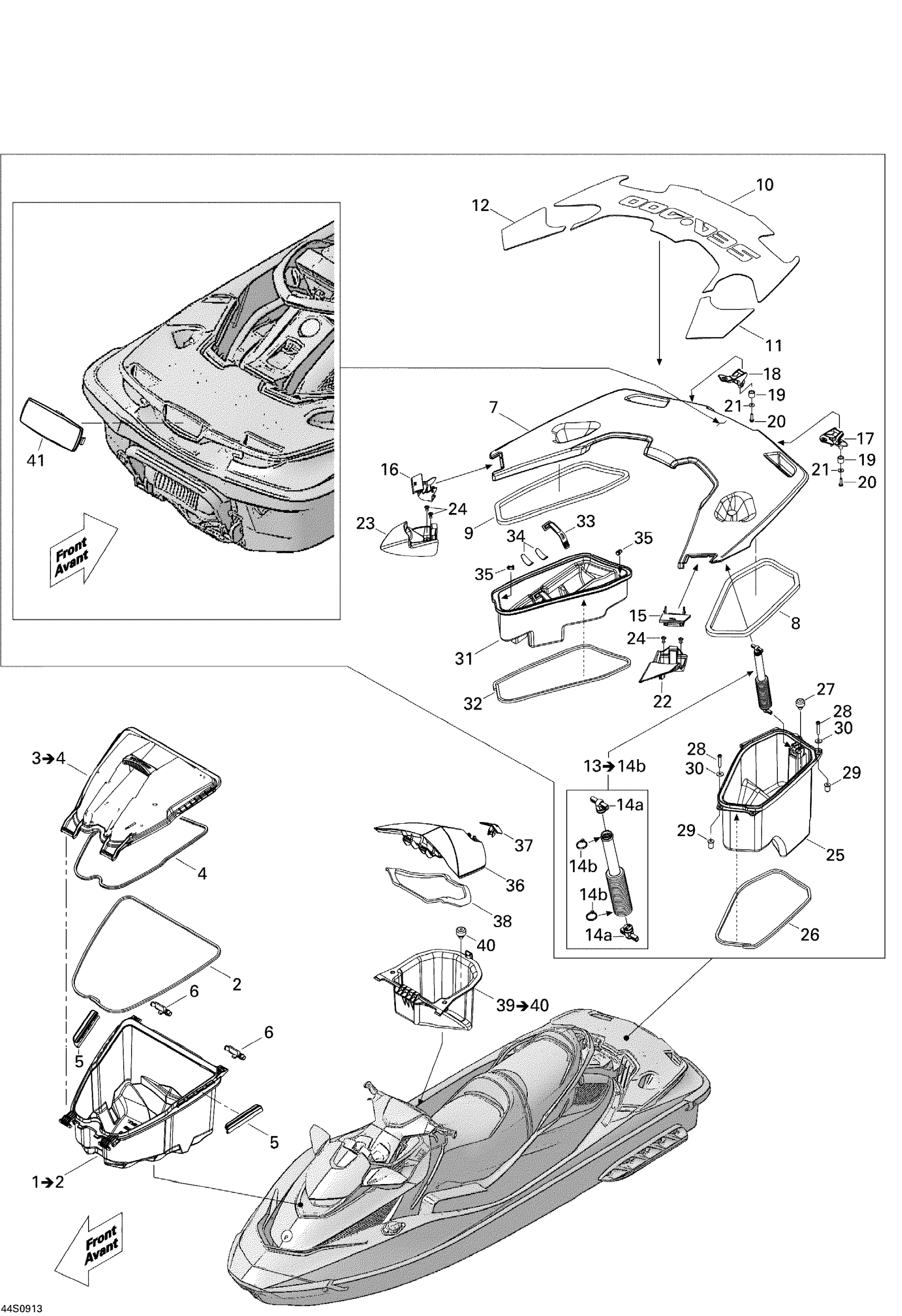

Sea-doo RXT iS 255, 2009 Storage Compartments Diagram

#

Description
Price

1

Storage Bin Ass'y | Includes 10a to 10a2

264000118

$68.63

2

Gasket 1000Mm Long

219704374

$1.90

3

Storage Bin Cover Ass'y | Includes 10b to 10b2

264000120

$35.79

4

NEOPRENE SEAL - Call your local BRP dealership

293250210

Unavailable

5

Clip

269501609

$14.90

6

Latch

264000024

$17.88

7

Rear Platform Ass'y | Includes 50 to 50g

264000034

$319.99

8

Was 293250186 Gasket

219704375

$16.39

9

Was 293250186 Gasket

219704375

$16.39

10

Rear Platform Carpet

291002585

$97.73

11

ANTI SLIP MAT_DECK FL - Call your local BRP dealership

264000040

Unavailable

12

ANTI SLIP MAT_DECK FR - Call your local BRP dealership

264000041

Unavailable

13

Shock Ass'y

264000099

$40.27

14a

Shock Absorber End Fitting

269501984

$10.19

14b

Tie Wrap 94 mm | 4X4

293750001

$0.96

15

LH Latch

264000020

$27.58

16

RH Latch

264000021

$27.58

17

LH PIVOT SUPPORT - Call your local BRP dealership

264000003

Unavailable

18

RH PIVOT SUPPORT - Call your local BRP dealership

264000032

Unavailable

19

SPACER - Call your local BRP dealership

264000042

Unavailable

20

Hex. Flange Screw M6.81 X 25, Plastite

243162560

$1.67

21

Flat Washer M6, Stainless

234062600

$0.73

22

LH LATCH BASE, BLACK - Call your local BRP dealership

264000055

Unavailable

23

RH LATCH BASE, BLACK - Call your local BRP dealership

264000056

Unavailable

24

Pop Rivet 3/16"

293150123

$3.94

25

LH Tray | Includes 200 to 200c

264000097

$65.64

26

Gasket 3000Mm Long

219704378

$25.34

27

Rubber Bumper

293830005

$6.12

28

Socket Head Screw M6 X 35

205463560

$1.88

29

Expansion Nut M6 X 1

250100150

$2.00

30

Flat Washer M6, Stainless

234062600

$0.73

31

RH Rear Tray

264000002

$32.06

32

Gasket 3000Mm Long

219704378

$25.34

33

Strap

269502417

$16.39

34

TRAY PAD - Call your local BRP dealership

264000043

Unavailable

35

Tuflok Plastic Rivet

293150230

$1.39

36

GLOVE DOOR, YELLOW - Call your local BRP dealership

264000018

Unavailable

37

Black, Latch

264000164

$13.09

38

Gasket

293250204

$27.58

39

GLOVE BOX ASS'Y - Call your local BRP dealership | Includes 550 to 550b

264000031

Unavailable

40

Rubber Bumper

293830005

$6.12

41

REAR REWIND CAP - Call your local BRP dealership | Model GTX 155

264000033

Unavailable
