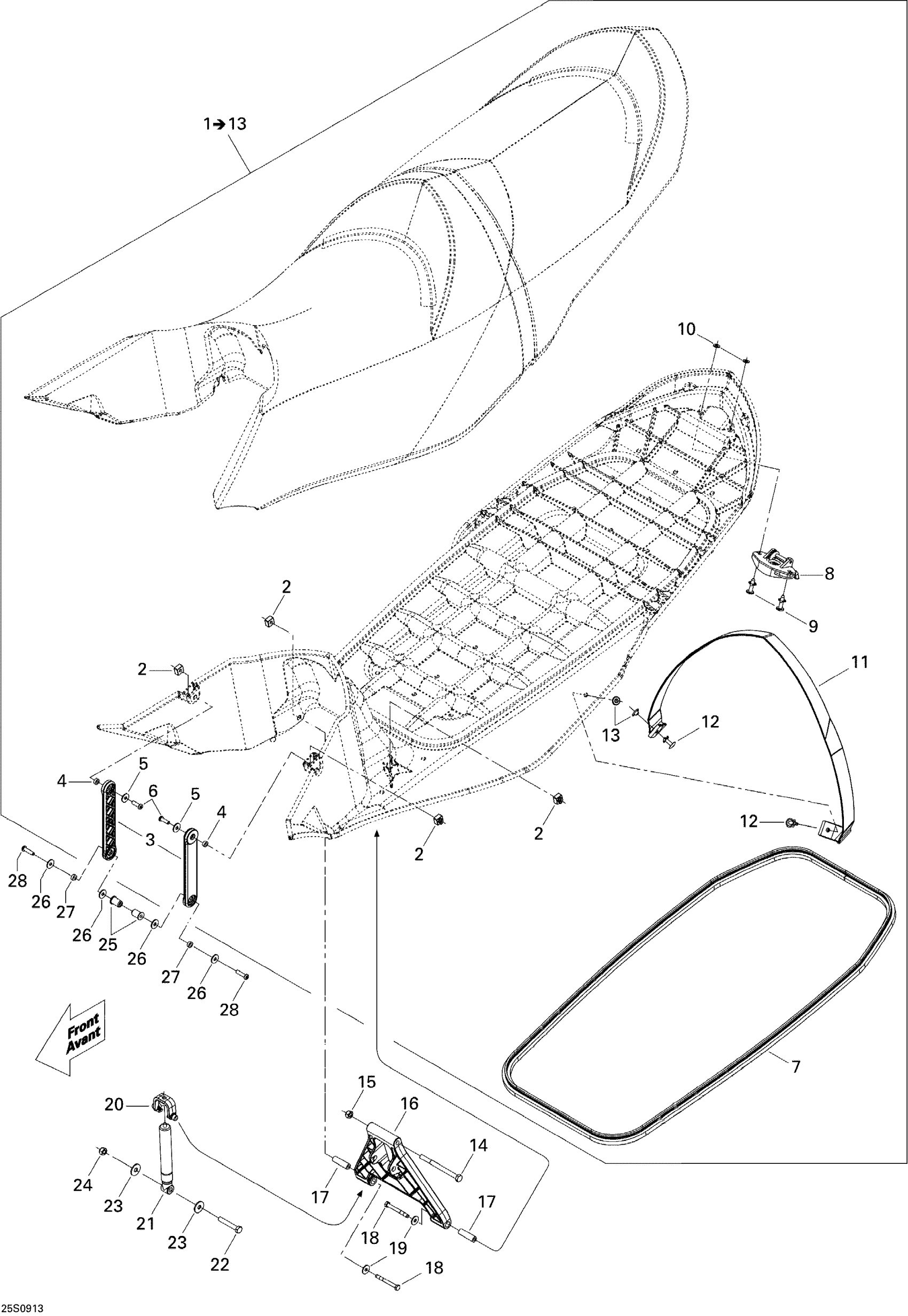

Sea-doo RXT iS 255, 2009 Seat Diagram

#

Description
Price

1

Seat Ass'y | Includes 1 to 13

269001700

$579.12

2

Housing Nut M6 | Included 550f to 550f2

269502408

$4.42

3

Lateral Arm

296000372

$12.96

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Flat Washer M6, Stainless

234062600

$0.64

6

SOCKET SCREW M6 X 20 - Call your local BRP dealership

205462060

Unavailable

7

Was 293200062 Seal

219704366

$61.72

8

Latch Ass'y

269700109

$20.12

9

Rivet 1/4"

293150151

$6.46

10

Stainless Flat Washer M6

234061600

$0.25

11

SEAT STRAP - Call your local BRP dealership

269001580

Unavailable

12

Rivet | Model-T3

293150067

$2.29

13

Grommet

293720067

$9.19

14

HEX. SCREW M8 X 100 - Call your local BRP dealership

230080060

Unavailable

15

Hex. Elastic Nut M8 Brass

232581200

$1.29

16

Center Arm

269501699

$19.47

17

Spacer

269001589

$14.27

18

Hex. Screw M6 X 55, Scotch Grip | Except Europe

207265560

$6.08

19

Flat Washer M6, Stainless

234062600

$0.64

20

End Fitting

269002077

$12.32

21

Shock

269001537

$51.32

22

HEX. SCREW M8 X 50 - Call your local BRP dealership

207085060

Unavailable

23

Flat Washer 8 mm, Stainless

234082600

$1.98

24

Hex. Elastic Nut M8 Brass

232581200

$1.29

25

Expansion Nut M6 X 1

250100150

$1.74

26

Flat Washer M6, Stainless

234062600

$0.64

27

Spacer

269001588

$9.62

28

Socket Head Screw M6 X 25, Scotch Grip

205562560

$1.70
