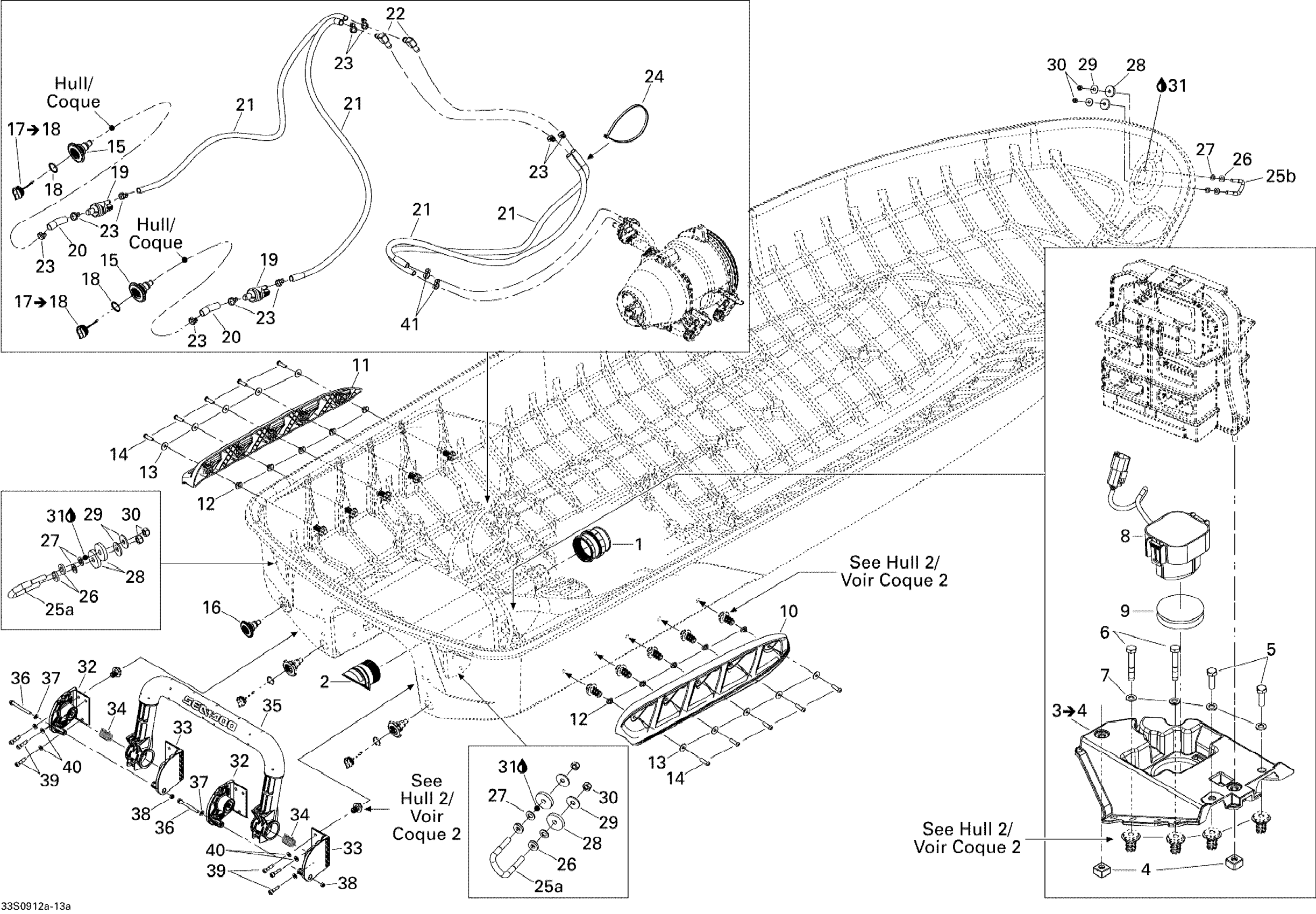

Sea-doo RXT iS 255, 2009 Hull 1 Diagram

#

Description
Price

1

INNER HULL INSERT - Call your local BRP dealership

293450308

Unavailable

2

Outer Hull Insert

293450309

$23.10

3

Battery Base Ass'y

278002343

$58.93

4

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.21

5

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.27

6

Hex. Screw M8 X 50, Scotch Grip

207285060

$1.96

7

Flat Washer M8, Stainless

234080600

$1.43

8

Not Available As Spare Parts

XXX

Unavailable

9

Not Available As Spare Parts

XXX

Unavailable

10

RH Sponson

292001878

$83.55

11

LH Sponson

292001877

$83.55

12

Spacer Sponson

292001349

$9.84

13

Flat Washer 8 mm, Stainless

234082600

$2.27

14

TORX SCREW M8 X 30, STAINLESS - Call your local BRP dealership

250000372

Unavailable

15

Drain Neck Ass'y

292001315

$24.60

16

Drain Neck Ass'y

292001317

$24.60

17

Plug Drain Ass'y | Includes 310 to 310b

292002024

$11.81

18

O-Ring

293300032

$5.61

19

Bailer Ass'y

292001310

$22.36

20

Was 275500008 Hose 12 mm

219704356

$6.82

21

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$31.31

22

ELBOW FITTING 90 - Call your local BRP dealership

293710117

Unavailable

23

Tie Wrap 94 mm | 4X4

293750001

$0.96

24

Tie Wrap 368 mm

293750008

$0.97

25a

U-CLAMP - Call your local BRP dealership

292000011

Unavailable

25b

U-Clamp

292000933

$37.28

26

Flat Washer M8.5 x 18

293050001

$1.48

27

Flat Washer 8 mm, Nylon

234081100

$1.15

28

Rubber Washer

293830037

$2.68

29

Flat Washer 8 mm, Stainless

250200175

$1.48

30

Hex. Elastic Nut M8 Brass

232581200

$1.48

31

Silicone Sealant 51388, 300 ml

296000309

$36.99

32

A Section Support

292001509

$59.99

33

B Section Support

292001510

$59.99

34

Spring

292001259

$24.60

35

Overmolded Bar

292001204

$141.01

36

Hex. Screw M6 x 65 | Produced Before February 01 2010

207066560

$1.78

37

Stainless Flat Washer M6

234061600

$0.28

38

Hex. Elastic Stop Nut M6

232561600

$1.06

39

Socket Head Screw M6 X 25, Scotch Grip

250000076

$1.60

40

Stainless Flat Washer M6

234061600

$0.28

41

Oetiker Clamp

293650042

$2.82
