Description

Price

1

Hood Ass'y Kit This part replaces 269501735.

295501124

$609.99

2

Front Upper Deflector, Yellow

269501737

$154.99

3

Hex. Flange Screw K40 X 16

241141660

$1.48

4

Flat Washer 4 mm, Stainless

234041600

$1.15

5

Spacer

291001203

$13.49

6

Left Latch

269501964

$30.99

7

Right Latch

269501965

$30.99

8

Shock Absorber | Includes 150 to 150d

269501664

$134.99

9a

Shock Absorber End Fitting

269501984

$11.49

9b

Tie Wrap 94 mm | 4X4

293750001

$1.03

10

RH Mirror Ass'y

269501920

$68.99

11

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

12

RH MIRROR HOUSING, YELLOW - Call your local BRP dealership

269501711

Unavailable

13

LH Mirror Ass'y

269501918

$68.99

14

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

15

LH MIRROR HOUSING, YELLOW - Call your local BRP dealership

269501710

Unavailable

16

Synthetic Grease, 400 G

293550010

Unavailable

17

Mirror Spring

269500453

$10.49

18

WING NUT M6 - Call your local BRP dealership

232661600

Unavailable

19

Rubber Bumper

293830135

$15.99

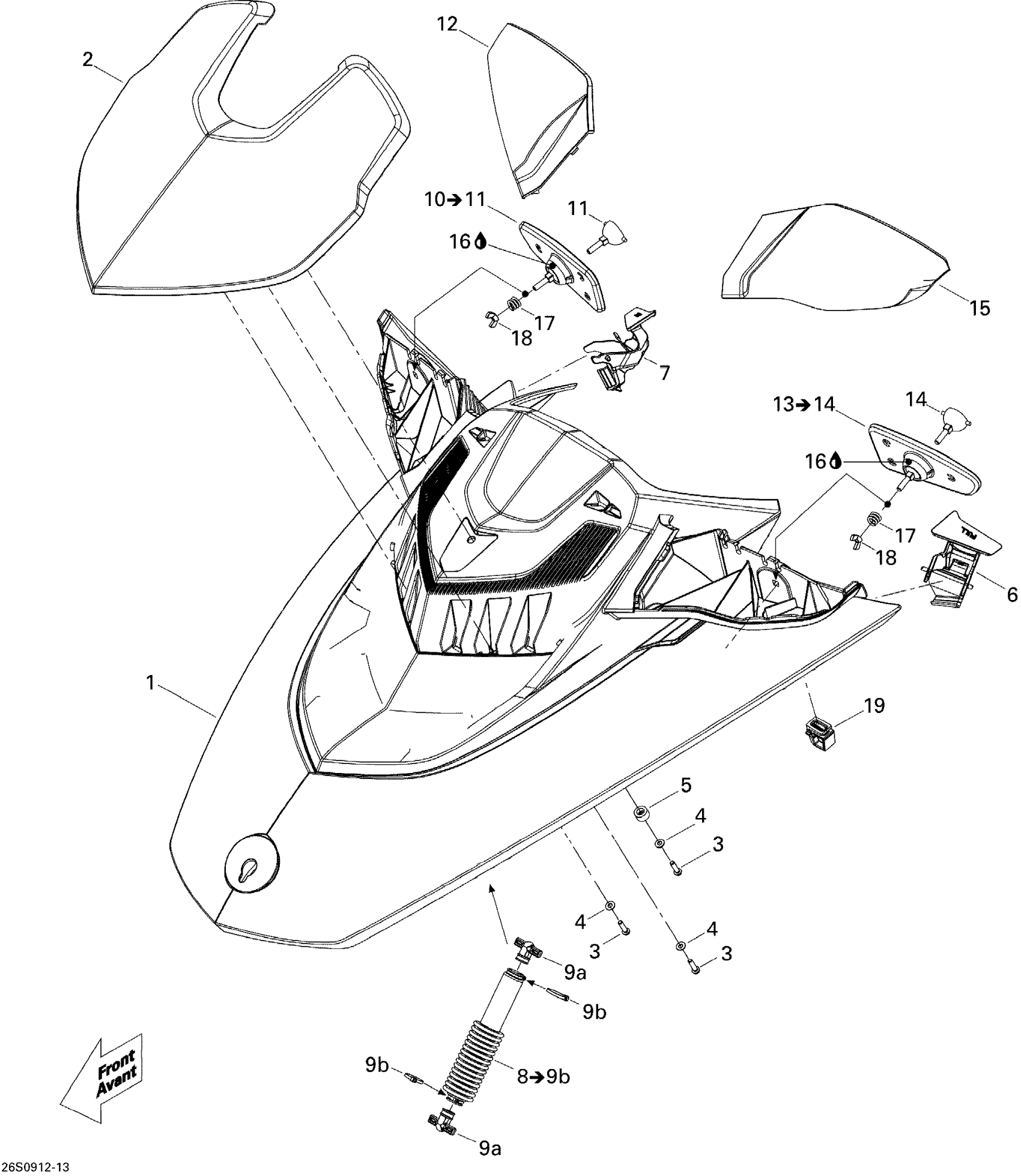

Sea-doo RXT iS 255, 2009 09- Front Cover Diagram

Hood Ass'y Kit This part replaces 269501735.

Front Upper Deflector, Yellow

Hex. Flange Screw K40 X 16

Flat Washer 4 mm, Stainless

Spacer

Left Latch

Right Latch

Shock Absorber | Includes 150 to 150d

Shock Absorber End Fitting

Tie Wrap 94 mm | 4X4

RH Mirror Ass'y

MIRROR BALL JOINT - Call your local BRP dealership

RH MIRROR HOUSING, YELLOW - Call your local BRP dealership

LH Mirror Ass'y

MIRROR BALL JOINT - Call your local BRP dealership

LH MIRROR HOUSING, YELLOW - Call your local BRP dealership

Synthetic Grease, 400 G

Mirror Spring

WING NUT M6 - Call your local BRP dealership

Rubber Bumper
