Partiron

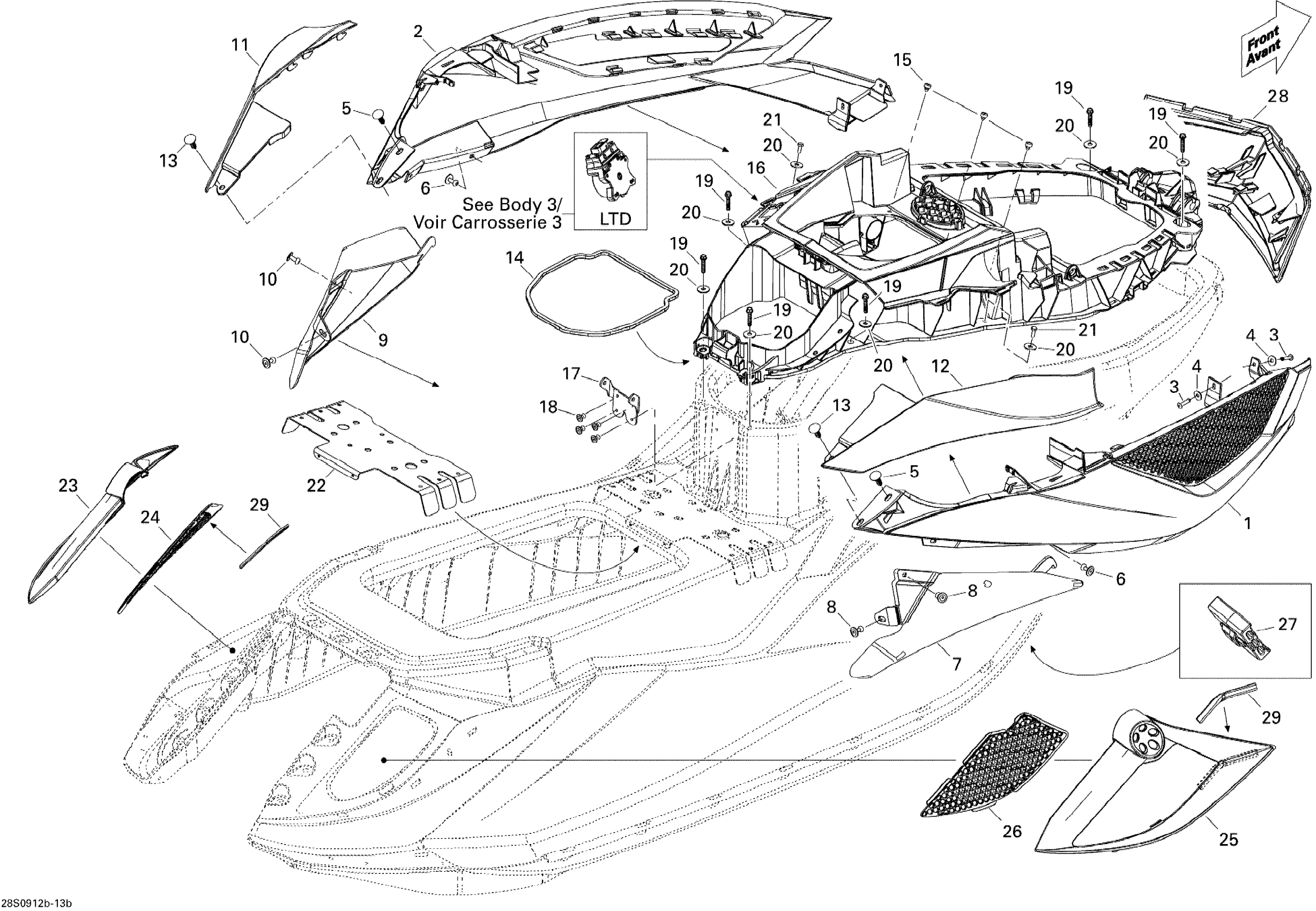

Sea-doo RXT iS 255, 2009 Body, Rear View 2 Diagram

#

Description
Price

1

RH FRONT MOULDING ASS'Y - Call your local BRP dealership

291003291

Unavailable

2

LH FRONT MOULDING ASS'Y - Call your local BRP dealership

291003292

Unavailable

3

Pop Rivet 3/16"

293150014

$1.09

4

Flat Washer 5 mm, Stainless

234052600

$0.77

5

Black, Dart

293730006

$0.99

6

Pop Rivet 3/16"

293150123

$4.29

7

RH Seat Pad, Black | GTX iS LTD

291002596

Unavailable

8

Pop Rivet 3/16"

293150123

$4.29

9

LH SEAT PAD - Call your local BRP dealership | GTX iS LTD This part replaces 291002595.

291003986

Unavailable

10

Pop Rivet 3/16"

293150123

$4.29

11

LH UPPER BODY CAP COVER, YELLOW - Call your local BRP dealership

291002645

Unavailable

12

RH UPPER BODY CAP COVER, YELLOW - Call your local BRP dealership

291002648

Unavailable

13

Black, Dart

293730006

$0.99

14

NEOPRENE SEAL - Call your local BRP dealership

293250200

Unavailable

15

Rubber Bumper

293830005

$8.09

16

Front Module

291004595

$279.99

17

SEAT PIVOT - Call your local BRP dealership

291002865

Unavailable

18

Pop Rivet 3/16"

293150123

$4.29

19

Plastite Hex. Screw M6.8 X 35

243163560

$4.44

20

Flat Washer 8 mm, Stainless

234082600

$2.43

21

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.15

22

LOWER CENTRAL REINFORCEMENT - Call your local BRP dealership

291003306

Unavailable

23

LH LATERAL REAR TRIM - Call your local BRP dealership

291002739

Unavailable

24

LH Rear Side Grille

291002740

$20.99

25

RH Lateral Rear Trim

291002741

$26.49

26

RH Rear Side Grille

291002742

$20.99

27

Tie-Rap Mount

293750025

$1.25

28

FRONT GRID - Call your local BRP dealership

269501797

$28.99

29

Gasket, Neoprene 2000Mm Long

219704476

$15.36
