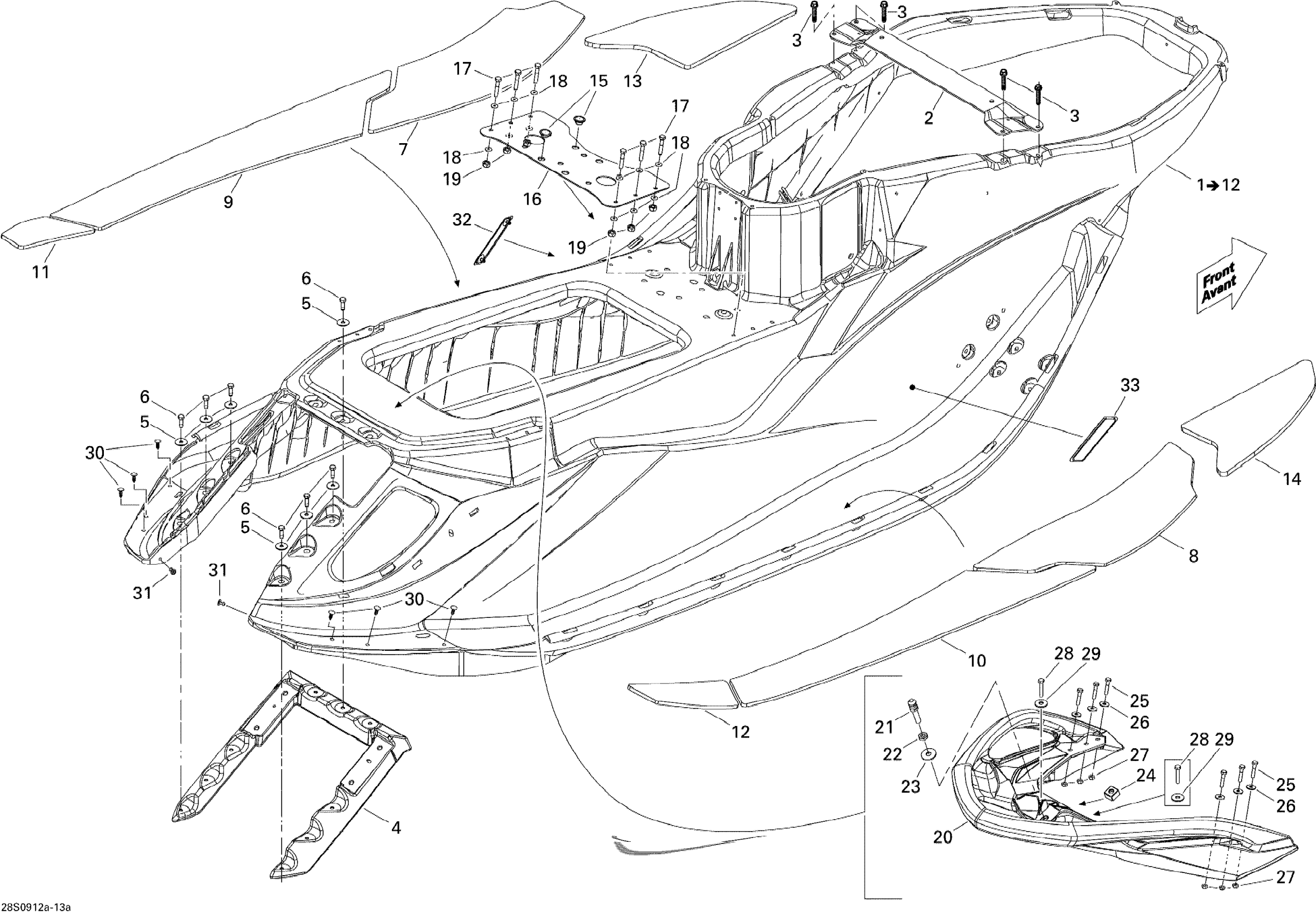

Sea-doo RXT iS 255, 2009 Body, Rear View 1 Diagram

#

Description
Price

1

Upper Body Ass'y

291003462

$2.00

2

Module Stifner

291002778

$144.99

3

Plastite Hex. Screw M6.8 X 35

243163560

$4.44

4

REAR PIVOT ASS'Y - Call your local BRP dealership

279000214

Unavailable

5

Flat Washer M6.6 X 22

250200022

$2.72

6

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

7

Mat Kit - Call your local BRP dealership This part replaces 291002609.

295501187

Unavailable

8

ANTI SLIP MAT CTRL R - Call your local BRP dealership

291002610

Unavailable

9

Mat Kit - Call your local BRP dealership This part replaces 291002609.

295501187

Unavailable

10

Mat Kit - Call your local BRP dealership This part replaces 291002609.

295501187

Unavailable

11

ANTI SLIP MAT REAR L - Call your local BRP dealership

291002775

Unavailable

12

ANTI SLIP MAT REAR R - Call your local BRP dealership

291002776

Unavailable

13

ANTI SLIP MAT FL - Call your local BRP dealership

291002607

Unavailable

14

RH Front Carpet

291002608

$8.47

15

CAP - Call your local BRP dealership

291002950

Unavailable

16

UPPER REINFORCEMENT - Call your local BRP dealership | Model GTX S & iS

291002926

Unavailable

17

Hex. Screw M6 X 25

207162560

$1.47

18

Flat Washer M6.6 X 22

250200022

$2.72

19

Elastic Stop Nut M6, Brass

232561200

$4.23

20

Black, Rear Handle

291004621

$94.49

21

Seat Stud

291003878

$48.99

22

Hex. Jam Nut M10

232100600

$2.22

23

Flat Washer 10 mm, Stainless

234002600

$2.22

24

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

25

Hex. Screw M6 X 30

207063060

$1.89

26

Flat Washer M6, Stainless

234062600

$0.77

27

Elastic Stop Nut M6, Brass

232561200

$4.23

28

Screw Hex. M6 X 35, Scotch Grip

207363560

$1.89

29

Flat Washer 8 mm, Stainless

250200175

$3.06

30

Black, Dart

293730006

$0.99

31

Pop Rivet 3/16"

293150123

$4.29

32

LH FOOTREST COVER - Call your local BRP dealership

291002694

Unavailable

33

RH FOOTREST COVER - Call your local BRP dealership

291002695

Unavailable
