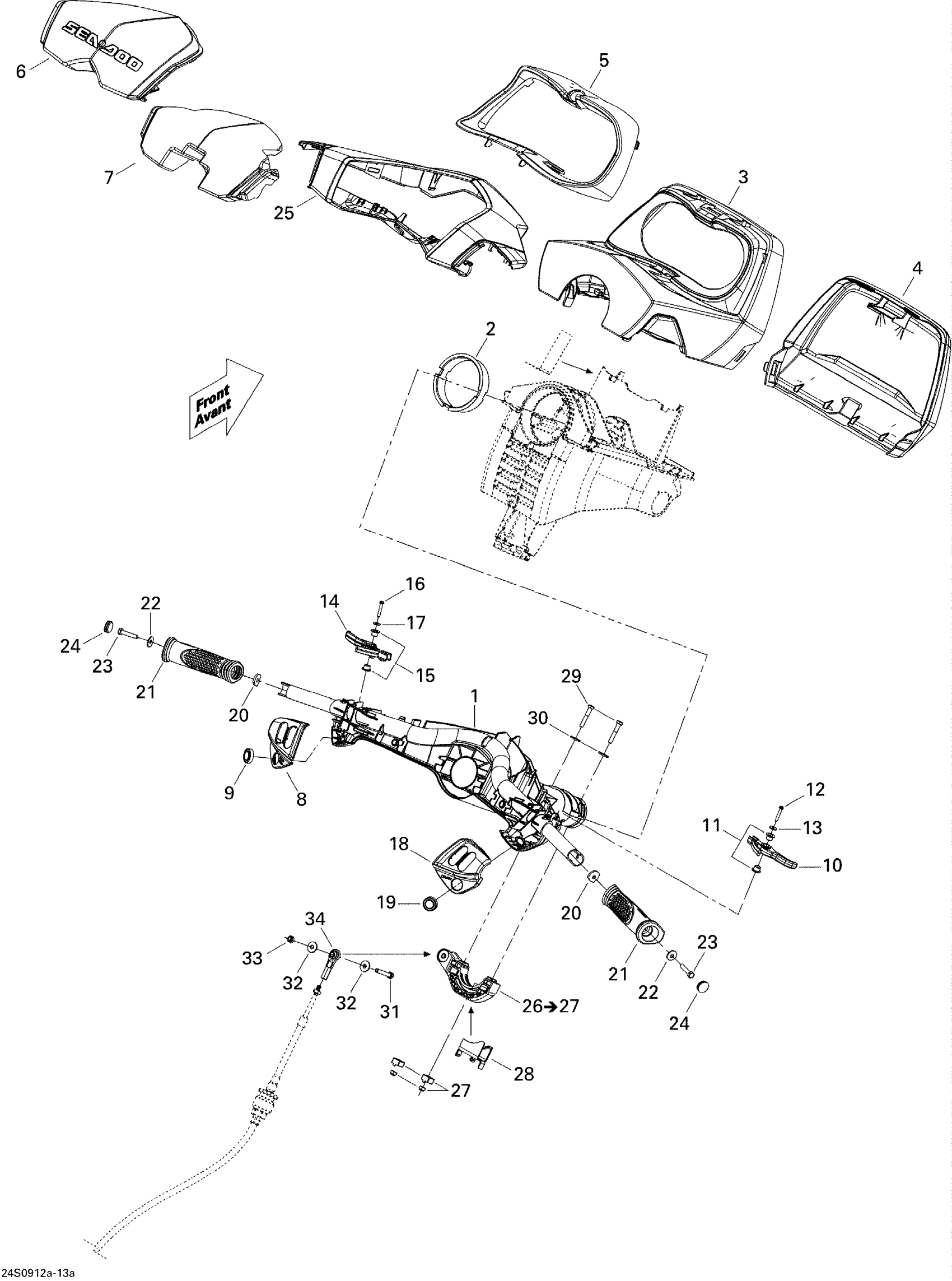

Sea-doo RXT iS 255, 2009 Steering 1 Diagram

#

Description
Price

1

Steering Column

277001963

$381.49

2

Wear Ring

277001653

$12.17

3

Gauge Support

277001953

$61.99

4

Gauge Support Cover

277001613

$28.99

5

Gauge Trim, Black

277001630

$55.99

6

Silver Steering Pad | Model GTS

277001622

$45.99

7

TOP FOAM - Call your local BRP dealership

277001621

Unavailable

8

Housing Cover LH

277001626

$19.99

9

Switch Knob, Red

277001802

$10.59

10

Throttle Handle

277001944

$38.99

11

Bushing

293900091

$4.52

12

Hex. Flange Screw K40 X 25

241142560

$2.64

13

Flat Washer 4 mm, Stainless

234042600

$1.15

14

Reverse Handle

277001945

$43.99

15

Bushing

293900091

$4.52

16

Hex. Flange Screw K40 X 25

241142560

$2.64

17

Flat Washer 4 mm, Stainless

234042600

$1.15

18

Housing Cover RH

277001625

$19.99

19

Knob Switch, Grey

277001803

$6.98

20

Insert Grip Handle

277001863

$8.83

21

Handlebar Grip

277002286

$19.99

22

Flat Washer M6, Stainless

234062600

$0.77

23

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.92

24

Black, Cap

277000203

$9.39

25

Steering Cover | IBR

277001969

$68.99

26

SUPPORT ASS'Y - Call your local BRP dealership | Includes 26 to 27

277001656

Unavailable

27

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

28

Spacer

277001654

$15.99

29

Hex. Screw M6 X 35

207163560

$1.49

30

Flat Washer M6, Stainless

234062600

$0.77

31

Hex. Screw M6 X 40

207064060

$1.69

32

Flat Washer M6, Stainless

234062600

$0.77

33

Elastic Stop Nut M6, Brass

232561200

$4.23

34

Ball Joint

277000775

$51.99
