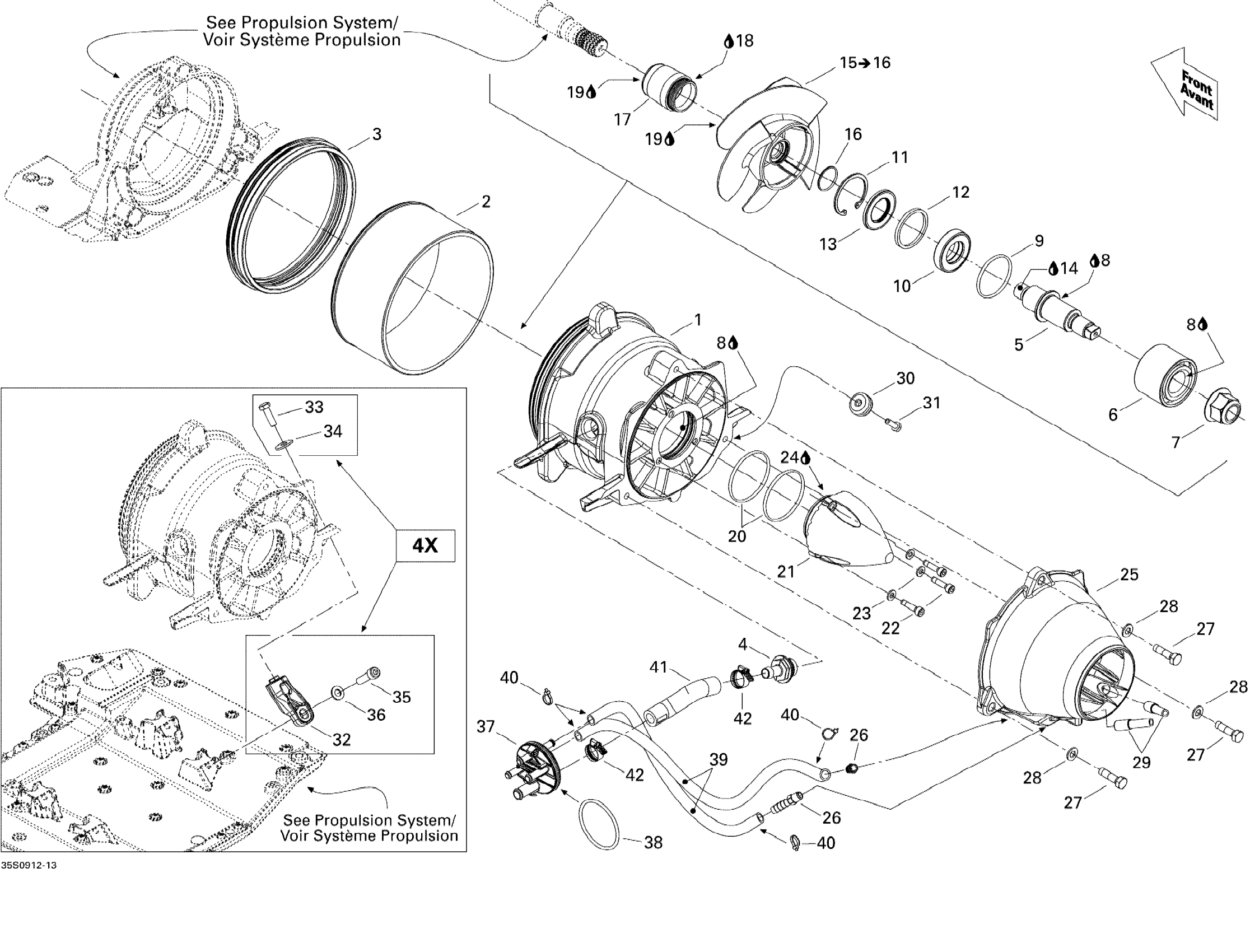

Sea-doo RXT iS 255, 2009 Pump Diagram

#

Description
Price

1

IMPELLER HOUSING - Call your local BRP dealership

267000380

Unavailable

2

Wear Ring

267000372

$79.07

3

Neoprene Seal

293200122

$15.64

4

FITTING - Call your local BRP dealership

267000387

Unavailable

5

Impeller Shaft

267000388

$108.18

6

Angled Bearing This part replaces 267000030.

267000900

$76.09

7

Elastic Flange Nut M20

250100104

$11.15

8

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

9

O-Ring

293300090

$6.85

10

Seal

271002071

$30.57

11

Circlip

293370038

$8.18

12

Spacer

271001393

$7.03

13

Oil Seal

293200089

$17.88

14

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

15

Impeller Ass'y | Includes 15 to 16 This part replaces 267000507.

267000974

$462.66

16

O-Ring

293300114

$14.90

17

Guard

271002228

$11.31

18

Était Was 293800050 Loctite 577, 250 ml

219704459

$104.99

19

Synthetic Grease, 400 G

293550010

Unavailable

20

O-Ring

293300086

$3.33

21

Impeller Cover

267000428

$16.39

22

Socket Head Screw M6 X 25, Scotch Grip

205562560

$1.96

23

Stainless Flat Washer M6

234061600

$0.28

24

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

25

VENTURI ASS'Y - Call your local BRP dealership | Includes 25 to 26

267000503

Unavailable

26

MALE CONNECTOR - Call your local BRP dealership

293710017

Unavailable

27

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.78

28

Stainless, Flat Washer 8 mm

234081600

$0.52

29

Siphon Tube

271001133

$8.09

30

Anode Zinc

271001813

$15.64

31

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.40

32

ADAPTOR - Call your local BRP dealership

267000482

Unavailable

33

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.27

34

Flat Washer 8 mm, Stainless

234082600

$2.27

35

Socket Head Screw M8 X 30, Scotch Grip

205583060

$3.31

36

Flat Washer M8.5 x 18

293050001

$1.48

37

Fitting Plate

267000474

$11.22

38

O-Ring

267000477

$6.22

39

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$31.31

40

Tie Wrap 94 mm | 4X4

293750001

$0.96

41

Formed Hose This part replaces 267000606.

267001040

$15.64

42

Tridon Gear Clamp

293650172

$3.07
